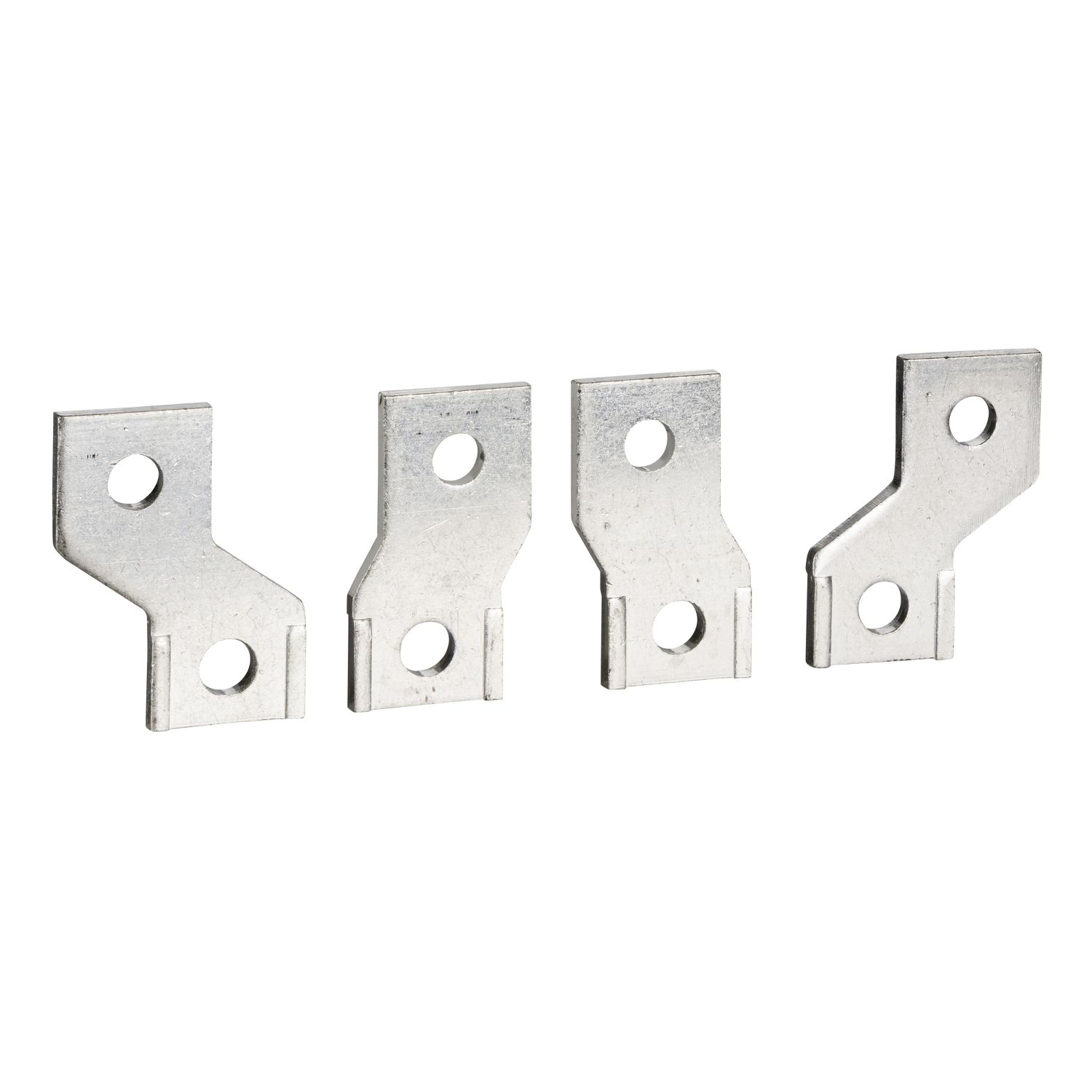

Picture of Terminal extensions, ComPacT NSX 100/160/250, spreaders 35mm to 45mm pitch, set of 4 parts
SKU:

LV431564

Terminal extensions, ComPacT NSX 100/160/250, spreaders 35mm to 45mm pitch, set of 4 parts

$106.90
Available for Shipping : 24-Nov-2024
Product Selector
Terminal extensions, ComPacT NSX 100/160/250, spreaders 35mm to 45mm pitch, set of 4 parts
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
  • Meet your needs with flexibility to achieve system efficiency during the design phase
  • ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters
  • Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection
  • Multiple international standards certificated
  • Green Premium with recognized environmental claims
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
These accessories are spreaders for 3 poles Compact NSX 100/160/250 and EasyPact CVS 100/160/250. They are screwed to the circuit-breaker terminals to increase the pitch between poles from 35mm to 45mm. The rated current is up to 250 A. These spreaders are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 4 parts.

Products specifications

Attribute name Attribute value
Main
Mounting position straight
Quantity per set 4
Poles description 4P
Range ComPacT
Product or component type spreader
Accessory / separate part category connection accessory
Range compatibility ComPact Compact INV100...250, ComPact INS250, EasyPact EasyPact CVS250, EasyPact EasyPact CVS160, EasyPact EasyPact CVS100, ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Range of product ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Complementary
[In] rated current 250-250 A
Connection pitch 45 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.200 cm
Package 1 Width 2.000 cm
Package 1 Length 12.200 cm
Package 1 Weight 290.500 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 8.900 cm
Package 2 Width 15.000 cm
Package 2 Length 22.500 cm
Package 2 Weight 1.227 kg
Unit Type of Package 3 3
Number of Units in Package 3 60
Package 3 Height 30.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 19.180 kg
