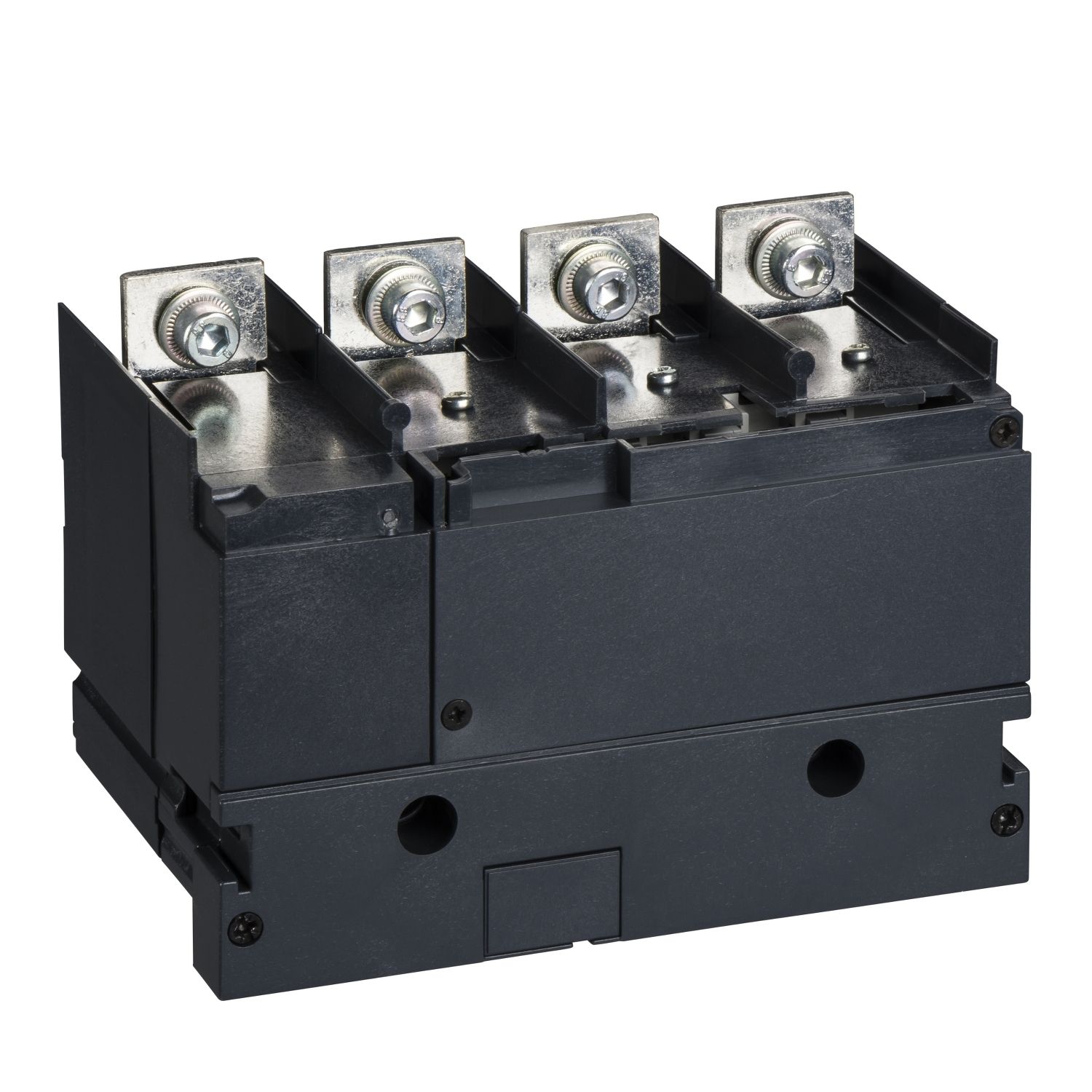

Picture of current transformer module with voltage output, ComPact NSX250, 250A rating, 4 poles
SKU:

LV431570

current transformer module with voltage output, ComPact NSX250, 250A rating, 4 poles

Old price: $1,377.20 INC GST
$1,126.55 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
current transformer module with voltage output, ComPact NSX250, 250A rating, 4 poles
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Instruction sheet
Environmental Disclosure
User guide
Circularity Profile
Product Page Link
Product Data Sheet
This is an additional current transformer module of 250A rating with voltage measurement output for 4 poles ComPact NSX250 devices. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 250A and the operational voltage is 530 VAC 50/60 Hz. The current at the secondary winding is 5A. The power consumption is 1.1VA. The class accuracy is 1. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.

Products specifications

Attribute name Attribute value
Main
Device short name CT module and voltage output
Device application control
Poles description 4P
Accuracy class class 1
Current transformer ratio 250/5 A
Power consumption in VA 1.1 VA
Range ComPacT
Product or component type current transformer
Range compatibility ComPact Compact INV100...250, ComPact INS250, ComPact ComPact NSX250
[In] rated current 250 A
Range of product ComPact NSX100...250
Complementary
Auxiliary connection terminal cable connector 2.5-2.5 mm²
[Ue] rated operational voltage 530 V
Network type AC
Network frequency 50/60 Hz
Environment
Electrical shock protection class class II
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK04 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.5 cm
Package 1 Width 14.5 cm
Package 1 Length 17.5 cm
Package 1 Weight 1.115 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.947 kg
