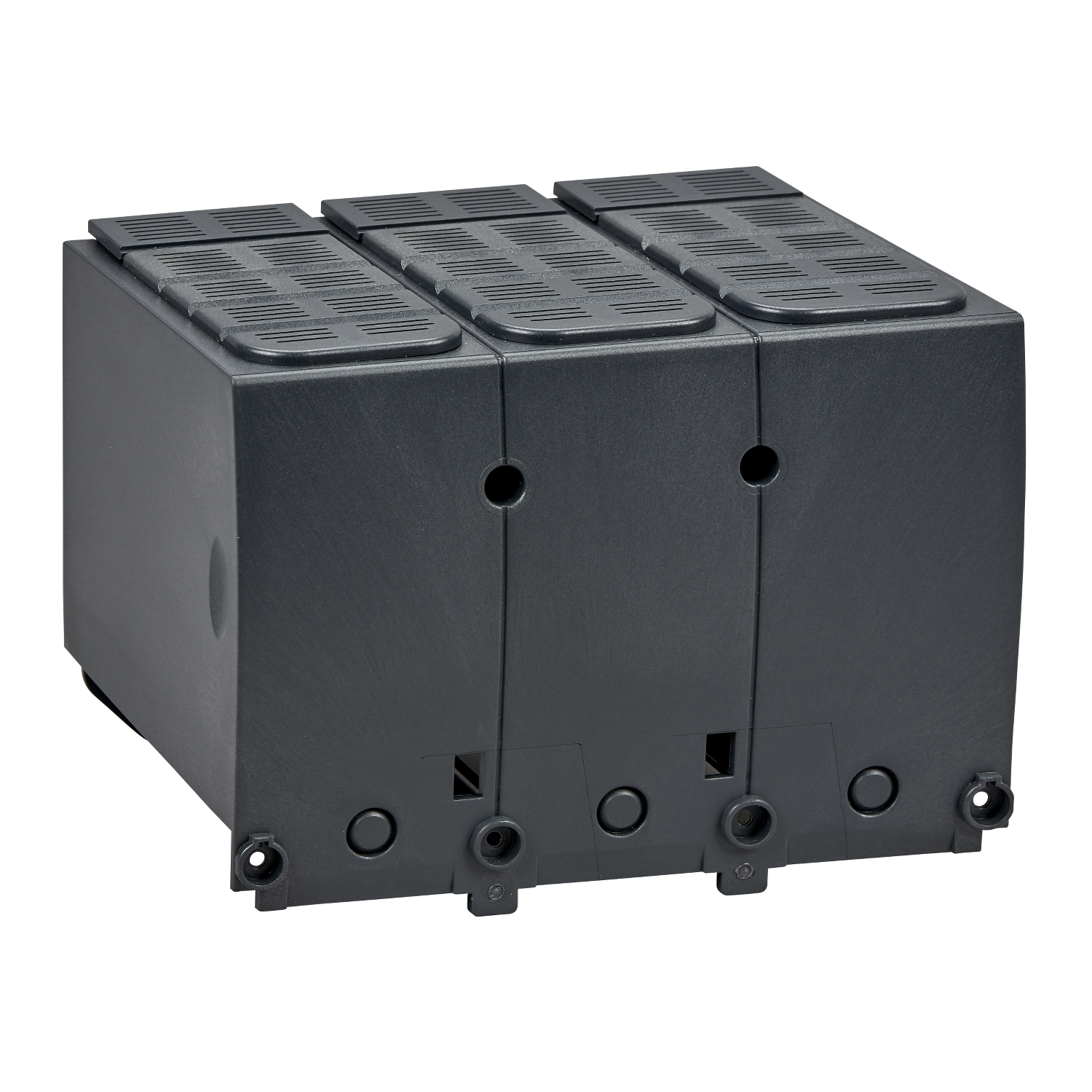

Picture of ComPacT, Long terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles
SKU:

LV432593

ComPacT, Long terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles

$120.19
Available for Shipping : 24-Nov-2024
Product Selector
ComPacT, Long terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
  • Meet your needs with flexibility to achieve system efficiency during the design phase
  • ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters
  • Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection
  • Multiple international standards certificated
  • Green Premium with recognized environmental claims
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This is an insulation accessory for 3 poles Compact NSX 400/630 or EasyPact CVS 400/630. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 45mm. It provides IP40 degree of protection and IK07 mechanical impact protection.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type insulation accessories
Quantity per set 1
Poles description 3P
Range ComPacT
Product or component type long terminal shield
Range compatibility PowerPact PowerPact L, EasyPact EasyPact CVS630, EasyPact EasyPact CVS400, ComPact ComPact NSX630, ComPact ComPact NSX400, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation
Range of product ComPact NSX400...630, ComPacT NSX400...630 new generation
Complementary
Compatibility code terminal shields
IP degree of protection IP40 conforming to IEC 60529
Connection pitch 45 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 11.000 cm
Package 1 Length 17.000 cm
Package 1 Weight 251.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.900 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 50.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 36.056 kg
