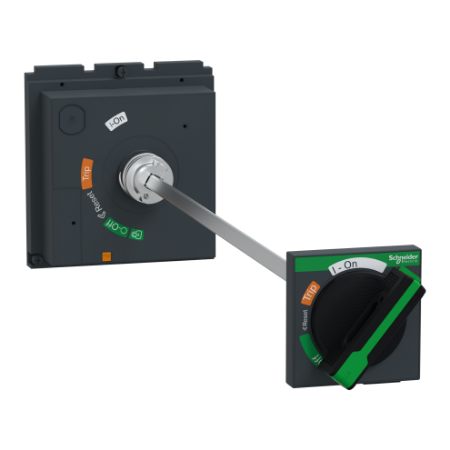

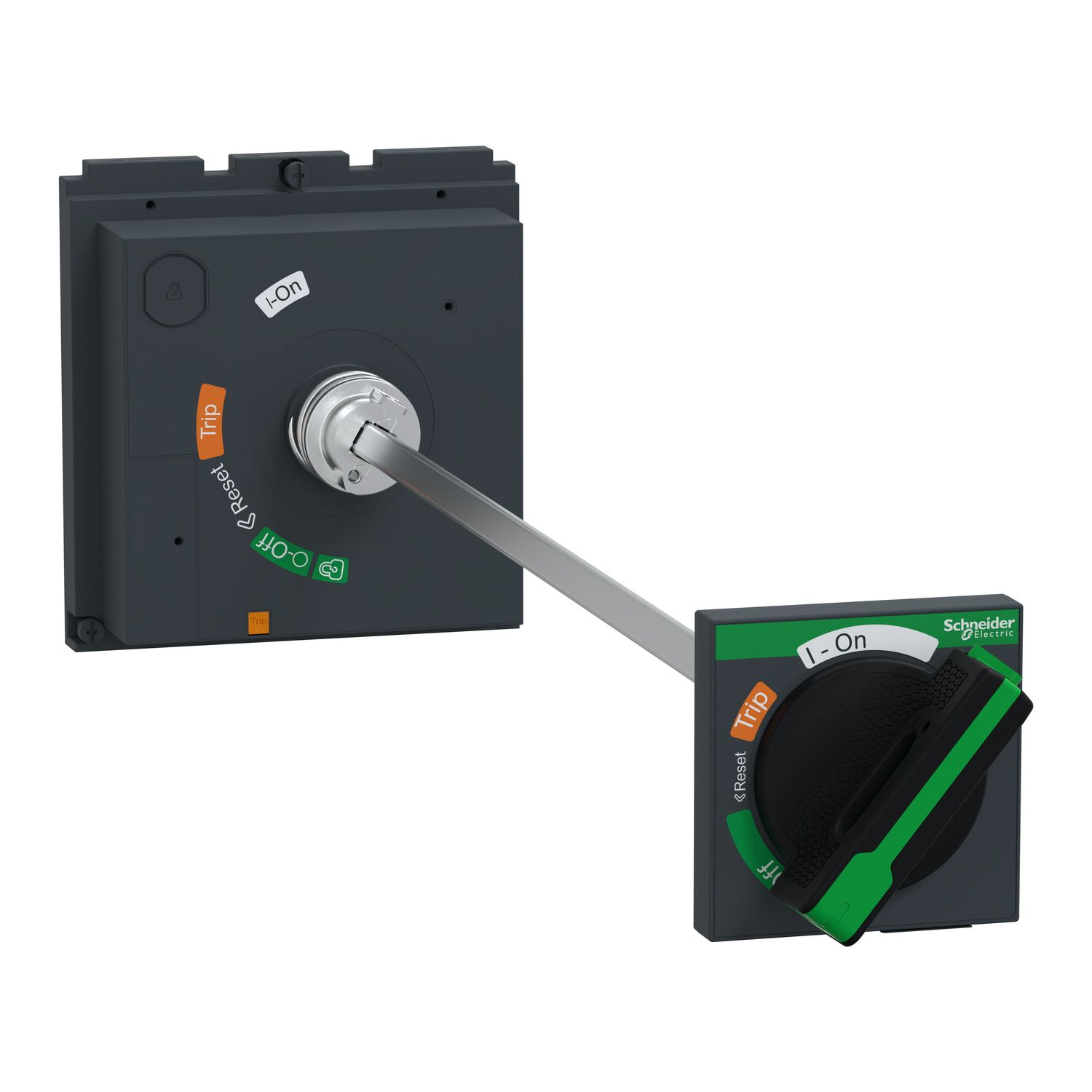

Picture of Extended rotary handle, ComPacT NSX400/630, black handle, shaft length 209mm to 600mm, IP55
SKU:

LV432598T

Extended rotary handle, ComPacT NSX400/630, black handle, shaft length 209mm to 600mm, IP55

$436.88
Available for Shipping : 17-Nov-2024
Extended rotary handle, ComPacT NSX400/630, black handle, shaft length 209mm to 600mm, IP55
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Instruction sheet
Product environmental
User guide
Catalogue
Product Page Link
Product Data Sheet
It is an extended rotary handle for ComPacT NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Products specifications

Attribute name Attribute value
Main
Range of product ComPacT NSX400...630 new generation
Rotary handle mounting style extended
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour black
Handle front plate colour black
Complementary
Compatibility code extended rotary handle
Rotary handle mounting location front
Rotary handle padlocking padlock in OFF position, 1 to 3 padlocks
Range compatibility PowerPact PowerPact Multistandard, EasyPact EasyPact CVS630, EasyPact EasyPact CVS400, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation
Environment
IP degree of protection IP55
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 16.000 cm
Package 1 Length 48.500 cm
Package 1 Weight 905.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 5.480 kg
Unit Type of Package 3 3
Number of Units in Package 3 60
Package 3 Height 105.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 75.852 kg
