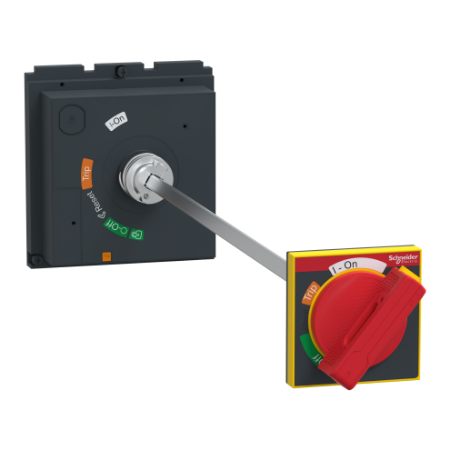

Picture of Extended rotary handle, ComPacT NSX400/630, red handle/yellow front, shaft length 209mm to 600mm, IP55
SKU:

LV432600T

Extended rotary handle, ComPacT NSX400/630, red handle/yellow front, shaft length 209mm to 600mm, IP55

$488.04
Extended rotary handle, ComPacT NSX400/630, red handle/yellow front, shaft length 209mm to 600mm, IP55
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
End of life manual
Instruction sheet
Product environmental
User guide
Catalogue
Product Page Link
Product Data Sheet

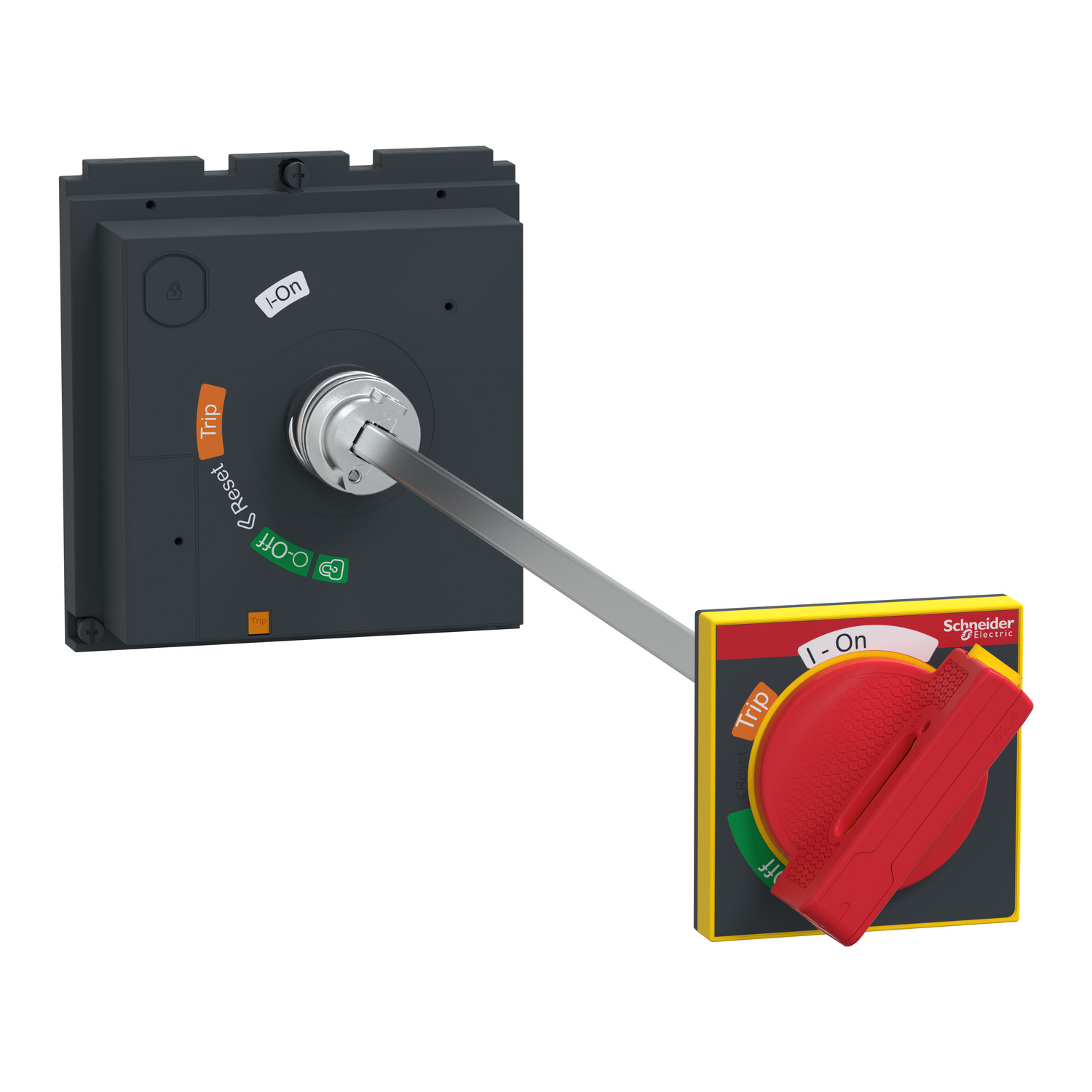

It is an extended rotary handle for ComPacT NSX 400/630 and PowerPact Multistandard L frames devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a red handle on yellow front. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Products specifications

Attribute nameAttribute value
Main
Range of productComPacT NSX400...630 new generation
Rotary handle mounting styleextended
Accessory / separate part typecontrol accessories
Product or component typerotary handle
Handle colourred
Handle front plate colouryellow
Complementary
Compatibility codeextended rotary handle
Rotary handle mounting locationfront
Rotary handle padlockingpadlock in OFF position, 1 to 3 padlocks
Range compatibilityTeSys TeSys GV6, PowerPact PowerPact Multistandard, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation
Environment
IP degree of protectionIP55
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height10.000 cm
Package 1 Width16.000 cm
Package 1 Length48.500 cm
Package 1 Weight948.000 g
Unit Type of Package 22
Number of Units in Package 25
Package 2 Height30.000 cm
Package 2 Width40.000 cm
Package 2 Length60.000 cm
Package 2 Weight5.480 kg
Unit Type of Package 33
Number of Units in Package 360
Package 3 Height102.000 cm
Package 3 Width80.000 cm
Package 3 Length120.000 cm
Package 3 Weight78.000 kg
