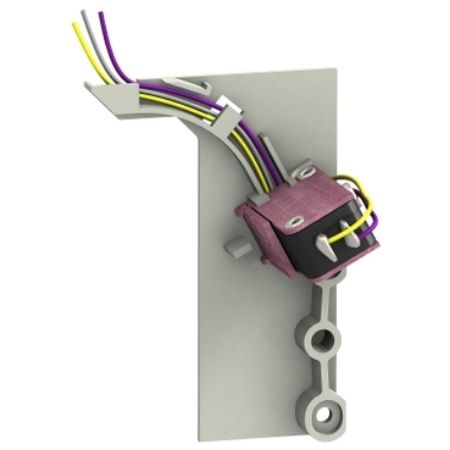

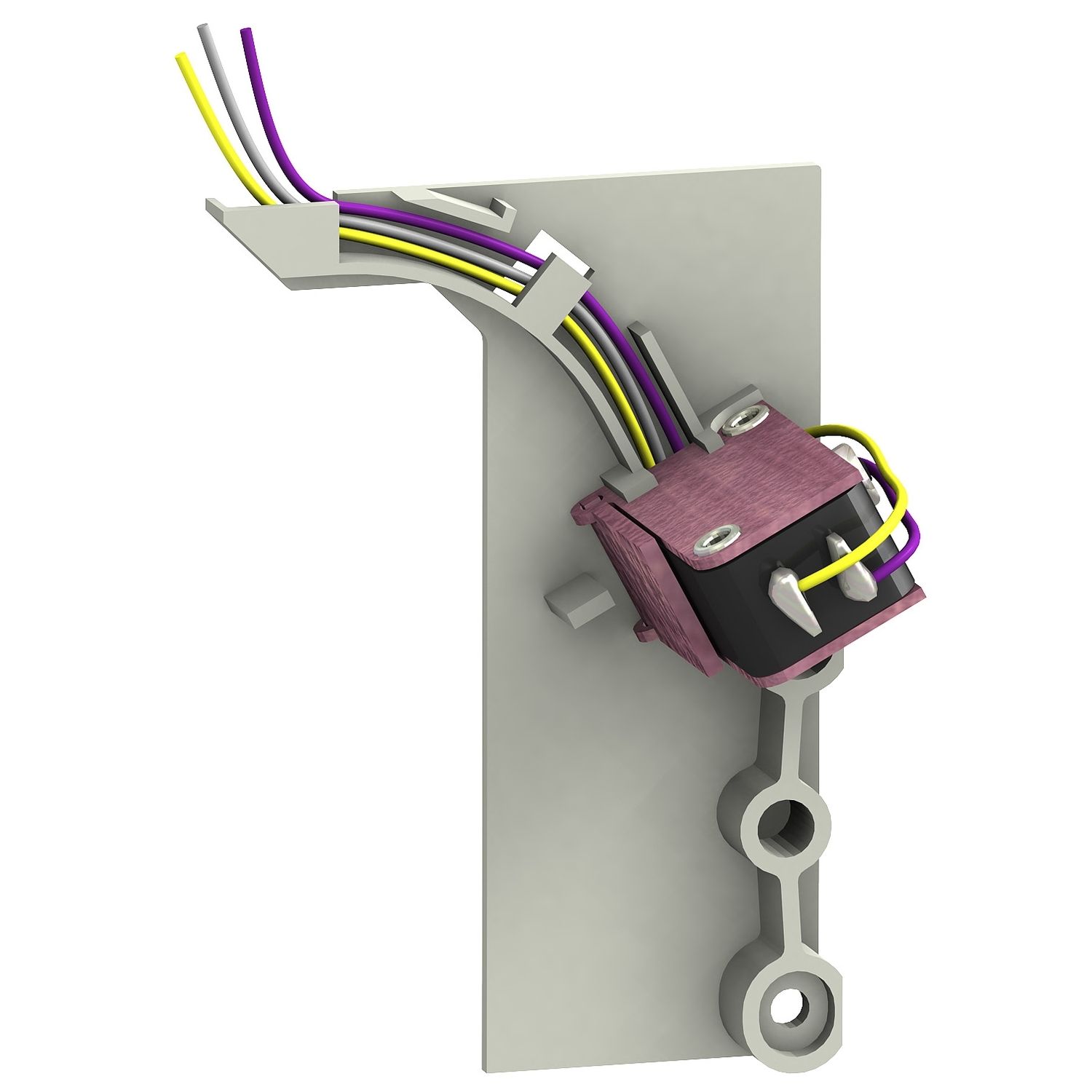

Picture of standard early break contact, ComPact NSX400 to NSX630, rotary handle position CAO, 1 changeover contact type
SKU:

LV432605

standard early break contact, ComPact NSX400 to NSX630, rotary handle position CAO, 1 changeover contact type

Old price: $122.98 INC GST
$100.60 INC GST
Available for Shipping : 12-Jan-2026
standard early break contact, ComPact NSX400 to NSX630, rotary handle position CAO, 1 changeover contact type
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet
it is a single early break contact that indicates the position of the rotary handle for Compact NSX 400/630 and PowerPact Multistandard L circuit breakers. An early break contact (CAM), in conjunction with a rotary handle, can be used to anticipate device opening. The contact fits into the rotary handle unit. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. utilization categories are AC12/AC15/DC12/DC14. Compact NSX and PowerPact chassis can be equipped with 1 early break contact. It complies with IEC 60947-5-1 standard.

Products specifications

Attribute name Attribute value
Main
Device short name early-break contact
Device application control
Range ComPacT
Product or component type auxiliary contact
Range compatibility PowerPact PowerPact L, ComPact Compact NSX630 DC, ComPact Compact NSX400 DC, ComPact ComPact NSX630, ComPact ComPact NSX400
Range of product ComPact NSX400...630 DC, ComPact NSX400...630
Complementary
Minimum load 100 mA at 24 V DC
[Ie] rated operational current DC-14: 1 A at 24 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.03 A at 250 V DC, DC-12: 6 A at 24 V DC, DC-12: 2.5 A at 48 V DC, DC-12: 0.6 A at 110 V DC, DC-12: 0.3 A at 250 V DC, AC-15: 6 A at 48 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 110 V AC 50/60 Hz
Auxiliary contacts type standard
Mounting mode drawout
[Ith] conventional free air thermal current 6 A
Auxiliary contacts operation early-break
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.000 cm
Package 1 Width 6.300 cm
Package 1 Length 8.100 cm
Package 1 Weight 50.000 g
Unit Type of Package 2 2
Number of Units in Package 2 108
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.800 kg
