Picture of Mounting plate, Linergy BZ, Platine Compact NSX 400-630 3P IEC/UL for 60 Busbars Interaxis
SKU:

LV432623

Mounting plate, Linergy BZ, Platine Compact NSX 400-630 3P IEC/UL for 60 Busbars Interaxis

$404.54 INC GST
Available for Shipping : 11-May-2025
Mounting plate, Linergy BZ, Platine Compact NSX 400-630 3P IEC/UL for 60 Busbars Interaxis
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet

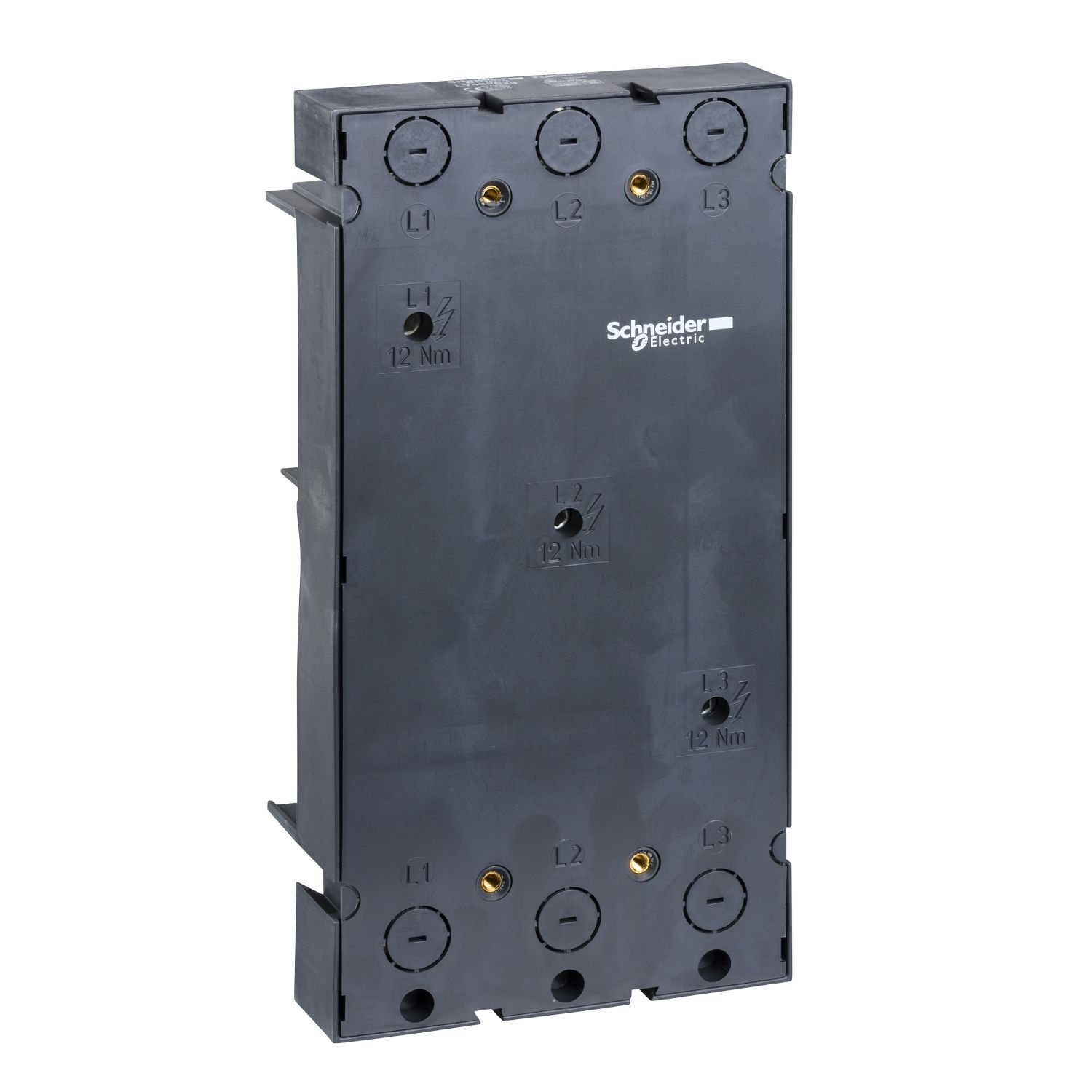

The NSX mounting plate system for busbar simplifies the installation of 3 poles NSX 400-630 circuit breaker. Power distribution is performed by a busbar. The mounting plate is fitted directly on the busbar, by snap-on-mounting. thus implementing mechanical and electrical connection. The busbar interaxis is 60 mm. Depending on the cross section of the bars, the busbar associated to terminals can withstand a maximum current of 630A. This system offers numerous benefits as space saving in cabinets and easy connection. This system also offer fast, safe and reliable electrical and mechanical connection. This system also offer IP20 protection by using busbars and end covers. This system also offer easier maintenance and equipment flexibility and modularity.

Products specifications

Attribute name Attribute value
Main
Device short name LA9Z
Number of ways 1 way
Range Linergy
Product name BZ
Product or component type adaptors for busbar systems
Range of product TeSys
Complementary
Product compatibility PowerPact NL, NSX400...630
Depth 63 mm
Range compatibility ComPact, Spacial, Prisma PH, Prisma P, Prisma G
Width 139 mm
Colour anthracite grey
Poles description 3P
[Ui] rated insulation voltage 690 V
Permissible current 630 A - busbar cross section: 30 x 10 mm, 520 A - busbar cross section: 20 x 10 mm, 360 A - busbar cross section: 12 x 10 mm, 450 A - busbar cross section: 30 x 5 mm, 400 A - busbar cross section: 25 x 5 mm, 320 A - busbar cross section: 20 x 5 mm, 250 A - busbar cross section: 15 x 5 mm, 200 A - busbar cross section: 12 x 5 mm
Height 270 mm
Busbar pitch 60 mm
Environment
IP degree of protection IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 14.500 cm
Package 1 Length 31.500 cm
Package 1 Weight 2.076 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 13.281 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 63.140 kg
