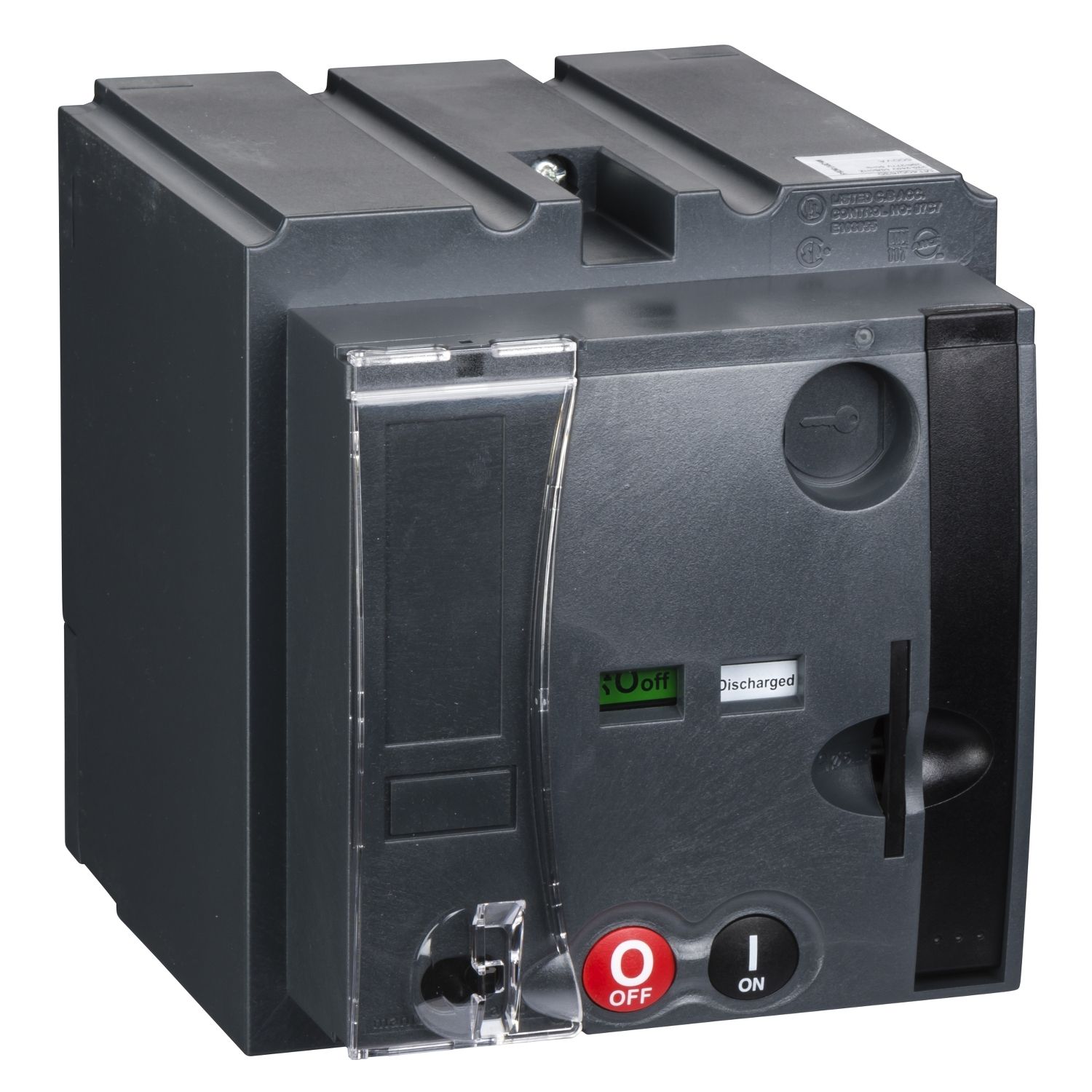

Picture of Standard motor mechanism module MT400/630, ComPacT NSX400/630, 220/240VAC 50/60Hz, 208/277VAC 60Hz
SKU:

LV432641

Standard motor mechanism module MT400/630, ComPacT NSX400/630, 220/240VAC 50/60Hz, 208/277VAC 60Hz

$3,953.71
Available for Shipping : 25-Nov-2024
Standard motor mechanism module MT400/630, ComPacT NSX400/630, 220/240VAC 50/60Hz, 208/277VAC 60Hz
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
User guide
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This is a communicating motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible.

Products specifications

Attribute name Attribute value
Main
Device short name MT400/630
Device application automatic spring charging
Mounting mode fixed
Control type standard
Range ComPacT
Range of product ComPact NSX400...630 DC, ComPact NSX400...630, ComPacT NSX400...630 DC new generation, ComPacT NSX400...630 new generation
[In] rated current 630 A, 400 A
Product or component type motor mechanism
Range compatibility ComPact ComPacT NSX DC new generation NSX630 DC, ComPact ComPacT NSX DC new generation NSX400 DC, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation
[Uc] control circuit voltage 220...240 V AC 50/60 Hz, 208...277 V AC 60 Hz
Complementary
Control signal type maintained, impulse
Locking options description 1 to 3 padlocks Ø 5 to Ø 8, padlocking in OFF position
Maximum power consumption in VA 500 VA opening, 500 VA closing
Maximum operating frequency 4 per minute
Response time < 80 ms closed, < 700 ms open
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.800 cm
Package 1 Width 17.500 cm
Package 1 Length 17.500 cm
Package 1 Weight 3.150 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 19.654 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 50.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 90.616 kg
