Picture of IFM Modbus SL interface module, Enerlin'X
SKU:

LV434000

IFM Modbus SL interface module, Enerlin'X

$804.38
IFM Modbus SL interface module, Enerlin'X
  • Live collection of Masterpact, Compact and PowerPact circuit breaker data
  • Alarms and pre-alarms for remote notification
  • Ability to remotely control the circuit breakers
  • Plug and play thanks to the ULP
  • Build-in test function
  • Single software for commissioning and firmware updates with EcoStruxure Power Commission
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
End of life manual
Catalogue
User guide
Instruction sheet
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet

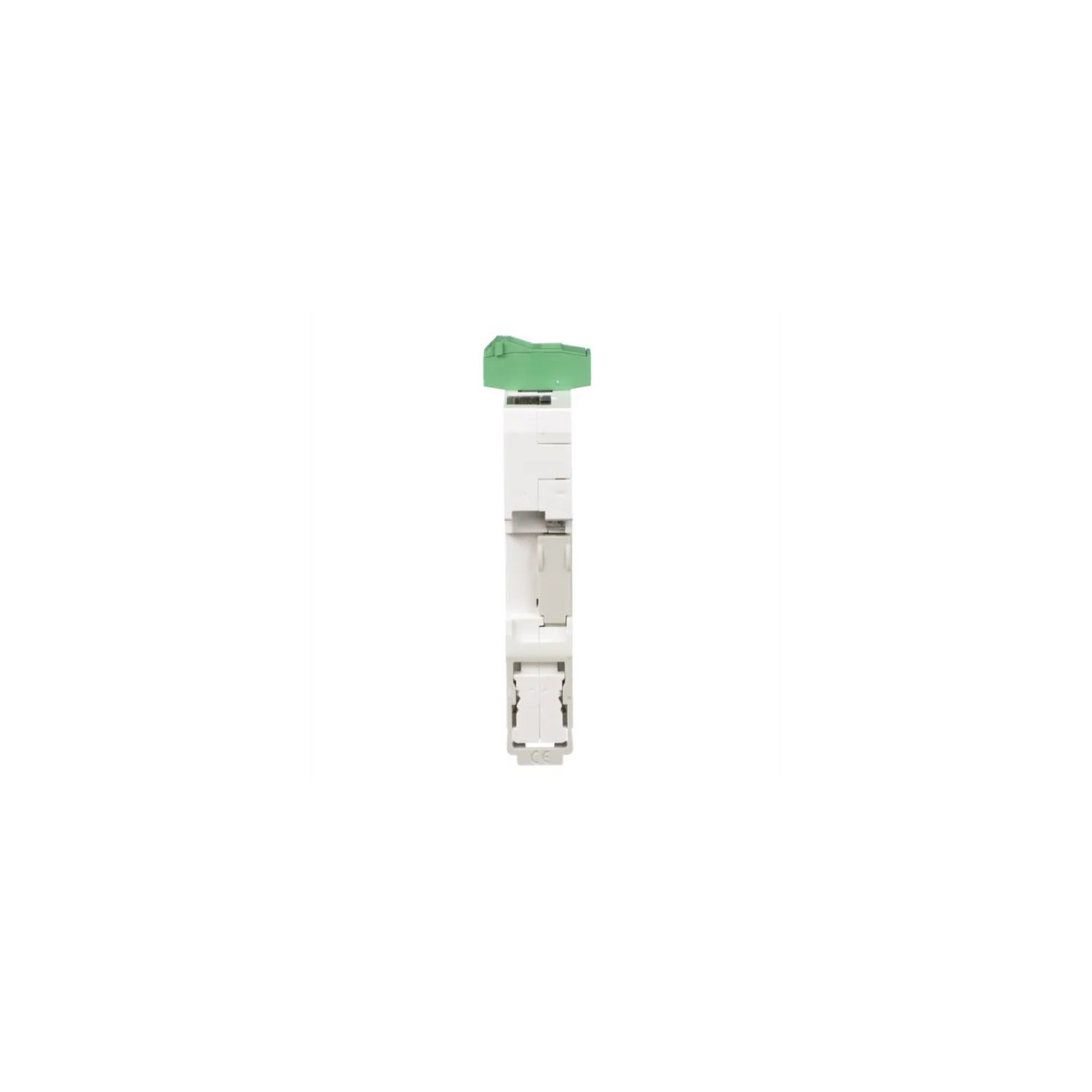

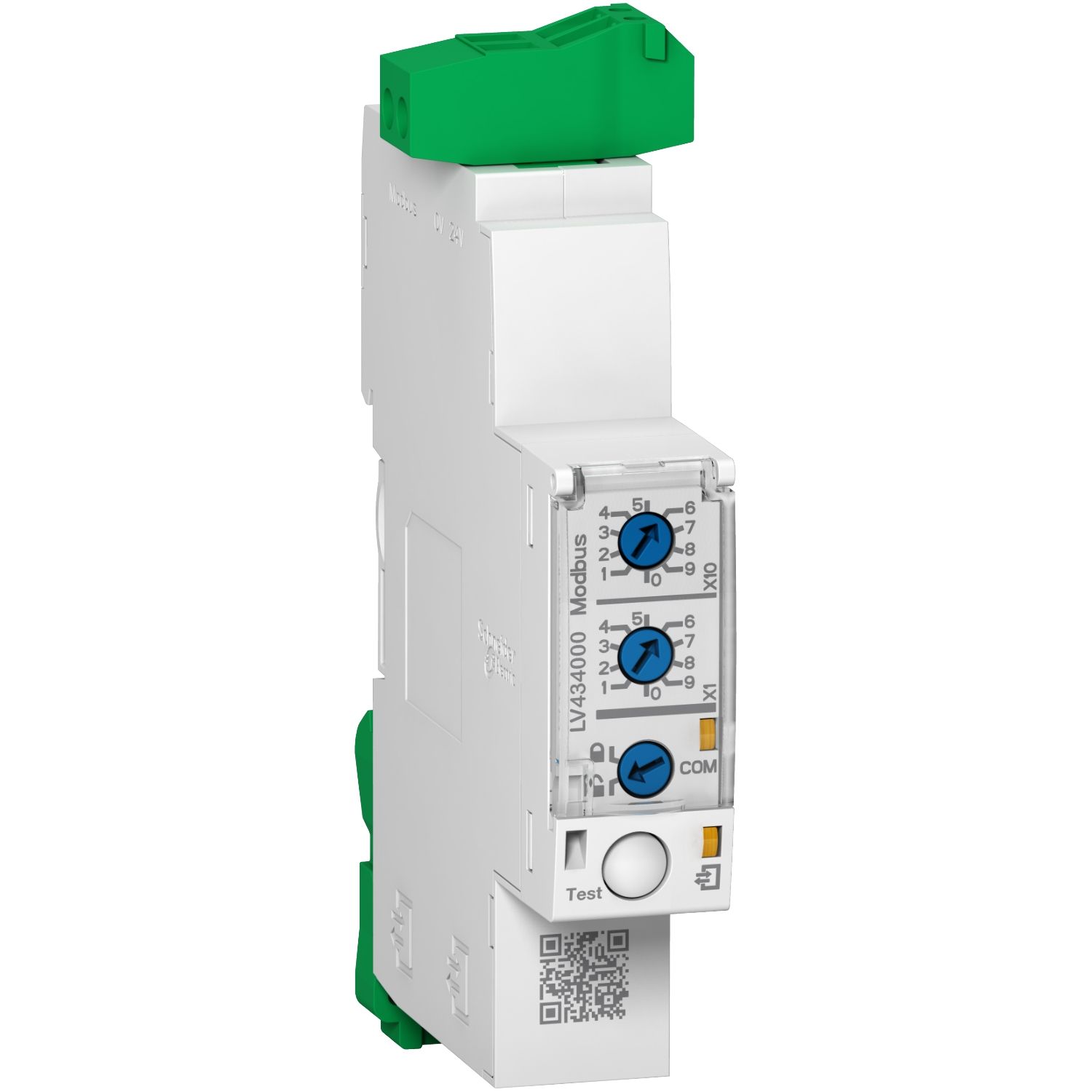

This IFM is a Modbus interface module, and it is part of EnerlinX communication system. It is required for connection of Masterpact, Compact and PowerPact circuit breakers to a Modbus Serial Line network. Once connected, the circuit breaker is considered as a slave by the Modbus master. The Modbus address is easily set with two rotary switches on its front face. It is equipped on the top with one 24VDC screw clamp terminal block and one RJ45 socket for Modbus Serial line. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFM interface is a DIN rail mounting device and its dimensions are 18mm x 72mm x 96mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFM interface is entirely part of the EcoStruxure Power architecture. The IFM interface firmware can be updated using EcoStruxure Power Commission software.

Products specifications

Attribute nameAttribute value
Main
Range compatibilityPowerPact PowerPact R, PowerPact PowerPact P, PowerPact PowerPact H, PowerPact PowerPact L, PowerPact PowerPact J, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, ComPact ComPact NSX, Masterpact MasterPact NW, Masterpact MasterPact NT, Masterpact MasterPact MTZ
Device short nameIFM
RangeEnerlin'X
Range of productComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630, ComPact NSX100...250
Product or component typeinterface module
Complementary
Compatibility codeIFM
Output voltage24 V DC
Height109 mm
Accuracy classclass 2 power supply
Current consumption30 mA 24 V DC room temperature
Net weight120 g
Product certificationsFCC, CE, cULus, EAC
Input voltage24 V DC - 20...10 %
Mounting modeby clips
Communication network typeModbus, Modbus Serial line slave9.6...38.4 kbauds on 1 RJ45, Universal Logic Plug on 2-port RJ45
Power consumption in W1.635 W
Depth73 mm
Width18 mm
Memory typeEEPROM data storage
Mounting support35 mm DIN rail
StandardsIACS E10, IEC 60950, CISPR 11, CISPR 24, UL 60950, UL 61010, CISPR 22
Output current3 A
Connections - terminalsscrew type terminals, RJ45 connector
Environment
Vibration frequency5-8.4 Hz conforming to EN/IEC 60068-2
Relative humidity5-85 % at 55-55 °C without condensation
Ambient air temperature for storage-40-85 °C
Shock resistance+/- 15 gn 11 ms conforming to EN/IEC 60068-2-27
IP degree of protectionother parts: IP30, connectors: IP20
Pollution degree3
Ambient air temperature for operation-20-70 °C
Flame retardanceV0 conforming to UL 94
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.323 cm
Package 1 Width7.949 cm
Package 1 Length11.525 cm
Package 1 Weight120.0 g
Unit Type of Package 22
Number of Units in Package 254
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight7.211 kg
Unit Type of Package 33
Number of Units in Package 3432
Package 3 Height75 cm
Package 3 Width60 cm
Package 3 Length80 cm
Package 3 Weight67 kg

Related products

Picture of Circuit breaker, ComPacT NSX630F, 36kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

Circuit breaker, ComPacT NSX630F, 36kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

C63F32D630
$3,558.58
View Detail
Picture of Circuit breaker, ComPacT NSX630H, 70kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

Circuit breaker, ComPacT NSX630H, 70kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

C63H32D630
$4,191.26
View Detail
Picture of Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

C63N32D630
$3,798.48
View Detail
Picture of Circuit breaker, ComPacT NS800N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 800A

Circuit breaker, ComPacT NS800N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 800A

C080N320FM
Please Contact Sales to buy this Product. click here
View Detail
Picture of Circuit breaker, ComPacT NS800N, 50kA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 800A

Circuit breaker, ComPacT NS800N, 50kA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 800A

C080N420FM
Please Contact Sales to buy this Product. click here
View Detail
Picture of Circuit breaker, ComPacT NS1000N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A

Circuit breaker, ComPacT NS1000N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A

C100N320FM
Please Contact Sales to buy this Product. click here
View Detail
Picture of Circuit breaker, ComPacT NS1000N, 50kA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A

Circuit breaker, ComPacT NS1000N, 50kA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A

C100N420FM
Please Contact Sales to buy this Product. click here
View Detail

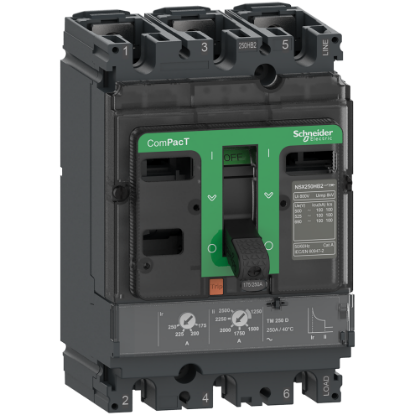

Picture of Circuit breaker, ComPacT NSX250F, 36kA/415VAC, 3 poles, TMD trip unit 250A
