LV434001

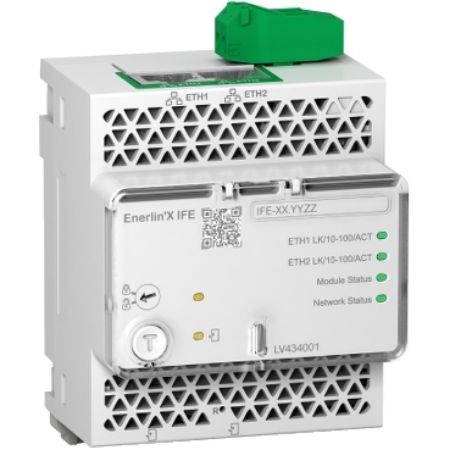

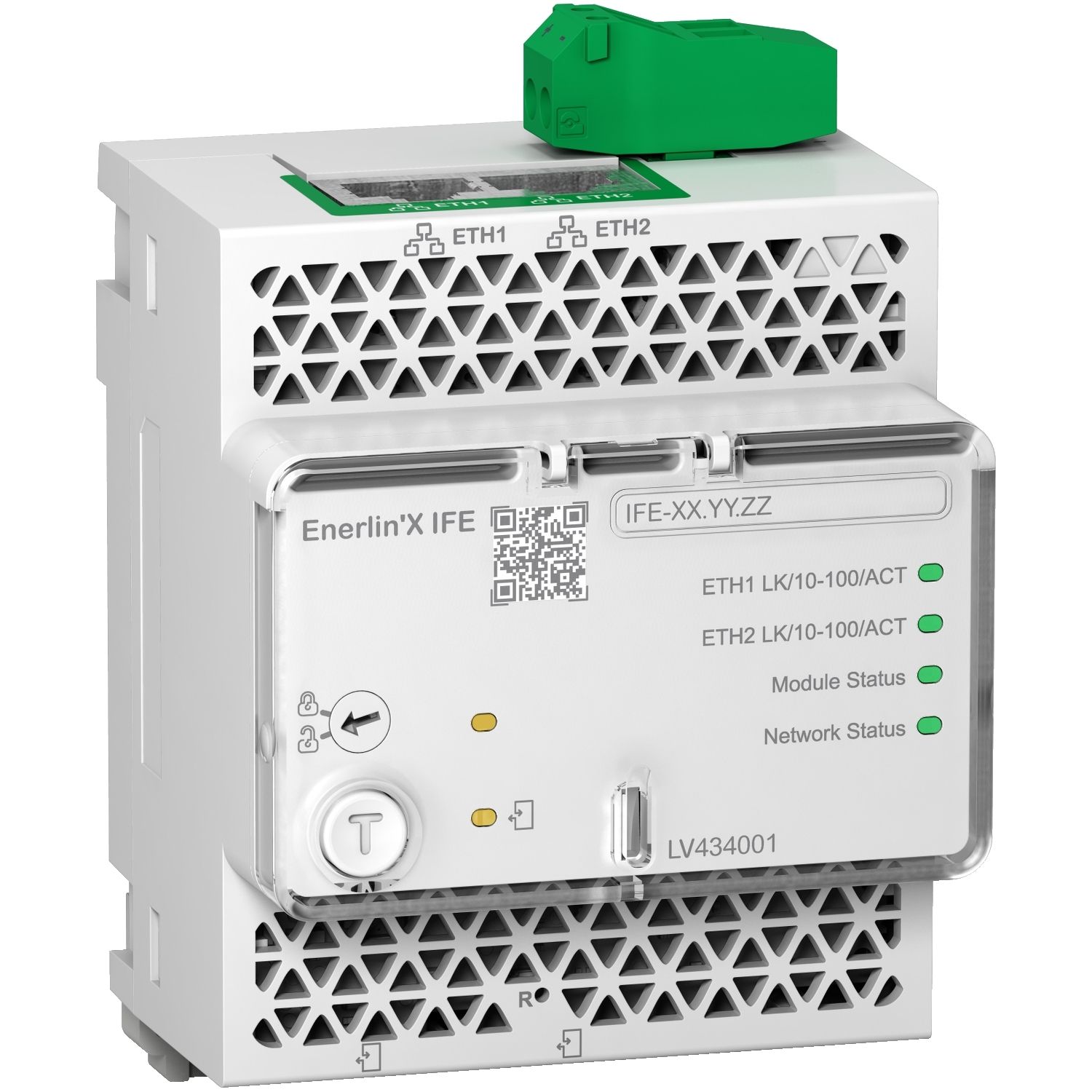

IFE Ethernet interface, Enerlin'X

$1,498.22
Available for Shipping : 17-Nov-2024
IFE Ethernet interface, Enerlin'X
  • Live collection of Masterpact, Compact and PowerPact circuit breaker data
  • Alarms and pre-alarms for remote notification
  • Ability to remotely control the circuit breakers
  • Plug and play thanks to the ULP
  • Build-in test function
  • Single software for commissioning and firmware updates with EcoStruxure Power Commission
Manufacturer: Square D
This IFE is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to a single Masterpact, Compact or PowerPact circuit breaker. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE interface is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE interface is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE interface firmware can be updated using EcoStruxure Power Commission software.

Products specifications

Attribute name Attribute value
Main
Range compatibility PowerPact PowerPact R, PowerPact PowerPact P, PowerPact PowerPact H, PowerPact PowerPact L, PowerPact PowerPact J, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, ComPact ComPact NSX, Masterpact MasterPact NW, Masterpact MasterPact NT, Masterpact MasterPact MTZ
Device short name IFE
Range Enerlin'X
Range of product ComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630, ComPact NSX100...250
Product or component type interface module
Complementary
Web server embedded HTTP server
Compatibility code IFE
Height 105 mm
[Us] rated supply voltage 24 V DC - 20...10 %
Accessory / separate part category spare part for Compact NS1600b...3200, spare part for Compact NS630b...1600
Current consumption 120 mA
Net weight 182.5 g
Product certifications CE, FCC, cULus, GOST
Maximum supply current 3 A
Mounting mode by clips
Control type by software
Communication network type Universal Logic Plug on 2-port RJ45, Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP10/100 Mbit/s on 2-port RJ45
Depth 71 mm
Width 72 mm
Mounting support 35 mm DIN rail
Standards IEC 60950, IEC 60947-6-2, UL 508, UL 60950
Connections - terminals RJ45 connector
Environment
Vibration frequency 5-8.4 Hz
Relative humidity 5-85 %
Ambient air temperature for storage -40-85 °C
Shock resistance 1000 m/s²
IP degree of protection front panel: IP4X, other parts: IP3x, connectors: IP2X
Pollution degree 3
Ambient air temperature for operation -20-70 °C
Flame retardance V0 conforming to IEC 60695-2-11, V0 conforming to IEC 60947-1, V0 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.1 cm
Package 1 Width 7.2 cm
Package 1 Length 10.5 cm
Package 1 Weight 188.0 g
Unit Type of Package 2 2
Number of Units in Package 2 192
Package 2 Height 60.0 cm
Package 2 Width 80.0 cm
Package 2 Length 70.0 cm
Package 2 Weight 61.786 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 6.723 kg
