Picture of IFE Ethernet switchboard server, Enerlin'X
SKU:

LV434002

IFE Ethernet switchboard server, Enerlin'X

$2,495.47
IFE Ethernet switchboard server, Enerlin'X
  • Live collection of Masterpact, Compact and PowerPact circuit breaker data
  • Alarms and pre-alarms for remote notification
  • Ability to remotely control the circuit breakers
  • Plug and play thanks to the ULP
  • Build-in test function
  • Single software for commissioning and firmware updates with EcoStruxure Power Commission
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
End of life manual
Declaration of conformity
User guide
Product environmental
Catalogue
Product Page Link
Product Data Sheet

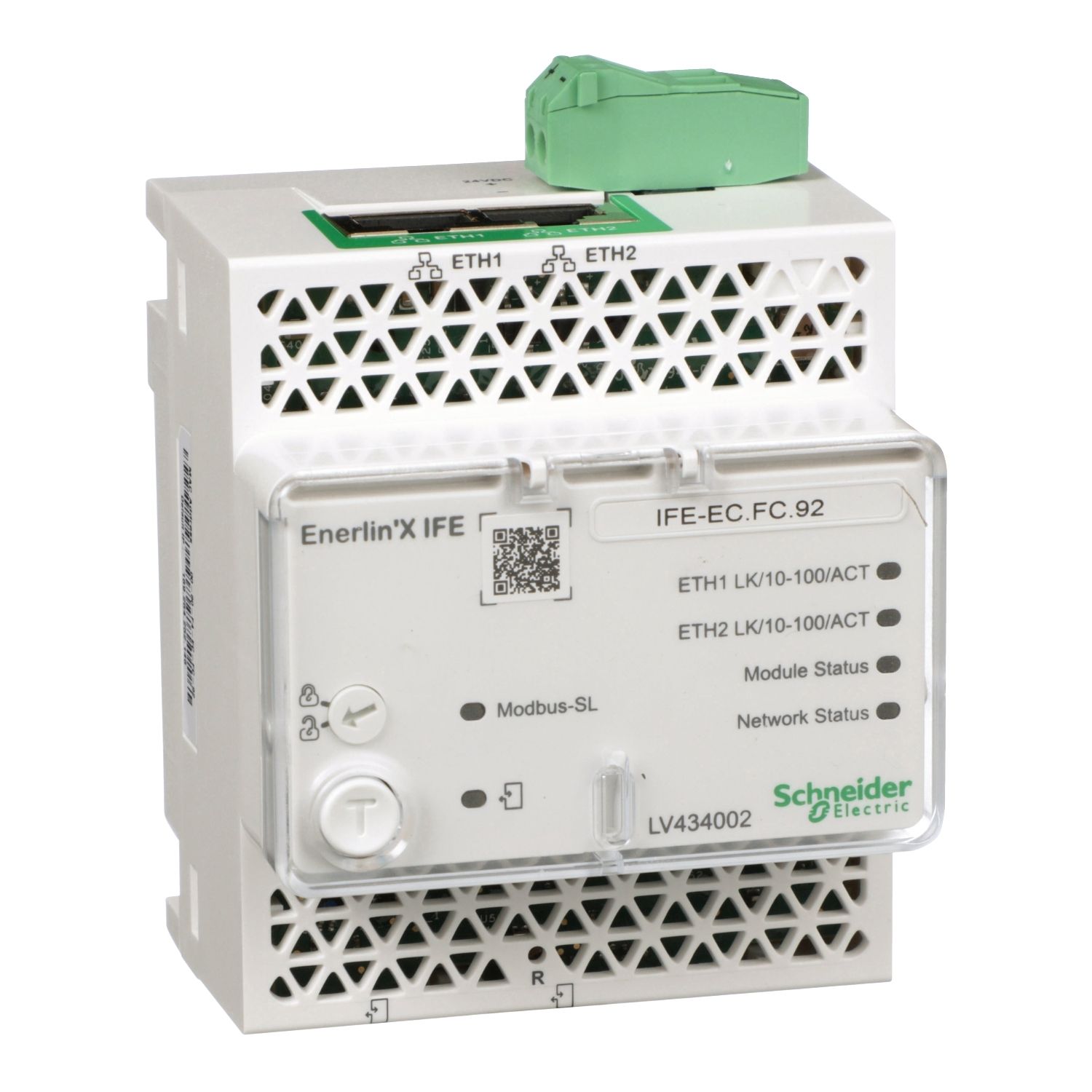

This IFE switchboard server is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to one or several Masterpact, Compact or PowerPact circuit breakers. It incorporates a Modbus gateway. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE switchboard server is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE switchboard server is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE switchboard server firmware can be updated using EcoStruxure Power Commission software.

Products specifications

Attribute nameAttribute value
Main
Range compatibilityPowerPact PowerPact R, PowerPact PowerPact P, PowerPact PowerPact H, PowerPact PowerPact L, PowerPact PowerPact J, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, ComPact ComPact NSX, Masterpact MasterPact NW, Masterpact MasterPact NT, Masterpact MasterPact MTZ
Device short nameIFE
RangeEnerlin'X
Range of productComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630, ComPact NSX100...250
Product or component typeinterface module
Complementary
Web serverembedded HTTP server
Compatibility codeIFE master
Height105 mm
[Us] rated supply voltage24 V DC - 20...10 %
Accessory / separate part categoryspare part for Compact NS1600b...3200, spare part for Compact NS630b...1600
Current consumption120 mA
Net weight182.5 g
Product certificationsFCC, cULus, GOST, CE
Maximum supply current3 A
Mounting modeby clips
Control typeby software
Communication network typeModbus TCP/IP, Modbus TCP master9.6...38.4 kbauds, Universal Logic Plug on 2-port RJ45, Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP10/100 Mbit/s on 2-port RJ45
Depth71 mm
Width72 mm
Communication gatewayEthernet TCP/IP to Modbus
Mounting support35 mm DIN rail
StandardsIEC 60950, UL 60950, UL 508, IEC 60947-6-2
Connections - terminalsRJ45 connector
Environment
Vibration frequency5-8.4 Hz
Relative humidity5-85 %
Ambient air temperature for storage-40-85 °C
Shock resistance1000 m/s²
IP degree of protectionfront panel: IP4X, other parts: IP3x, connectors: IP2X
Pollution degree3
Ambient air temperature for operation-20-70 °C
Flame retardanceV0 conforming to IEC 60695-2-11, V0 conforming to IEC 60947-1, V0 conforming to UL 94
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.1 cm
Package 1 Width7.2 cm
Package 1 Length10.5 cm
Package 1 Weight188.0 g
Unit Type of Package 22
Number of Units in Package 2192
Package 2 Height60.0 cm
Package 2 Width80.0 cm
Package 2 Length70.0 cm
Package 2 Weight61.786 kg
Unit Type of Package 33
Number of Units in Package 324
Package 3 Height30.0 cm
Package 3 Width30.0 cm
Package 3 Length40.0 cm
Package 3 Weight6.723 kg
