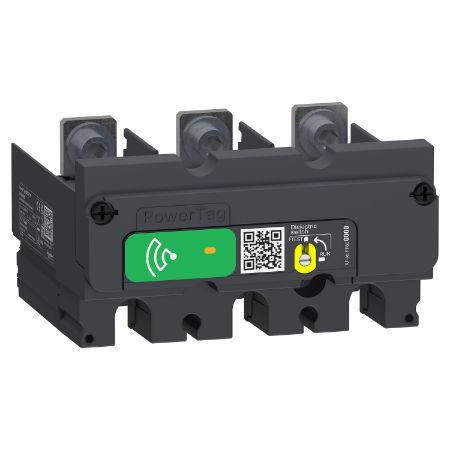

Picture of energy sensor, PowerTag Monoconnect 250A 3P
SKU:

LV434020

energy sensor, PowerTag Monoconnect 250A 3P

$640.00
Available for Shipping : 12-Dec-2024
Product Selector
energy sensor, PowerTag Monoconnect 250A 3P
  • Energy sensor that provides accurate real-time measurements and energy values
  • Wireless communication, needs to be associated with a concentrator to treat the data collected
  • Accurate energy sensor with Class 1 accuracy according to IEC 61557-12
  • Small and cost effective, designed for molded case circuit creakers and switches up to 250 A
  • PowerTag Energy 3P has an integrated design
  • Compatible with the same connection accessories than the device it is mounted on
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Catalogue
Product environmental
End of life manual
Instruction sheet
Brochure
Product Page Link
Product Data Sheet
This PowerTag Energy M250 3P is a wireless communication energy sensor. With its Monoconnect design, it is dedicated to Compact NSX 100/160/250, Compact NS 100/160/250 and TeSys GV5/GV7. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active, and reactive energy, active, reactive and apparent power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy M250 complies with IEC 61557-12 standard. It is a PMD-II/DD/K70/1. The Performance category is Class 1. The Imax maximum current is 250A. The Ib Base current is 40A. The Saturation current is 500A and the Ist Starting current is 160mA. The Un Rated voltages are Phase-to-neutral 230VAC +/- 20% and Phase-to-phase 400VAC +/- 20%. The maximum consumption is below or equal to 3.7VA. It can be mounted directly on the bottom side of the circuit breaker or Vigi add-on terminals, or top or bottom side of the plug-in base if any. The product color is grey (RAL7016). The weight is 250g. The degree of protection is IP20 and IK07. The operating temperature is between -25°C to +70°C. The storage temperature is between -50°C to +85°C.

Products specifications

Attribute name Attribute value
Main
Connection pitch 35 mm
Concentrator compatibility PrismaSet Active, EcoStruxure Panel Server Advanced, EcoStruxure Panel Server Universal, Wiser IP module, Harmony Hub, Acti9 PowerTag Link HD, Acti9 PowerTag Link, Acti9 PowerTag Link C, Acti9 Smartlink SI D, Acti9 Smartlink SI B
Transmission support medium radio frequency 2.4-2.4835 GHz conforming to IEEE 802.15.4 (11-26 ) transmission time < 5 ms
Metering type frequency 45...65 Hz, current I1, I2, I3, Iavg 8...250 A: class 1 at 25 °C conforming to IEC 61557-12, voltage V1N, V2N, V3N 184...276 V: class 0.5 at 25 °C conforming to IEC 61557-12, voltage U12, U23, U31 320...480 V: class 0.5 at 25 °C conforming to IEC 61557-12, reactive energy Ep IN/OUT/tot 0...281 x 10exp(9) kVARh: class 2 at 25 °C conforming to IEC 61557-12, active energy Ep IN/OUT/tot 0...281 x 10exp(9) kWh: class 1 at 25 °C conforming to IEC 61557-12, reactive power Q, Q1, Q2, Q3 88 VAR...416 kVAR: class 2 at 25 °C conforming to IEC 61557-12, active power P, P1, P2, P3 88 W...416 kW: class 1 at 25 °C conforming to IEC 61557-12, apparent power S, S1, S2, S3 88 VA...416 kVA: class 2 at 25 °C conforming to IEC 61557-12, power factor 0...1: class 1 at 25 °C conforming to IEC 61557-12
[Ib] Basic current 40 A
Range PowerLogic
Event management voltage loss with measured current at voltage loss
Max current 250 A
Emission power 10 mW
Accuracy class class 1 power factor conforming to IEC 61557-12, class 0.5 voltage conforming to IEC 61557-12, class 1 current conforming to IEC 61557-12, class 2 apparent power conforming to IEC 61557-12, class 2 reactive power conforming to IEC 61557-12, class 1 active power conforming to IEC 61557-12, class 2 reactive energy conforming to IEC 61557-12, class 1 active energy conforming to IEC 61557-12
Saturation current 500 A
Poles description 3P
Product specific application circuit monitoring, load monitoring, power factor, overload alarm, energy management
Mounting location bottom
Product destination switchboard
Product name PowerTag M250
Product or component type energy sensor
Type of measurement power factor, voltage, current, apparent power, active and reactive power, active and reactive energy
Starting current 160 mA
Range compatibility EasyPact EasyPact CVS250, EasyPact EasyPact CVS160, EasyPact EasyPact CVS100, TeSys TeSys GV7, TeSys TeSys GV5, Compact NS Compact NS100...250, Compact NSX Compact NSX100...250
Mounting support on circuit breaker
Complementary
Tightening torque 10-10 N.m
Colour dark grey (RAL 7016)
Width 105 mm
[Imp] maximum permanent current 1.2 x In
Depth 86 mm
Standards ETSI EN 300 328, IEC 61326-1, IEC 61010-2-030, ETSI EN 301 487-1, IEC 61010-1, IEC 61557-12
Height 57 mm
Power consumption in VA 3.7 VA
Net weight 250 g
Form factor monoconnect
[Ue] rated operational voltage 400 V AC, +/- 20 %, between phases, 230 V AC, +/- 20 %, between phase and neutral
Network frequency 60 Hz, 50 Hz
Mounting mode bolt-on
Environment
Measurement category category III conforming to IEC 61010-2-030
Relative humidity 0-95 % at 55-55 °C conforming to IEC 60721-3-3
Ambient air temperature for storage -50-85 °C
Directives 2014/53/EU - radio equipment directive
Pollution degree 3
Electromagnetic compatibility electromagnetic emission conforming to IEC 62311, radiated EMC conforming to ETSI EN 301 489-17, industrial electromagnetic environment conforming to IEC 61326-1
IP degree of protection IP20
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 60068-2-75 test Ehb
Operating altitude 0...2000 m
Quality labels CE
Overvoltage category IV conforming to IEC 61010-1
Vibration resistance 3M4 conforming to IEC 60721-3-3
Environmental characteristic indoor use
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 11.100 cm
Package 1 Length 13.400 cm
Package 1 Weight 462.0 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.311 kg
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 71.500 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 43.000 kg
