Picture of I/O (input/output) application module, Enerlin'X
SKU:

LV434063

I/O (input/output) application module, Enerlin'X

$1,373.57
Product Selector
I/O (input/output) application module, Enerlin'X
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
End of life manual
Catalogue
User guide
Instruction sheet
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet

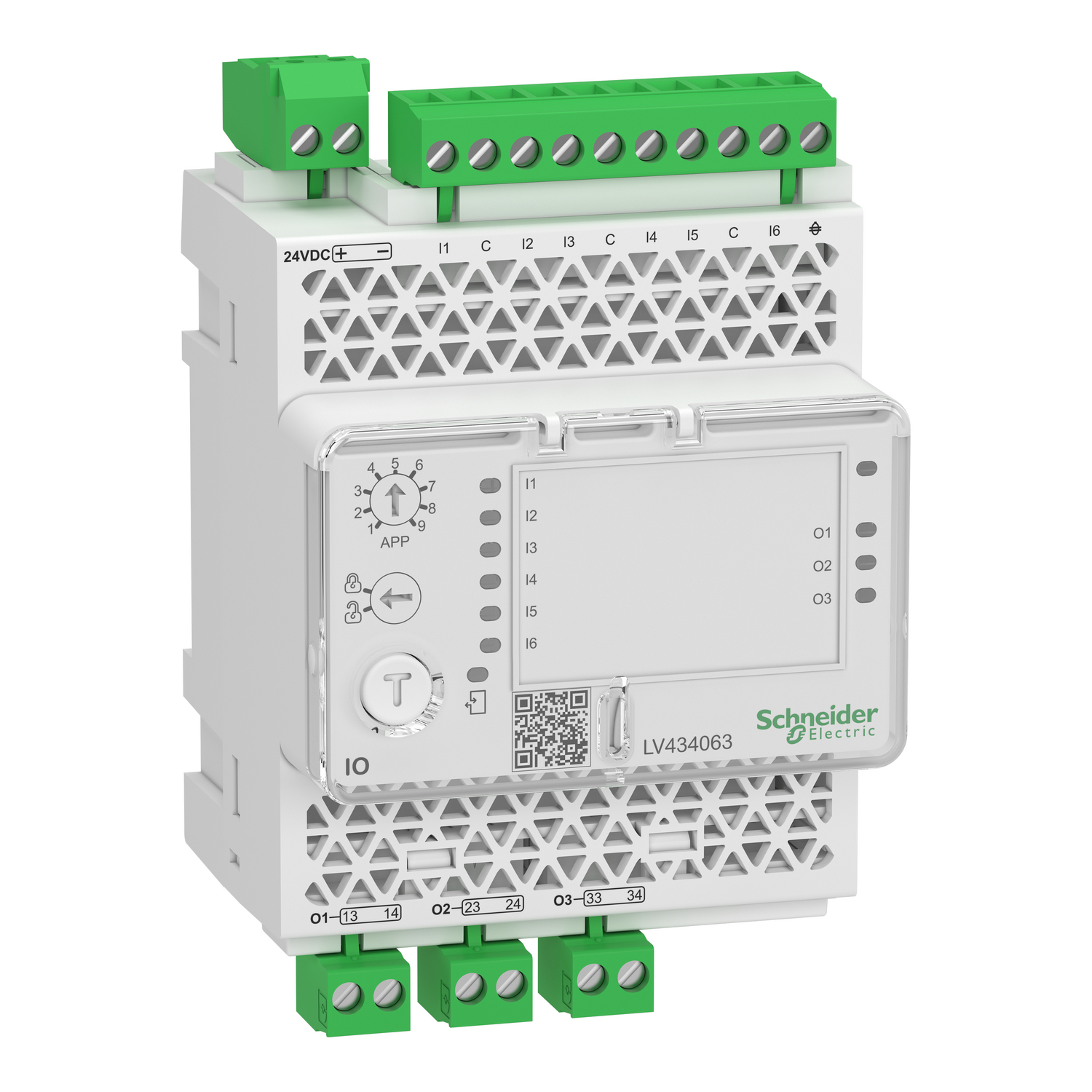

This I/O module is an Input/Output application module and it is part of EnerlinX communication system. This I/O module is compatible with Masterpact, Compact and PowerPact devices. It is used for protection, circuit breaker control, motor control, energy management and monitoring applications. It provides six digital inputs, three digital outputs and one analog input. It is equipped on the top with one 24VDC screw clamp terminal block and one terminal block for the 6 digital inputs. There are two RJ45 sockets on the bottom for ULP, and 4 terminal blocks for the digital outputs and analog input. The I/O module is a DIN rail mounting device and its dimensions are 72mm x 116mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The I/O module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The I/O module can be configured and updated (firmware) using EcoStruxure Power Commission software.

Products specifications

Attribute nameAttribute value
Main
Device short nameI/O
RangeEnerlin'X
Range of productComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630, ComPact NSX100...250
Product nameEnerlin'X IO
Product or component typeI/O module
Range compatibilityPowerPact PowerPact R, PowerPact PowerPact P, PowerPact PowerPact H, PowerPact PowerPact L, PowerPact PowerPact J, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, ComPact ComPact NSX, Masterpact MasterPact NW, Masterpact MasterPact NT, Masterpact MasterPact MTZ
Complementary
Compatibility codeI/O
Mounting modeby clips
Control typeby software
Communication network typeUniversal Logic Plug on 2 RJ45 connectors
Output typedigital: 250 V - AC - 5 A
Number of inputs1-1 analog, 6-6 digital
Time delay0...20 s
Vibration frequency5-8.4 Hz
Electromagnetic compatibilitysurge immunity test conforming to EN/IEC 61000-4-5, immunity to radiated fields 10 V/m conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test conforming to EN/IEC 61000-4-2
Cable length10 m
Height116 mm
[Us] rated supply voltage24 V DC - 20...10 %
Input typedigital at state 0: 0-19.8 V - DC - 0-0 mA, digital at state 1: 19.8-25.2 V - DC - 6.1-8.8 mA
Depth70.6 mm
Width71.7 mm
Current consumption165 mA
Net weight229.5 g
Mounting support35 mm DIN rail
Number of outputs3 digital
StandardsUL 508, IEC 60950, UL 60950, IEC 60947-6-2
Connections - terminalsscrew terminal block
Product certificationscULus, CE, GOST, FCC
Environment
IP degree of protectionIP3x other parts: , IP4X front panel: , IP2X connectors:
Relative humidity5-85 %
Ambient air temperature for storage-40-85 °C
Pollution degree3
Ambient air temperature for operation-20-70 °C
Shock resistance1000 m/s²
Flame retardanceV0 conforming to UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.000 cm
Package 1 Width8.800 cm
Package 1 Length12.500 cm
Package 1 Weight294.000 g
Unit Type of Package 22
Number of Units in Package 224
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight7.752 kg
Unit Type of Package 33
Number of Units in Package 3192
Package 3 Height75.000 cm
Package 3 Width60.000 cm
Package 3 Length80.000 cm
Package 3 Weight71.228 kg

Related products

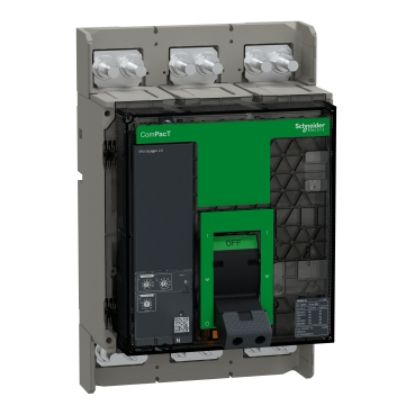

Picture of Circuit breaker, ComPacT NS800N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 800A

Circuit breaker, ComPacT NS800N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 800A

C080N320FM
Please Contact Sales to buy this Product. click here
View Detail

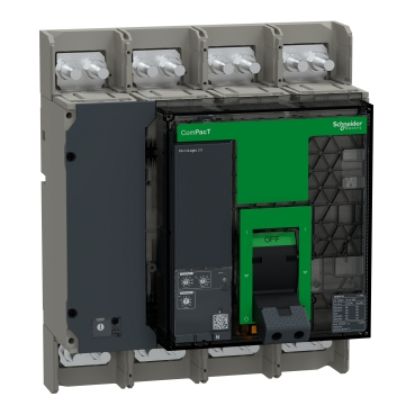

Picture of Circuit breaker, ComPacT NS800N, 50kA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 800A

Circuit breaker, ComPacT NS800N, 50kA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 800A

C080N420FM
Please Contact Sales to buy this Product. click here
View Detail
Picture of Circuit breaker, ComPacT NSX630F, 36kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

Circuit breaker, ComPacT NSX630F, 36kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

C63F32D630
$3,558.58
View Detail
Picture of Circuit breaker, ComPacT NSX630H, 70kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

Circuit breaker, ComPacT NSX630H, 70kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

C63H32D630
$4,191.26
View Detail
Picture of Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A

C63N32D630
$3,798.48
View Detail
Picture of Circuit breaker, ComPacT NS1000N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A

Circuit breaker, ComPacT NS1000N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A

C100N320FM
Please Contact Sales to buy this Product. click here
View Detail

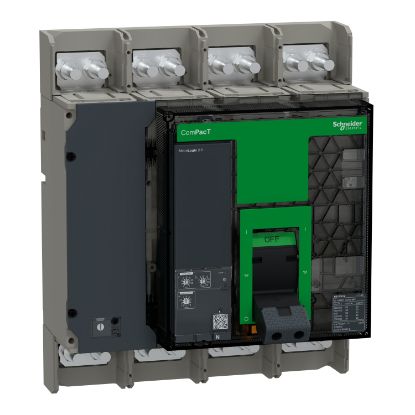

Picture of Circuit breaker, ComPacT NS1000N, 50kA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A
