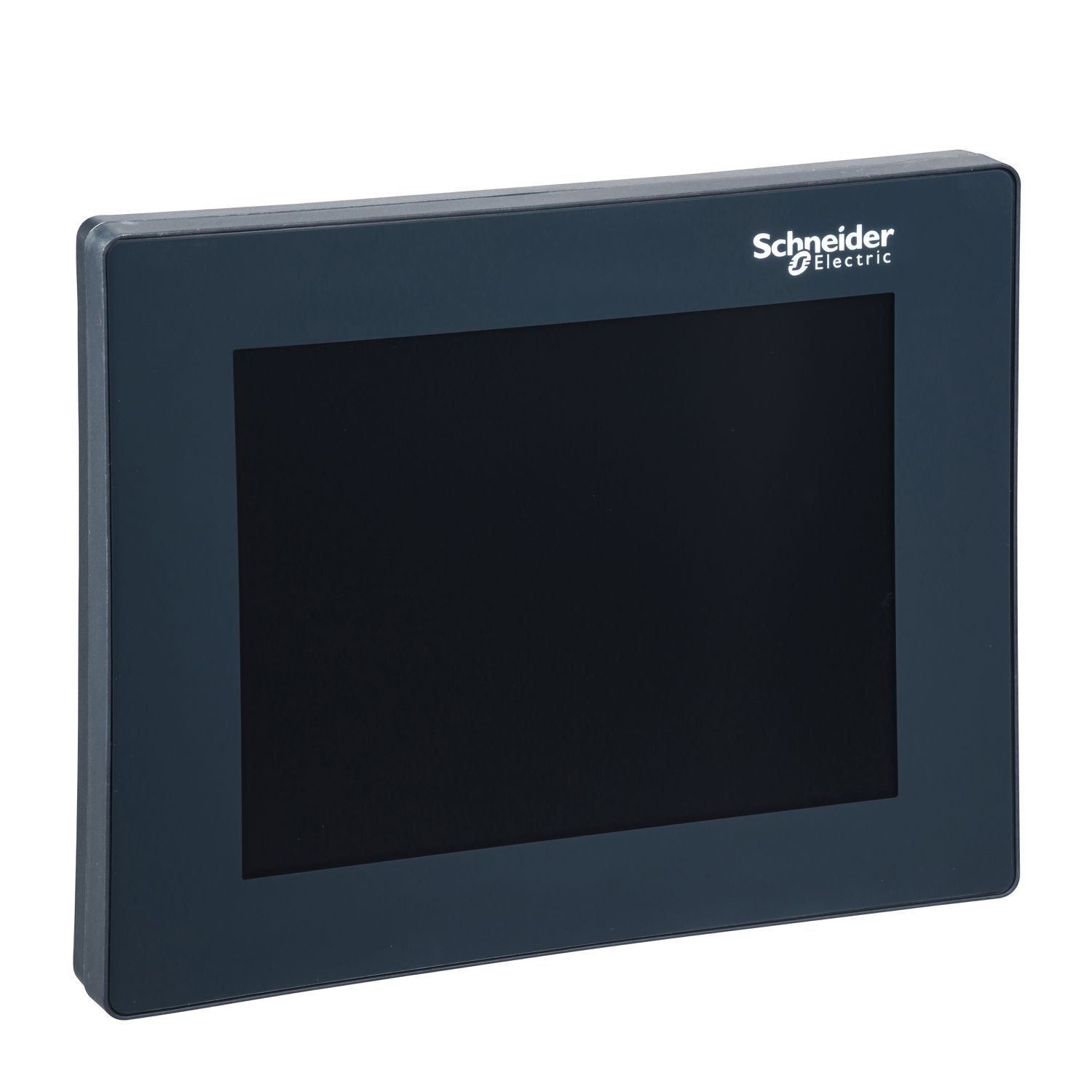

Picture of Ethernet switchboard display FDM128, up to 8 connected devices, screen 115.2 x 86.4mm, IP65 on front face
SKU:

LV434128

Ethernet switchboard display FDM128, up to 8 connected devices, screen 115.2 x 86.4mm, IP65 on front face

$3,344.54
Ethernet switchboard display FDM128, up to 8 connected devices, screen 115.2 x 86.4mm, IP65 on front face
  • Displays the measurements, alarms, and operating assistance data
  • Connection up to 8 devices over Ethernet
  • Global access to information about your circuit breakers in one user interface
  • Simple and agile touch screen
  • Mounted in any location on your switchboard for ergonomic access
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 30-Oct-2024
End of life manual
Product environmental
Declaration of conformity
Instruction sheet
User guide
Catalogue
Product Page Link
Product Data Sheet
This FDM128 is an intelligent Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact, PowerPact and PowerTag Link devices. It collects data from up to 8 devices over Ethernet, for a possibility of up to 160 PowerTag connected. FDM128 displays the measurements, alarms, and operating assistance data. It has a color TFT LCD touch screen, with a high resolution (320 pixels x 240 pixels). The FDM128 is equipped with a 24VDC terminal block and one RJ45 socket for Ethernet connection. It is easily installed in a switchboard through a standard 22mm door hole, and its dimensions are 129mm x 96mm x 56,5mm. The operating temperature range is between -10°C to 55°C, and the protection degree is IP65 on the front face. The FDM128 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM128 firmware can be updated using EcoStruxure Power Commission software.

Products specifications

Attribute nameAttribute value
Main
Device short nameFDM128
RangeEnerlin'X
Accessory / separate part categorydisplay and signalling accessory
Range of productComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630, ComPact NSX100...250
Function of moduledisplay alarm, metering, view network, remote control
Product nameEnerlin'X FDM
Product or component typedisplay module
Range compatibilityActi 9 Acti9 Smartlink smart communication module, PowerPact PowerPact R, PowerPact PowerPact P, PowerPact PowerPact L, PowerPact PowerPact J, PowerPact PowerPact H, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, Compact NSX, MasterPact NT, MasterPact NW, MasterPact MTZ
Complementary
Display typeactive matrix colour TFT LCD with LED backlight
Compatibility codeFDM128
Mounting modeflush mounting
Control typeremote control
Height129 mm
[Us] rated supply voltage24 V DC - 15...20 %
Depth56.5 mm
Width163 mm
View angle horizontal x vertical70 x 80°
Accessory / separate part categoryspare part for Compact NS1600b...3200, spare part for Compact NS630b...1600
Display resolution320 x 240 pixels QVGA
Power consumption in W6.8 W
Mounting supportsurface mount with kit
StandardsUL, CSA, CE
Environment
IP degree of protectionIP65 front face: , IP54
Ambient air temperature for operation-10-55 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height18.4 cm
Package 1 Width6.8 cm
Package 1 Length26.7 cm
Package 1 Weight837.5 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight7.238 kg
Unit Type of Package 33
Number of Units in Package 3192
Package 3 Height80 cm
Package 3 Width120 cm
Package 3 Length110 cm
Package 3 Weight182.712 kg
