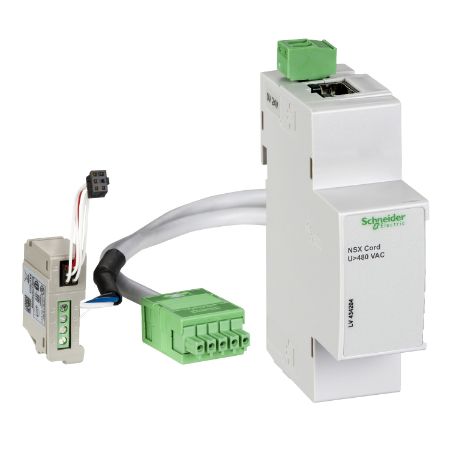

Picture of ULP wiring accessory, ComPacT NSX, insulated NSX cord, 1.3m length, voltage above 480VAC
SKU:

LV434204

ULP wiring accessory, ComPacT NSX, insulated NSX cord, 1.3m length, voltage above 480VAC

Old price: $1,434.40 INC GST
$1,173.34 INC GST
Available for Shipping : 08-Dec-2025
ULP wiring accessory, ComPacT NSX, insulated NSX cord, 1.3m length, voltage above 480VAC
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
User guide
Environmental Disclosure
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This insulated NSX cord is an ULP wiring accessory that connects Compact NSX devices to ULP devices. The insulated NSX cord is mandatory for system voltages greater than 480 V AC. ULP devices are FDM121 display, IFM and IFE communication modules, or I/O module. NSX cord is compatible with PowerPact multistandard products. NSX cord is equipped with one RJ45 connector for the connection to ULP devices. NSX cord is connected on the Compact NSX BSCM module for both communication and 24VDC power supply. The length is 1.3 m.

Products specifications

Attribute name Attribute value
Main
Device short name cord L = 1.3 m
Range ComPacT
Product or component type terminal block connector
Range compatibility ComPact ComPact NSX, PowerPact PowerPact Multistandard, ComPact ComPact NSX DC
Range of product ComPact NSX400...630 DC, ComPact NSX400...630, ComPact NSX100...250 DC, ComPact NSX100...250
Complementary
[Ue] rated operational voltage > 480 V AC
Location of connection inside
Mounting mode by clips
Connector type 1 RJ45
Length 1.3 m
Localisation on device internal
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.7 cm
Package 1 Width 9.0 cm
Package 1 Length 13.9 cm
Package 1 Weight 200.0 g
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.053 kg
