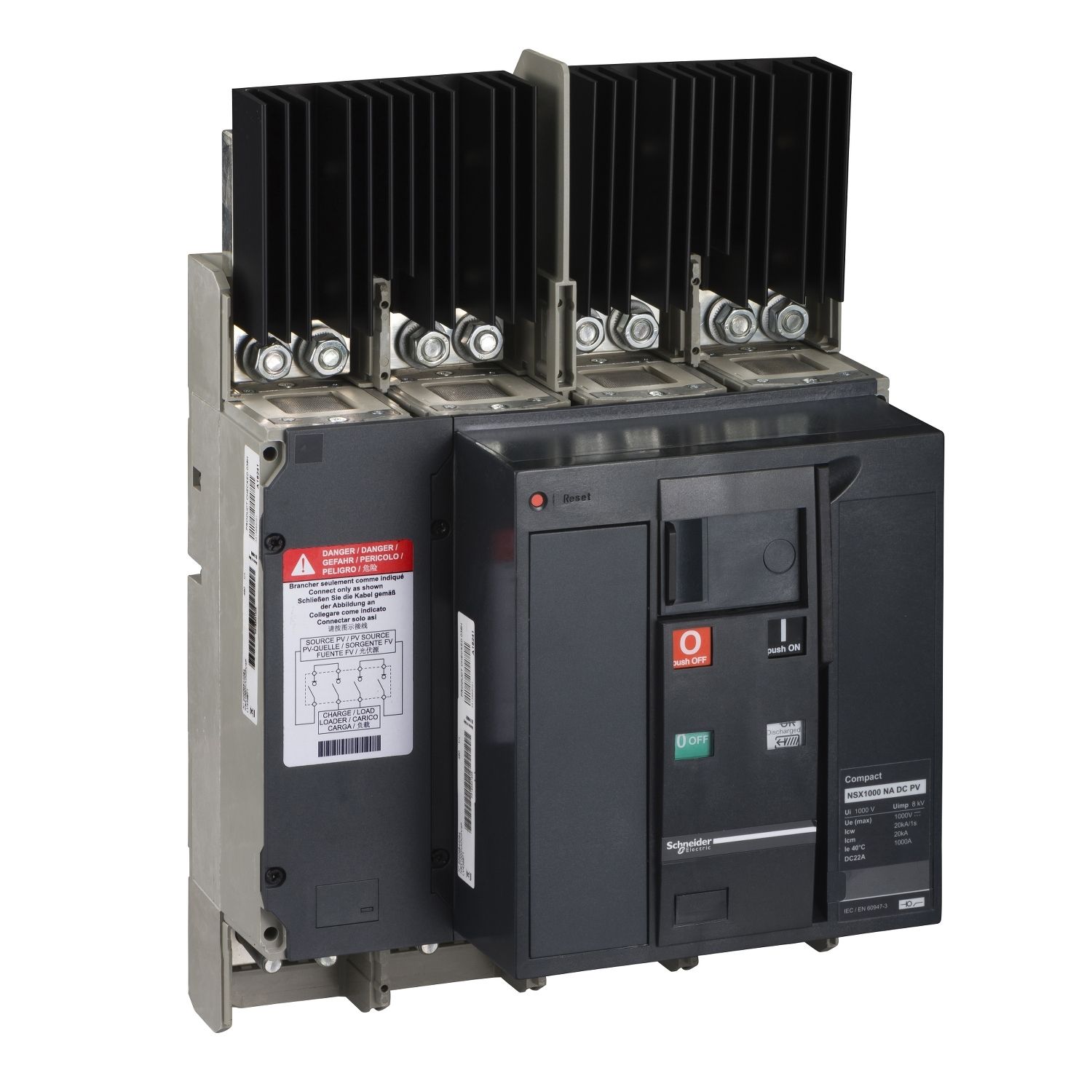

Switch disconnector, ComPacT NSX1000 NA DC PV, 4 poles, 1000A, fixed, electrically operated

$12,630.24 INC GST
Available for Shipping : 13-Feb-2025
Switch disconnector, ComPacT NSX1000 NA DC PV, 4 poles, 1000A, fixed, electrically operated
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 1000 V DC conforming to IEC 60947-3
Device short name Compact NSX1000NA DC PV
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-3
Poles description 4P
[Ie] rated operational current DC-22A: 1000 A DC 1000 V
Suitability for isolation yes conforming to IEC 60947-3
[Ui] rated insulation voltage 1000 V DC conforming to IEC 60947-3
[Icm] rated short-circuit making capacity 20 kA switch-disconnector alone
Pollution degree 3 conforming to IEC 60947-3
Utilisation category DC-22A
Switch-disconnector name Compact NSX1000NA DC PV
Range ComPacT
Product name ComPact NSX DC
Product or component type switch disconnector
Visible break no
Breaking capacity code NA
Network type DC
Contact position indicator yes
[Ith] conventional free air thermal current 1000 A at 65 °C
Range of product ComPact NS630b...1600
Complementary
[Icw] rated short-time withstand current 20 kA during 1 s conforming to IEC 60947-3
Depth 182 mm
Width 280 mm
Mechanical durability 10000 cycles conforming to IEC 60947-3
Electrical durability 500 cycles 1000 V DC In conforming to IEC 60947-3
Mounting mode fixed
Upside connection front
Control type toggle
Net weight 18 kg
Downside connection front
Connection pitch 70 mm
Height 327 mm
[In] rated current 1000 A
Environment
Electrical shock protection class class II
IP degree of protection IP20 conforming to IEC 60529
Standards UL 508, EN/IEC 60947
IK degree of protection IK07 conforming to EN 50102
Product certifications CE, CCC, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18 cm
Package 1 Width 27.9 cm
Package 1 Length 41 cm
Package 1 Weight 21.676 kg
