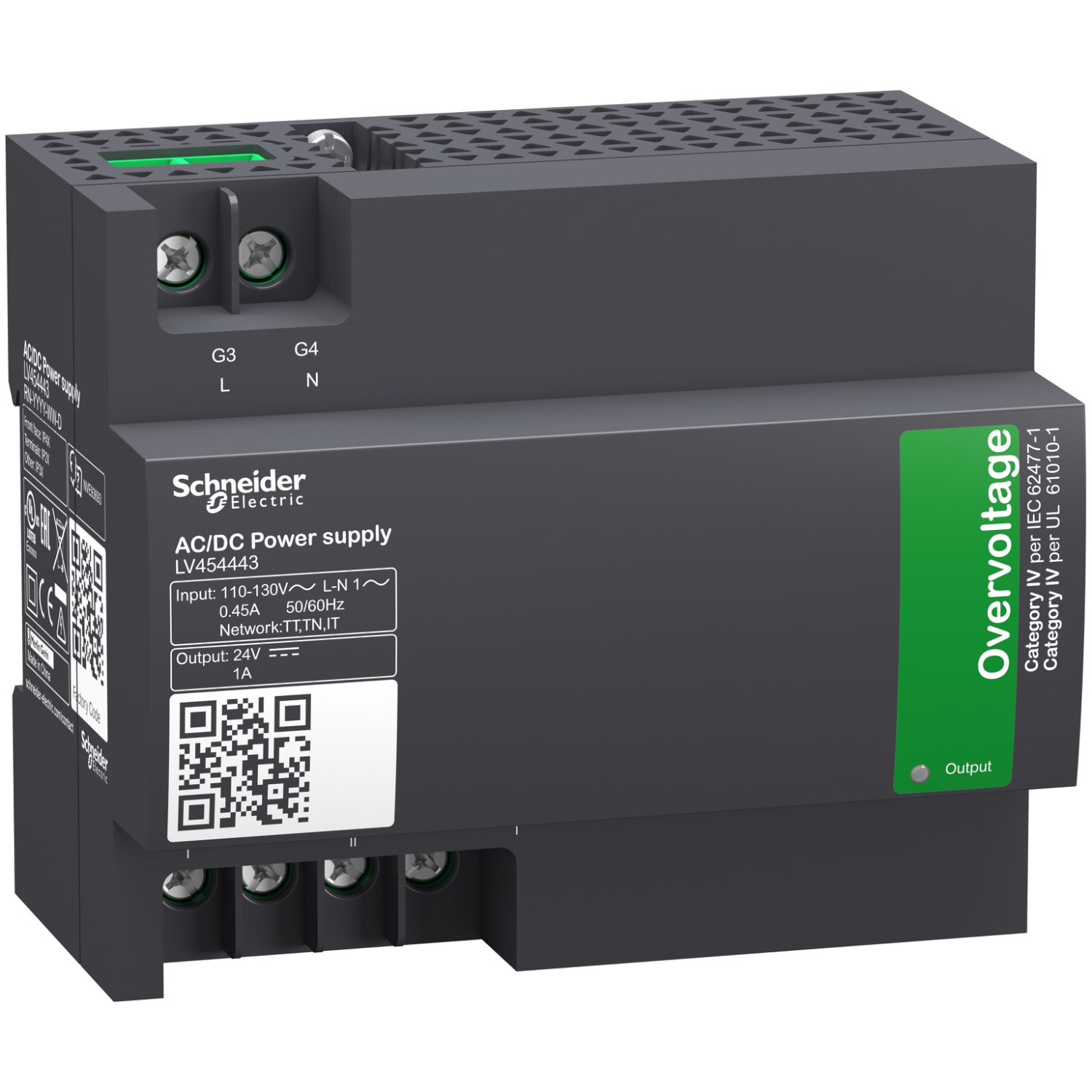

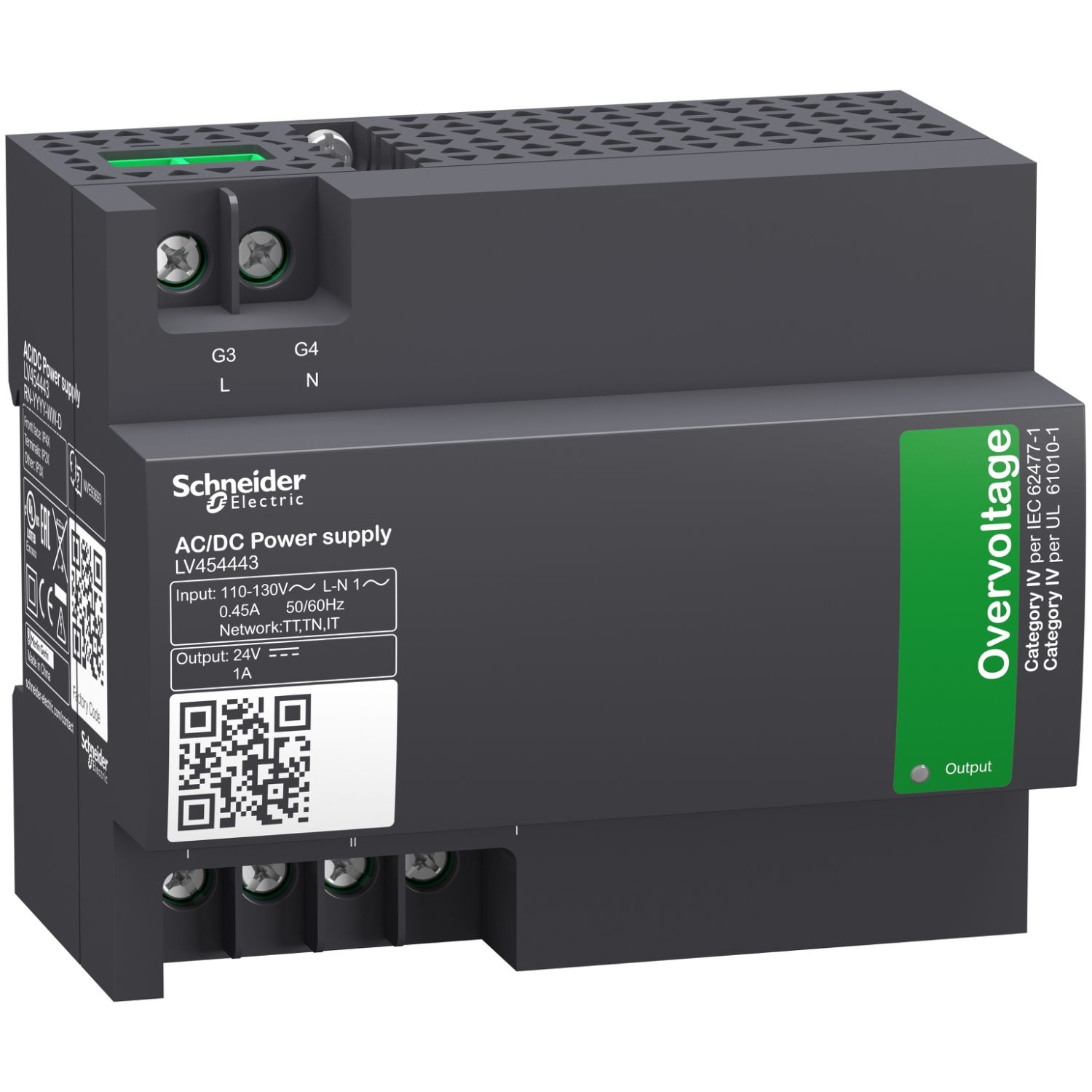

Picture of External power supply module, input voltage 110VAC to 130VAC 50/60Hz, output voltage 24VDC, output current 1A
SKU:

LV454443

External power supply module, input voltage 110VAC to 130VAC 50/60Hz, output voltage 24VDC, output current 1A

$2,515.20
Available for Shipping : 24-Nov-2024
External power supply module, input voltage 110VAC to 130VAC 50/60Hz, output voltage 24VDC, output current 1A
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
User guide
Declaration of conformity
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device application power supply
Range MasterPacT
Range of product ComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630 DC, ComPact NSX400...630, ComPact NSX100...250 DC, ComPact NSX100...250
Accessory / separate part type control units accessories, trip unit accessories
Product or component type external power supply module
Range compatibility PowerPact PowerPact R, PowerPact PowerPact P, PowerPact PowerPact L, PowerPact PowerPact J, PowerPact PowerPact H, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, ComPact ComPact NSX DC, ComPact ComPact NSX, Masterpact MasterPact NW, Masterpact MasterPact NT, Masterpact MasterPact MTZ
Complementary
Inrush current 20 A 2 ms
Operating position horizontal
Rated power in W 24 W
Width 108 mm
Name of test conducted emissions on the power line conforming to EN 61000-6-3, radiated emissions conforming to EN 61000-6-3, surge conforming to EN/IEC 61000-4-5, rapid transient conforming to IEC 61000-4-4, radiated electromagnetic field conforming to EN/IEC 61000-4-3, primary outage conforming to IEC 61000-4-29, magnetic field conforming to EN 61000-4-8, induced electromagnetic field conforming to EN/IEC 61000-4-6, electrostatic discharges conforming to EN/IEC 61000-4-2
Power dissipation in W 4.2 W
Input voltage limits 93.5...143 V AC at 47.5-63 Hz
Permissible temporary current boost 1.5 A (200 ms)
Depth 67.5 mm
Status LED 1 LED (green) output voltage
Trip unit name MicroLogic
[Us] rated supply voltage 110...130 V AC 50/60 Hz tolerance: +10 % -15 %
Operating altitude 0...2000 m
Height 90 mm
Overvoltage category IV conforming to UL 61010-1, IV conforming to IEC 62477-1
Power supply output current 1 A
Output protection type thermal, protection technology: automatic reset, against short-circuits, protection technology: manual reset, against overvoltage, protection technology: 30...32 V, manual reset, against overload, protection technology: manual reset
Connections - terminals screw type terminals, connection capacity: 1 x 0.2...1 x 4 mm² AWG 24...AWG 12, screw type terminals, connection capacity: 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16
Power supply type regulated switch mode
Efficiency 85 %
Mounting support 35 x 7.5 mm symmetrical DIN rail
Holding time >= 20 ms 110...130 V AC
Output voltage 24 V DC +/-5 %
Environment
Compatibility code CB_EXTERNAL_POWERSUPPLY
Relative humidity 0-95 % in storage, 0-95 % during operation
Ambient air temperature for storage -50-85 °C
IP degree of protection IP3x (housing) conforming to EN/IEC 60529, IP2X (connection terminals) conforming to EN/IEC 60529, IP4X (front face) conforming to EN/IEC 60529
Marking UL, CE, EAC
Ambient air temperature for operation -25-70 °C
Dielectric strength 1500 V between output and ground, 3000 V between input and output, 3000 V between input and ground
Environmental characteristic safety conforming to SELV, safety conforming to IEC 62477-1, EMC conforming to EN/IEC 61000-6-3, EMC conforming to EN/IEC 61000-6-2
Standards IEC 62477-1, UL 61010-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 11.3 cm
Package 1 Length 12.6 cm
Package 1 Weight 384.0 g
Unit Type of Package 2 2
Number of Units in Package 2 23
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.062 kg
