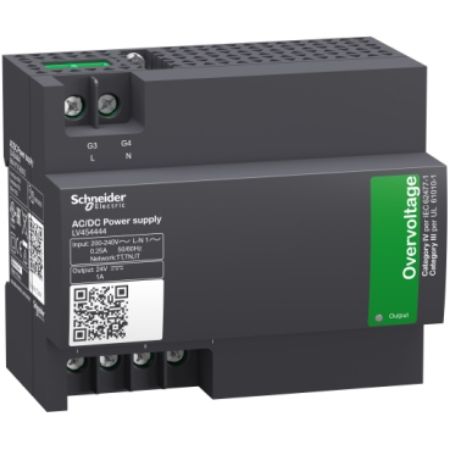

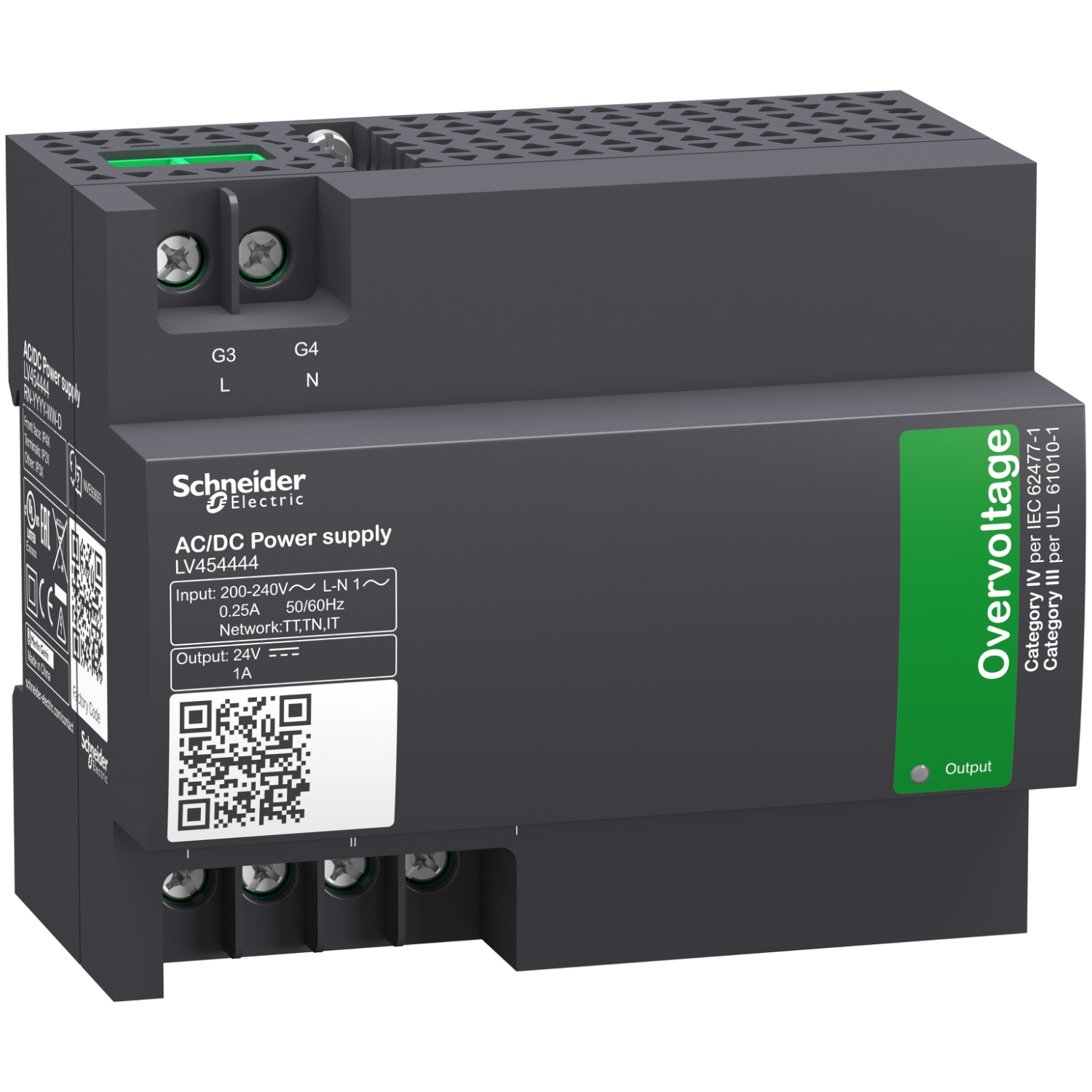

Picture of External power supply module, input voltage 200VAC to 240VAC 50/60Hz, output voltage 24VDC, output current 1A
SKU:

LV454444

External power supply module, input voltage 200VAC to 240VAC 50/60Hz, output voltage 24VDC, output current 1A

Please Contact Sales to buy this Product. click here
External power supply module, input voltage 200VAC to 240VAC 50/60Hz, output voltage 24VDC, output current 1A
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Product environmental
Declaration of conformity
User guide
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Device applicationpower supply
RangeMasterPacT
Range of productComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630 DC, ComPact NSX400...630, ComPact NSX100...250 DC, ComPact NSX100...250
Accessory / separate part typetrip unit accessories, control units accessories
Product or component typeexternal power supply module
Range compatibilityPowerPact PowerPact R, PowerPact PowerPact P, PowerPact PowerPact L, PowerPact PowerPact J, PowerPact PowerPact H, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, ComPact ComPact NSX DC, ComPact ComPact NSX, Masterpact MasterPact NW, Masterpact MasterPact NT, Masterpact MasterPact MTZ
Complementary
Inrush current20 A 2 ms
Operating positionhorizontal
Rated power in W24 W
Width108 mm
Name of testconducted emissions on the power line conforming to EN 61000-6-3, radiated emissions conforming to EN 61000-6-3, surge conforming to EN/IEC 61000-4-5, rapid transient conforming to IEC 61000-4-4, radiated electromagnetic field conforming to EN/IEC 61000-4-3, primary outage conforming to IEC 61000-4-11, magnetic field conforming to EN 61000-4-8, induced electromagnetic field conforming to EN/IEC 61000-4-6, electrostatic discharges conforming to EN/IEC 61000-4-2
Power dissipation in W4.2 W
Input voltage limits170...264 V AC at 47.5-63 Hz
Permissible temporary current boost1.5 A (200 ms)
Depth67.5 mm
Status LED1 LED (green) output voltage
Trip unit nameMicroLogic
[Us] rated supply voltage200...240 V AC 50/60 Hz tolerance: +10 % -15 %
Operating altitude0...2000 m
Height90 mm
Overvoltage categoryIII conforming to UL 61010-1, IV conforming to IEC 62477-1
Power supply output current1 A
Output protection typethermal, protection technology: automatic reset, against short-circuits, protection technology: manual reset, against overvoltage, protection technology: 30...32 V, manual reset, against overload, protection technology: manual reset
Connections - terminalsscrew type terminals, connection capacity: 1 x 0.2...1 x 4 mm² AWG 24...AWG 12, screw type terminals, connection capacity: 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16
Power supply typeregulated switch mode
Efficiency85 %
Mounting support35 x 7.5 mm symmetrical DIN rail
Holding time>= 20 ms 200...240 V AC
Output voltage24 V DC +/-5 %
Environment
Compatibility codeCB_EXTERNAL_POWERSUPPLY
Relative humidity0-95 % in storage, 0-95 % during operation
Ambient air temperature for storage-50-85 °C
IP degree of protectionIP3x (housing) conforming to EN/IEC 60529, IP2X (connection terminals) conforming to EN/IEC 60529, IP4X (front face) conforming to EN/IEC 60529
MarkingUL, CE, EAC
Ambient air temperature for operation-25-70 °C
Dielectric strength1500 V between output and ground, 3000 V between input and output, 3000 V between input and ground
Environmental characteristicsafety conforming to SELV, safety conforming to IEC 62477-1, EMC conforming to EN/IEC 61000-6-3, EMC conforming to EN/IEC 61000-6-2
StandardsIEC 62477-1, UL 61010-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.5 cm
Package 1 Width11.1 cm
Package 1 Length12.7 cm
Package 1 Weight370.0 g
Unit Type of Package 22
Number of Units in Package 223
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight8.95 kg
Unit Type of Package 33
Number of Units in Package 3552
Package 3 Height105.0 cm
Package 3 Width80.0 cm
Package 3 Length120.0 cm
Package 3 Weight226.8 kg
