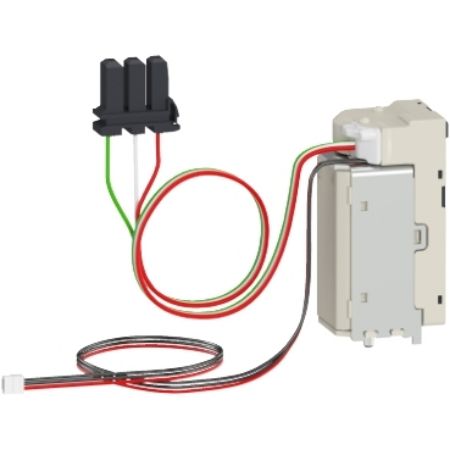

Picture of XF or MX voltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 200/250VAC 50/60Hz, 200/250VDC, spare part

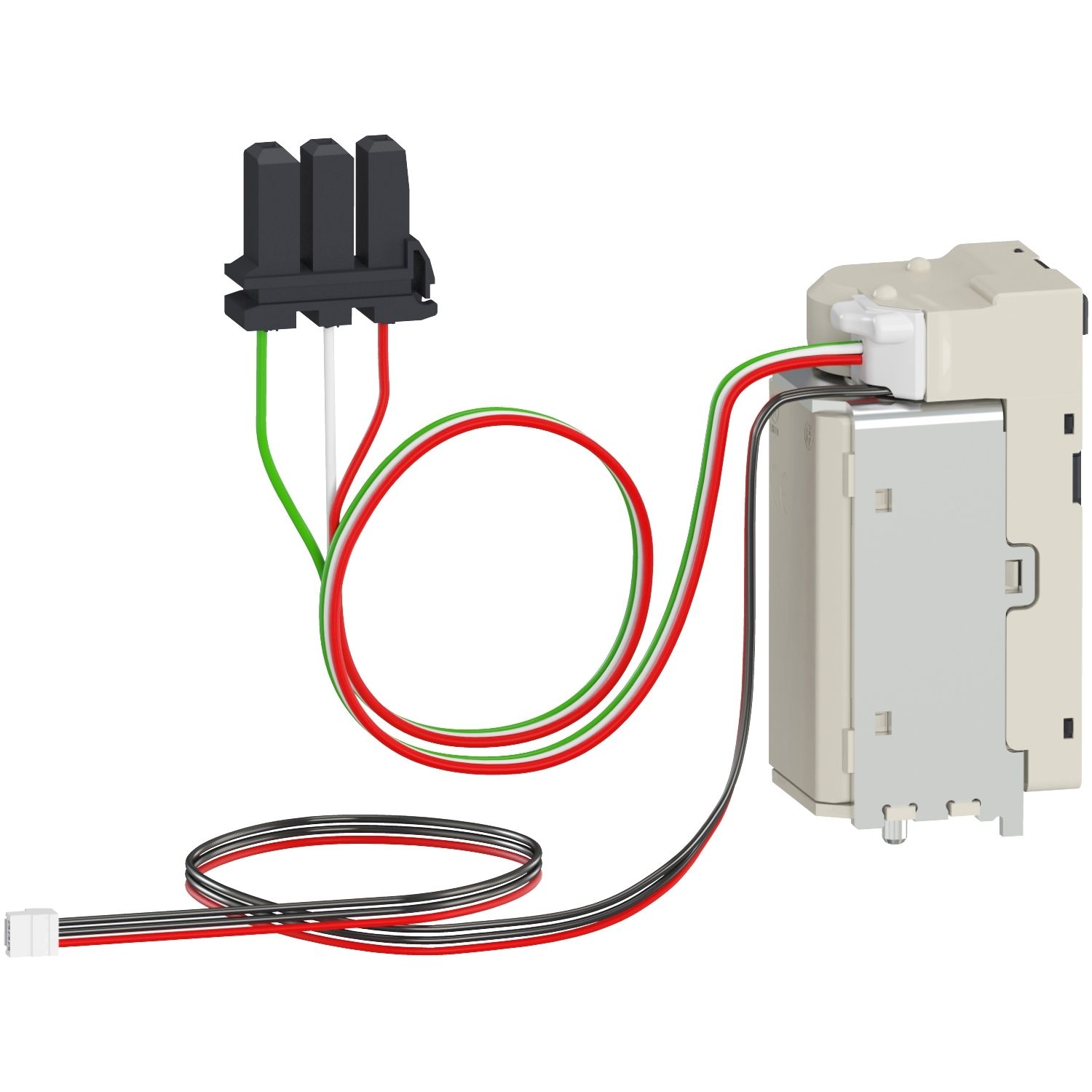

Picture of XF or MX voltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 200/250VAC 50/60Hz, 200/250VDC, spare part

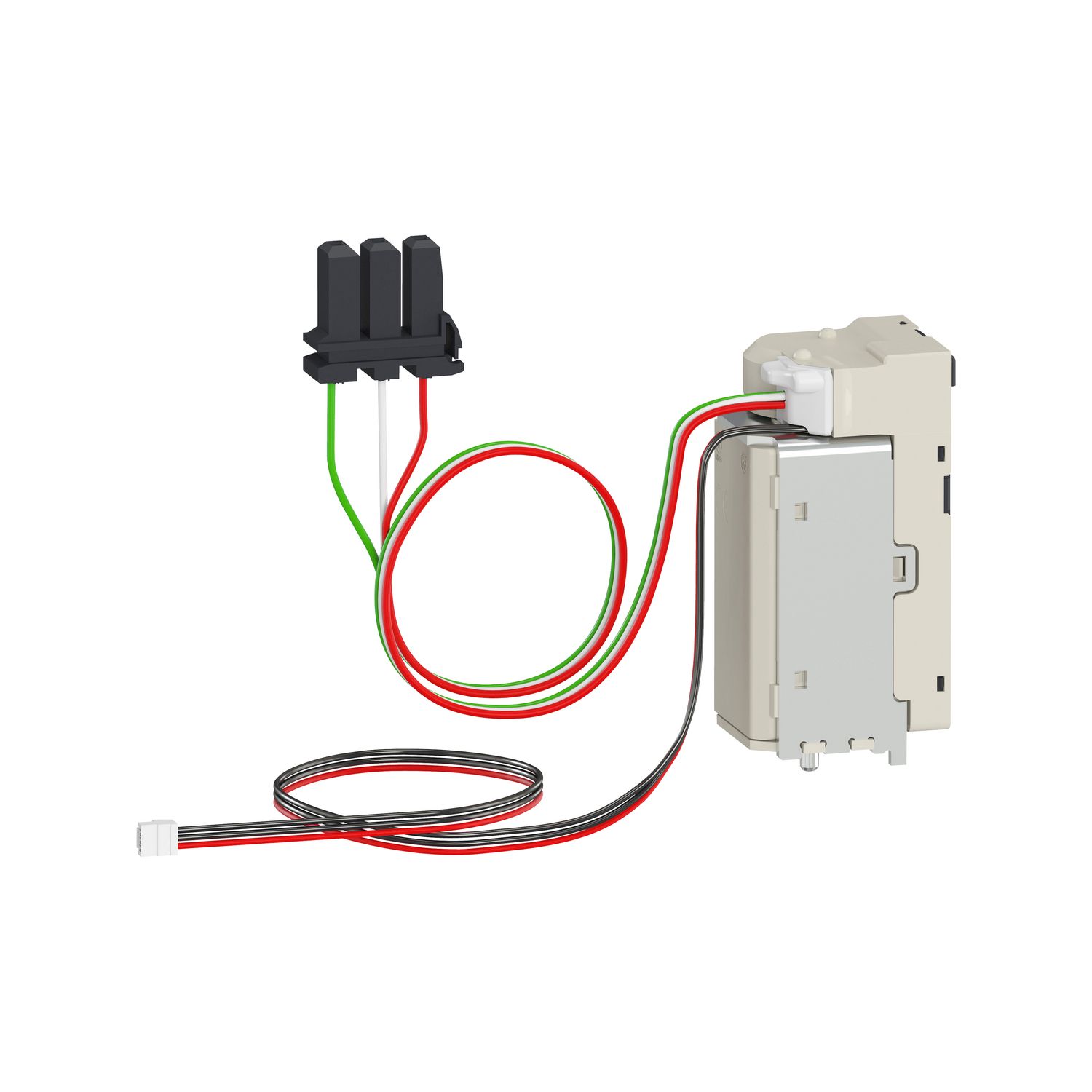

Picture of XF or MX voltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 200/250VAC 50/60Hz, 200/250VDC, spare part
SKU:

LV833036SP

XF or MX voltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 200/250VAC 50/60Hz, 200/250VDC, spare part

Old price: $1,019.70 INC GST
$815.76 INC GST
Available for Shipping : 08-Dec-2025
XF or MX voltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 200/250VAC 50/60Hz, 200/250VDC, spare part
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Circularity Profile
Catalog
Declaration of conformity
Instruction sheet
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device application control
Voltage release type opening coil, closing coil
Range MasterPacT
Product or component type voltage release
Range compatibility Masterpact MasterPact MTZ3 circuit-breaker, Masterpact MasterPact MTZ2 circuit-breaker, Masterpact MasterPact MTZ1 circuit-breaker
Complementary
Threshold tripping voltage 0.85...1.1 Un on closing, 0.7...1.1 Un on opening
Mounting mode fixed/drawout
Operating time 90 ms on closing for MasterPact MTZ3, 80 ms on closing for MasterPact MTZ2, 65 ms on closing for MasterPact MTZ1, 60 ms on opening for MasterPact MTZ3, 60 ms on opening for MasterPact MTZ2, 60 ms on opening for MasterPact MTZ1
Control type communicating
Offer type spare part
Provided equipment 1 instruction sheet
Supply holding power 4.5 W
[Uc] control circuit voltage 200/250 V DC, 200/250 V AC 50/60 Hz
Signalling function ready to close or open, electrical push-button activated, coil powered, error
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 6.0 cm
Package 1 Length 8.0 cm
Package 1 Weight 242.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.192 kg
