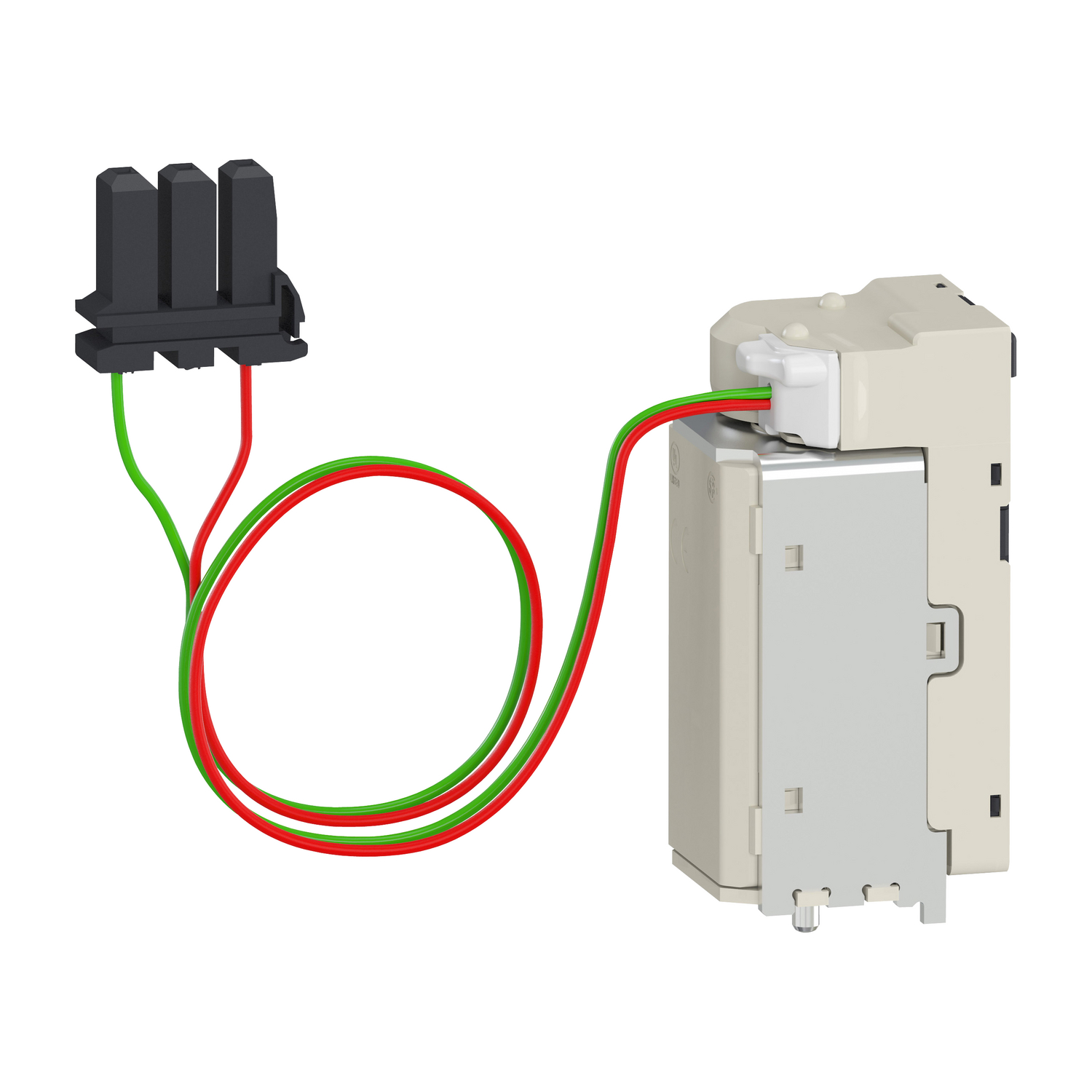

Picture of XF or MX voltage release, MasterPact MTZ1/MTZ2/MTZ3, standard, 200/250VAC 50/60Hz, 200/250VDC, spare part
Picture of XF or MX voltage release, MasterPact MTZ1/MTZ2/MTZ3, standard, 200/250VAC 50/60Hz, 200/250VDC, spare part
Picture of XF or MX voltage release, MasterPact MTZ1/MTZ2/MTZ3, standard, 200/250VAC 50/60Hz, 200/250VDC, spare part
SKU:

LV833662SP

XF or MX voltage release, MasterPact MTZ1/MTZ2/MTZ3, standard, 200/250VAC 50/60Hz, 200/250VDC, spare part

Old price: $724.90 INC GST
$579.92 INC GST
Available for Shipping : 08-Dec-2025
XF or MX voltage release, MasterPact MTZ1/MTZ2/MTZ3, standard, 200/250VAC 50/60Hz, 200/250VDC, spare part
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Circularity Profile
Instruction sheet
Catalog
Declaration of conformity
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device application control
Voltage release type opening coil, closing coil
Range MasterPacT
Product or component type voltage release
Range compatibility Masterpact MasterPact MTZ1 circuit-breaker, Masterpact MasterPact MTZ3 circuit-breaker, Masterpact MasterPact MTZ2 circuit-breaker
Complementary
Threshold tripping voltage 0.85...1.1 Un on closing, 0.7...1.1 Un on opening
Mounting mode fixed/drawout
Operating time 90 ms on closing for MasterPact MTZ3, 80 ms on closing for MasterPact MTZ2, 65 ms on closing for MasterPact MTZ1, 60 ms on opening for MasterPact MTZ3, 60 ms on opening for MasterPact MTZ2, 60 ms on opening for MasterPact MTZ1
Offer type spare part
Provided equipment 1 instruction sheet
Supply holding power 4.5 W
[Uc] control circuit voltage 200...250 V DC, 200...250 V AC 50/60 Hz
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 6.200 cm
Package 1 Length 8.500 cm
Package 1 Weight 166.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.340 kg
