Distribution block, Linergy DX, 4P, 63A, 4 modules, 24 holes, quick connection top

Please Contact Sales to buy this Product. click here
Product Selector
Distribution block, Linergy DX, 4P, 63A, 4 modules, 24 holes, quick connection top
  • Very fast connection
  • Very simple phase rebalancing
  • In the event of an extension to or modification of the switchboard, connection is very easy
  • The appearance of its front panel enables it to fit in on a row perfectly, alongside modular devices
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
User guide
Declaration of conformity
Product Page Link
Product Data Sheet

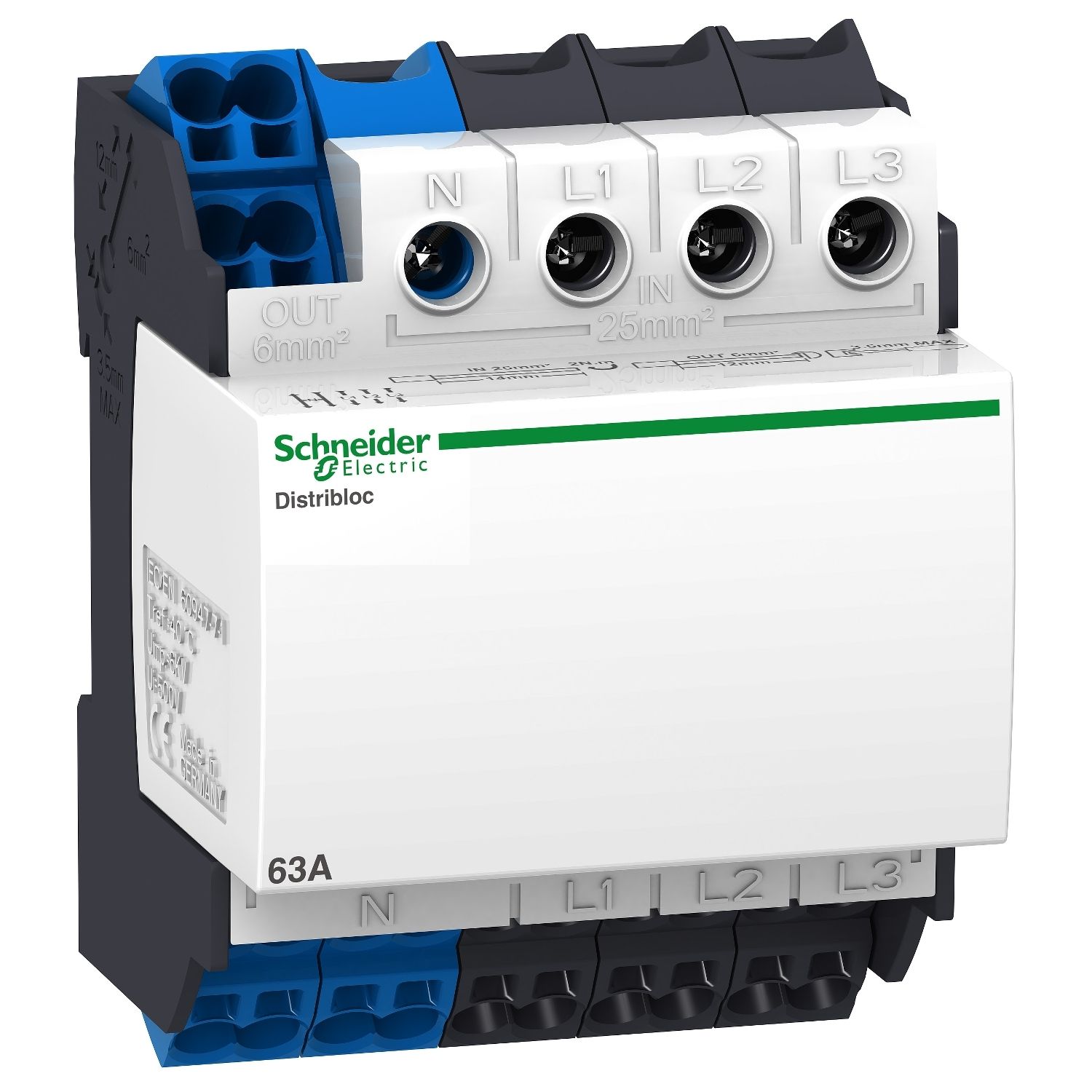

This Linergy DX distribution block can be installed on a DIN rail. It is compatible with Prisma, PrismaSeT, Pragma enclosures ans Spacial enclosures. It is dedicated to 4P installation. It provides tunnel type terminal for the supply circuit with a cable cross section of 16mm² for flexible cables or 25mm² for rigid cables. It provides 24 holes for quick connections at the top of the product. 12 spring terminal outgoers for phase and 12 spring terminal outgoers for neutral are available for distribution part. The allowed cable cross section is comprised betrween 2.5mm² and 6mm² for flexible and rigid cables. The Ue rated operational voltage is 440VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The In rated operational current is 63A. It provides IPxx B degree of protection. Its resistance to incandescent wire is 960°C. It is intented for residential or small commercial buildings. Its width takes 4 modules of 18mm. Its weight is 290g. It complies with IEC60947-7-1 and IEC61439-1 standards.

Products specifications

Attribute nameAttribute value
Main
IP degree of protectionIPxx B
Product compatibilitySpacial enclosures
RangeLinergy
Product nameLinergy DX
Product or component typedistribution block
Range compatibilityPragma, PrismaSeT, Prisma
Complementary
Depth62 mm
Market segmentresidential, small buildings, small commercial
Width72 mm
[Uimp] rated impulse withstand voltage6 kV
Location of connectiontop
Compatibility codeDISTRIBLOC
Poles description4P
[Ie] rated operational current63 A at 40 °C
[Ui] rated insulation voltage500 V AC
Net weight0.29 kg
9 mm pitches8
Total number of 18 mm modules4
Mounting supportDIN rail
[Ue] rated operational voltage440 V AC
Height96.5 mm
[In] rated current63 A at 40 °C
Connections - terminalsdistribution: spring terminal (neutral) , 12 x 2.5-6 mm² (rigid) , distribution: spring terminal (neutral) , 12 x 2.5-6 mm² (flexible) , distribution: spring terminal (phase) , 12 x 2.5-6 mm² (rigid) , distribution: spring terminal (phase) , 12 x 2.5-6 mm² (flexible) , supply: tunnel type terminal25-25 mm² (rigid) , supply: tunnel type terminal16-16 mm² (flexible)
Environment
Resistance to incandescent wire960 °C conforming to IEC 60695-2-11
StandardsIEC 61439-1, IEC 61439-2, IEC 60947-7-1
Pollution degree3
Product certificationsASEFA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.5 cm
Package 1 Width7.5 cm
Package 1 Length10.5 cm
Package 1 Weight328.0 g
Unit Type of Package 22
Number of Units in Package 230
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight10.148 kg
