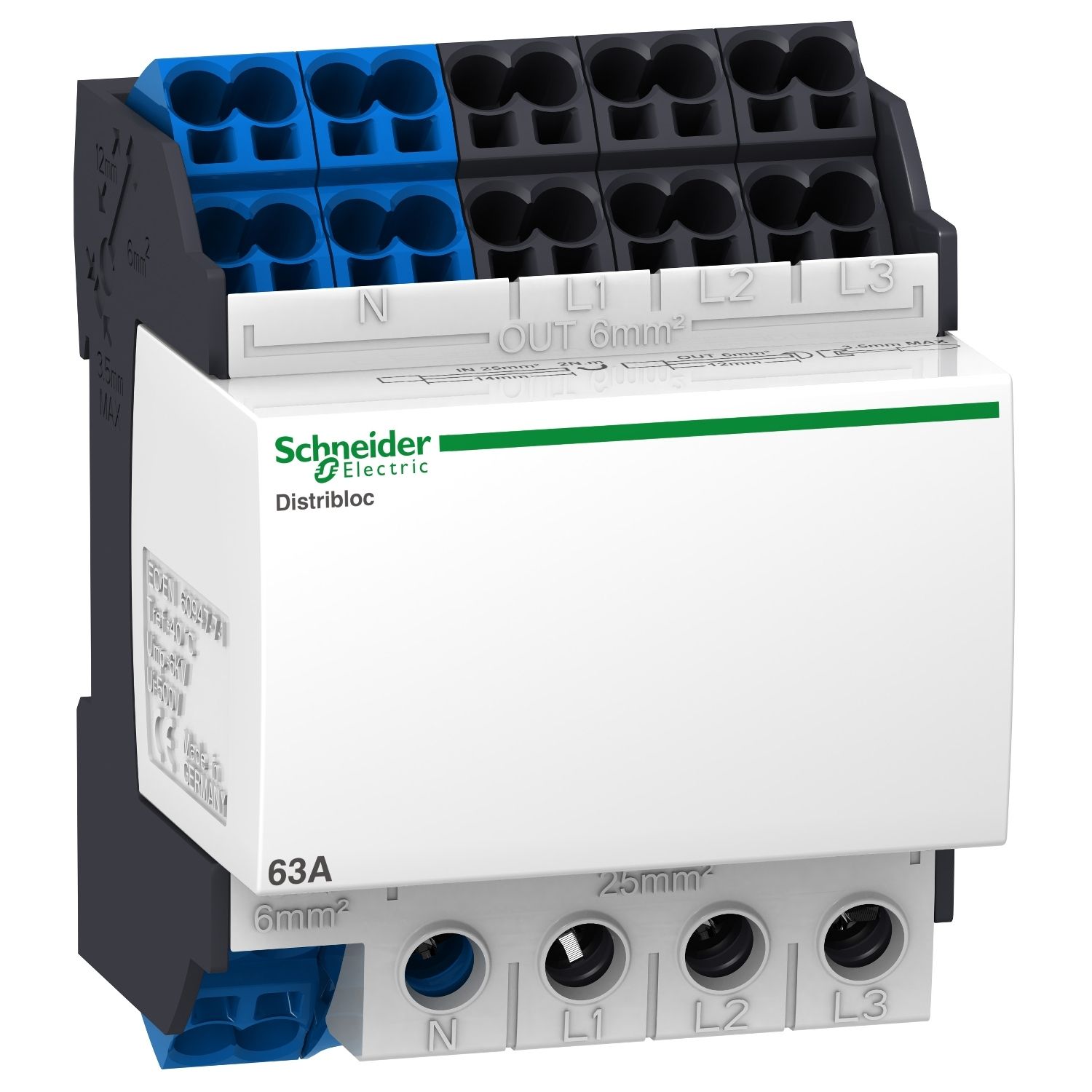

Distribution block, Linergy DX, 4P, 63A, 4 modules, 24 holes, quick connect bottom

$661.32 INC GST
Available for Shipping : 27-May-2025
Product Selector
Distribution block, Linergy DX, 4P, 63A, 4 modules, 24 holes, quick connect bottom
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This Linergy DX distribution block can be installed on a DIN rail. It is compatible with Prisma, PrismaSeT, Pragma enclosures ans Spacial enclosures. It is dedicated to 4P installation. It provides tunnel type terminal for the supply circuit with a cable cross section of 16mm² for flexible cables or 25mm² for rigid cables. It provides 24 holes for quick connections at the botom of the product. 12 spring terminal outgoers for phase and 12 spring terminal outgoers for neutral are available for distribution part. The allowed cable cross section is comprised betrween 2.5mm² and 6mm² for flexible and rigid cables. The Ue rated operational voltage is 440VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The In rated operational current is 63A. It provides IPxx B degree of protection. Its resistance to incandescent wire is 960°C. It is intented for residential or small commercial buildings. Its width takes 4 modules of 18mm. Its weight is 290g. It complies with IEC60947-7-1 and IEC61439-1 standards.

Products specifications

Attribute name Attribute value
Main
IP degree of protection IPxx B
Product compatibility Spacial enclosures
Range Linergy
Product name Linergy DX
Product or component type distribution block
Range compatibility Pragma, PrismaSeT, Prisma
Complementary
Depth 62 mm
Market segment small commercial, small buildings, residential
Width 72 mm
[Uimp] rated impulse withstand voltage 6 kV
Location of connection bottom
Compatibility code DISTRIBLOC
Poles description 4P
[Ie] rated operational current 63 A at 40 °C
[Ui] rated insulation voltage 500 V AC
Net weight 0.29 kg
9 mm pitches 8
Total number of 18 mm modules 4
Mounting support DIN rail
[Ue] rated operational voltage 440 V AC
Height 96.5 mm
[In] rated current 63 A at 40 °C
Connections - terminals distribution: spring terminal (neutral) , 12 x 2.5-6 mm² (rigid) , distribution: spring terminal (neutral) , 12 x 2.5-6 mm² (flexible) , distribution: spring terminal (phase) , 12 x 2.5-6 mm² (rigid) , distribution: spring terminal (phase) , 12 x 2.5-6 mm² (flexible) , supply: tunnel type terminal25-25 mm² (rigid) , supply: tunnel type terminal16-16 mm² (flexible)
Environment
Resistance to incandescent wire 960 °C conforming to IEC 60695-2-11
Standards IEC 61439-1, IEC 61439-2, IEC 60947-7-1
Pollution degree 3
Product certifications ASEFA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.700 cm
Package 1 Width 7.800 cm
Package 1 Length 10.200 cm
Package 1 Weight 312.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.883 kg
