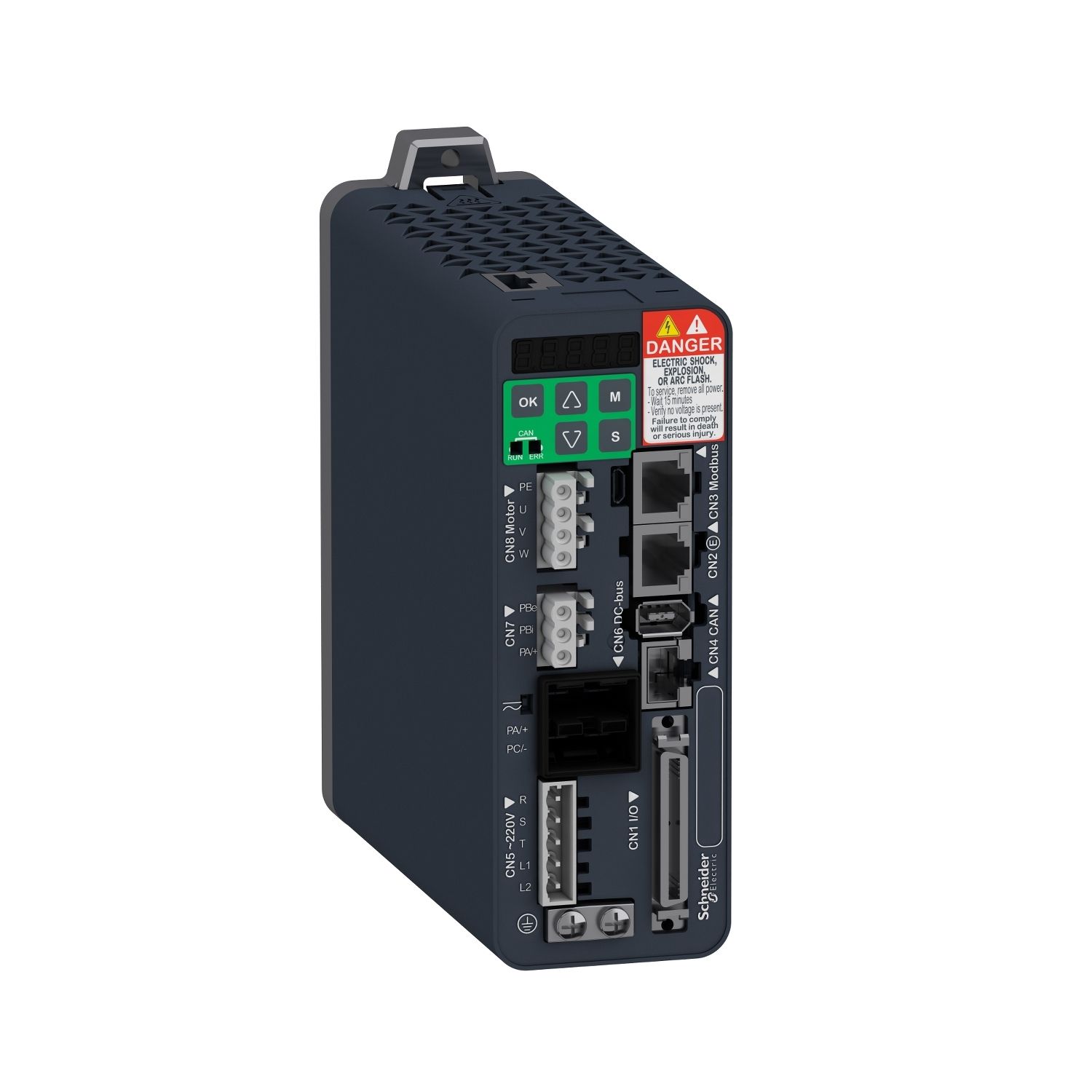

Picture of motion servo drive, Lexium 28, sercos, single and three phase, 200 to 240V, 50W
SKU:

LXM28SUA5M3X

motion servo drive, Lexium 28, sercos, single and three phase, 200 to 240V, 50W

Please Contact Sales to buy this Product. click here
motion servo drive, Lexium 28, sercos, single and three phase, 200 to 240V, 50W
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 20-Oct-2024
Product environmental
User guide
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The motion servo drive without EMC filter, features an HMI interface 7-segment display with 5 buttons. Thanks to its open communication concept, Lexium 28 servo drive can be easily integrated into numerous different control system architectures. The motion servo drives embed one pulse-train-input PTI and one pulse train-output PTO interfaces. It is a motion servo drive with a rated supply voltage of 220V (single phase and three phase), an output current of 2.0A at 220V, a power of 50W/0.067HP and a continuous power of 50W at 220V. It is furnished with spring terminal for electrical connection and RJ45 connectors for Sercos integrated communication interface. It is an IP20 rated product. Its dimensions are 55mm (Width) x 146mm (Depth) x 150mm (Height). It weighs 1kg. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with motor BCH2 (40mm, 1 motor stacks) at 50W. Mount this servo drive in a vertical position (more or less 10°). This is required for cooling the device. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 motors, optimized servo bundles for compact machines.

Products specifications

Attribute nameAttribute value
Main
Device short nameLXM28S
Range of productLexium 28
Product or component typemotion servo drive
Format of the drivecompact housing
Line current0.8 A 227 % at 220 V, three phase, 0.8 A 262.8 % at 220 V, single phase
Complementary
Drive voltage drop coefficient1
Continuous power50 W at 220 V
Protection typeoverspeed: motor, overload: motor, overheating: motor, undervoltage: motor, overvoltage: motor, overcurrent: motor, against short-circuits: outputs signal, against reverse polarity: inputs signal
Switching frequency 316 kHz
Switching frequency 216 kHz
Continuous output current0.64 A at 16 kHz
EMC filterwithout EMC filter
Operating positionvertical
Output voltage<= power supply voltage
Control signal typeservo motor encoder feedback CN2
Method of accessslave
Supply voltage limits170-255 V single phase, 200-255 V three phase
Type of coolingnatural convection
Supply voltage descriptionthree phase 220 V AC 50...60 Hz, single phase 220 V AC 50...60 Hz
Electrical connectionspring terminal, clamping capacity: 0.82...1 mm², AWG 18 (PA/+, PBe), spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (U, V, W, PE), spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (R, S, T), spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (L1-L2)
Communication interfaceSERCOS III, integrated, Modbus, integrated
Output current 3s peak 32 A at 220 V
Output current 3s peak 22 A at 220 V
MarkingcULus, CSA, CE
Discrete output voltage12...24 V DC
Transmission rate9600 bauds...115200 bauds (automatic detection) for bus length of 100-100 m
Discrete input voltage24 V DC for logic
Status LED1 LED (red) error, 1 LED (green) RUN, 1 LED (red) charge
Product compatibilityservo motor BCH2 (40 mm, 1 motor stacks) at 50 W
Height150 mm
Safety levelSIL 2 conforming to IEC 62061: 2012, SIL 2 conforming to IEC 60204-1: 2010/AC, SIL 2 conforming to IEC 60204-1: 2009/A1, SIL 2 conforming to IEC 60204-1: 2006, SIL 2 conforming to ISO 13849-1: 2009/AC, PL d/category 3 conforming to ISO 13849-1: 2008, SIL 2 conforming to IEC 61508-1: 2010, SIL 2 conforming to IEC 61800-5-2: 2007
Supply frequency50/60 Hz - 5...5 %
Network number of phases3, 1, three phase, single phase
Nominal power0.05 kW at 220 V 16 kHz
Depth146 mm
Overvoltage categoryIII
Width55 mm
Maximum leakage current1.3 mA
Safety functionSTO (safe torque off), integrated
Field weakeningFalse
Emc filter compatibilitytype 022, type 020
Communication iinterfaceSERCOS III, pulse train output
Discrete output logicpositive or negative (CN1)
Switching frequency16 kHz
Net weight1 kg
Connector typeRJ45 (CN4), RJ45 (CN3)
Signalling functionservo status and fault codes five 7-segment display units
Discrete input number1 safety function STO (CN9), 2 fast capture (CN1), 8 programmable (CN1)
Discrete output number1 pulse train output (PTO) (CN1), 4 logic output (CN1) at 12...24 V DC
Output current 3s peak2 A at 220 V
Electrical isolationbetween power and control
Continuous output current 30.64 A
Continuous output current 20.64 A
Discrete input logicpositive or negative (CN1)
Type of cableshielded motor cable (temperature: 0-55 °C) copper
Network frequency47.5...63 Hz
[Us] rated supply voltage200...240 V (- 20...15 %) for single phase, 200...240 V (- 10...15 %) for three phase
Environment
IP degree of protectionIP20
Relative humidity5-95 % without condensation
Ambient air temperature for storage-25-65 °C
Electromagnetic compatibilityconducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Ambient air temperature for operation0-55 °C
Operating altitude> 1000...2000 m 1 % per 100 m, <= 1000 m without derating
Shock resistance10 gn, type I conforming to IEC 60721-3-3
Vibration resistance3M4 amplitude = 3 mm (f = 9-200 Hz) conforming to IEC 60721-3-3
StandardsIEC 61800-5-1
Product certificationscULus, CE, CSA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.5 cm
Package 1 Width23.0 cm
Package 1 Length23.7 cm
Package 1 Weight1.283 kg
Unit Type of Package 22
Number of Units in Package 25
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight7.041 kg
