Picture of TeSys, Ultra compact starter, TeSys Hybrid, 3P, 500VAC, 0.75kW at 400V, 24VDC
SKU:

LZ1H2X4BD

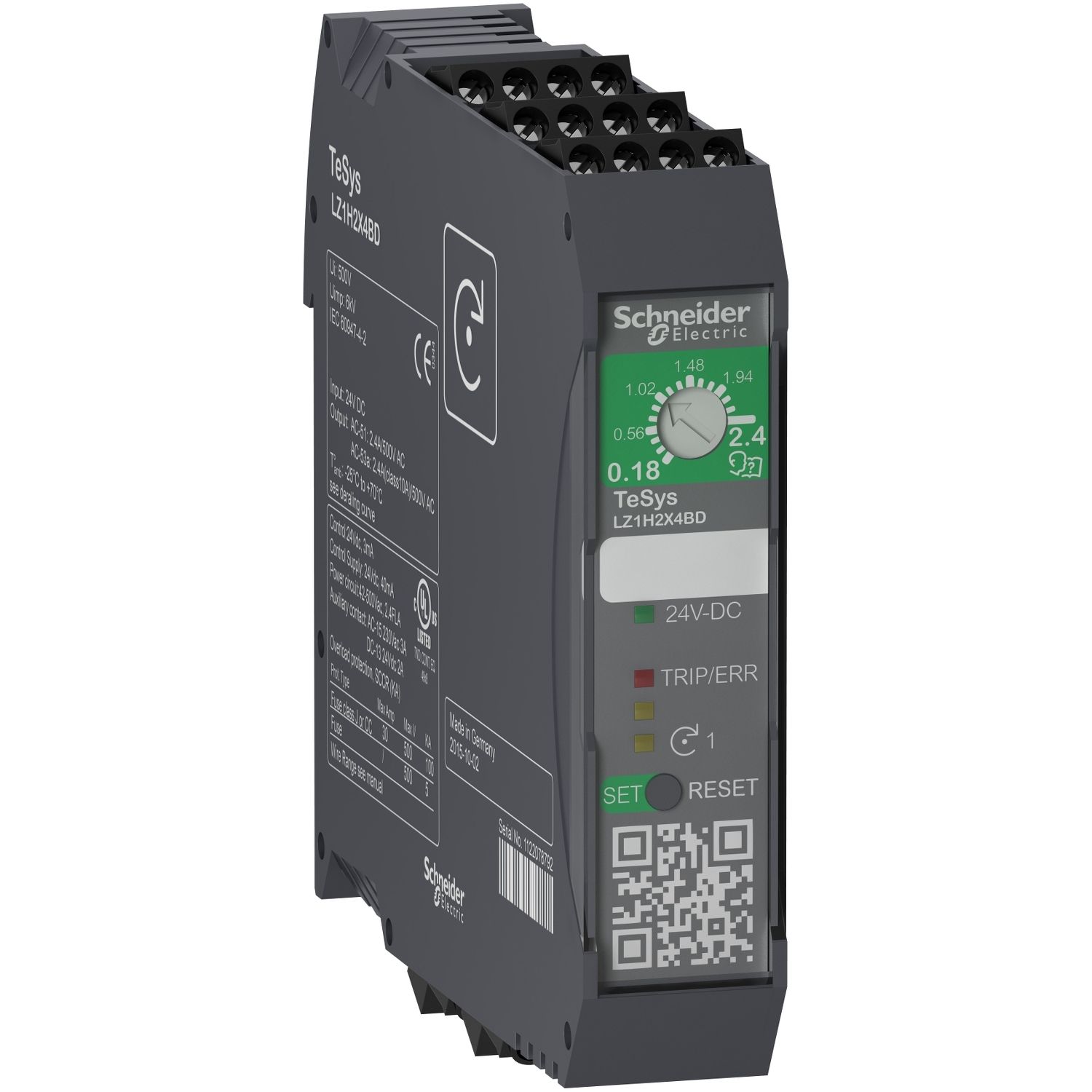

TeSys, Ultra compact starter, TeSys Hybrid, 3P, 500VAC, 0.75kW at 400V, 24VDC

$431.86
Available for Shipping : 10-Dec-2024
TeSys, Ultra compact starter, TeSys Hybrid, 3P, 500VAC, 0.75kW at 400V, 24VDC
  • Provides logic inputs for ON/OFF motor running and remote reset after thermal tripping
  • LED status on front face for indication of tripping and motor running
  • Long electrical life, can perform 30 million AC53a electrical cycles which make it reliable
  • Up to 75% space reduction, which makes it suitable for all control cabinets
  • 60% reduction of installation time by having embedded functions in one slim body
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Declaration of conformity
Catalogue
User guide
End of life manual
Product Page Link
Product Data Sheet
TeSys H ultra compact direct starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for one direction of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for ON/OFF motor running and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, screw terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LZ1H
[Ie] rated operational current 2.4 A at 500 V AC-53A mounting side by side, 2.4 A at 500 V AC-51 mounting side by side, 2.4 A at 500 V AC-53A, 2.4 A at 500 V AC-51
Motor starter type direct on line
Range TeSys
Motor power kW 1.1 kW at 500 V AC 0.65 , 0.75 kW at 440 V AC 0.65 , 0.75 kW at 415 V AC 0.65 , 0.75 kW at 400 V AC 0.65 , 0.75 kW at 380 V AC 0.65 , 0.37 kW at 230 V AC 0.65 , 0.37 kW at 220 V AC 0.65
Thermal overload class class 10A conforming to IEC 60947-4-2
Motor power hp 1 hp at 460 V AC, 0.5 hp at 230 V AC, 0.5 hp at 200 V AC
Poles description 3P
Product name TeSys Hybrid
Product or component type ultra-compact starter
Thermal protection adjustment range 0.18-2.4 A
[Ue] rated operational voltage 500 V AC
[Uc] control circuit voltage 24 V DC
Complementary
Tightening torque 0.5-0.6 N.m flat Ø 2.5 mm screwdriver 3 mm
Control circuit voltage limits 19.2...30 V DC
Auxiliary contact composition 1 C/O fault signalling
Mounting mode by clips
Pollution degree 2
Height 99 mm
Electrical durability 30 Mcycles
Depth 114.5 mm
Width 22.5 mm
Certifications cULus, CE
Maximum operating rate 6 cyc/mn AC-53A 50 % ON, 120 cyc/mn AC-51 50 % ON
[Ui] rated insulation voltage 500 V AC 50/60 Hz
Current consumption <= 40 mA at 24 V DC
Connections - terminals screw clamp terminals 1 cable(s) 0.2-2.5 mm² - flexible - without cable end, screw clamp terminals 1 cable(s) 0.25-2.5 mm² - flexible - with cable end, screw clamp terminals 1 cable(s) 0.2-2.5 mm² - rigid
[Uimp] rated impulse withstand voltage 6 kV
Net weight 212 g
Mounting support DIN rail
Standards UL 60947-4-1, IEC 60947-4-2
Reset electrical reset, automatic reset, manual
Environment
IP degree of protection IP20
Protective treatment TC
Ambient air temperature for storage -40-80 °C
Ambient air temperature for operation -25-70 °C without derating
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 11.7 cm
Package 1 Length 12.0 cm
Package 1 Weight 253.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.699 kg
