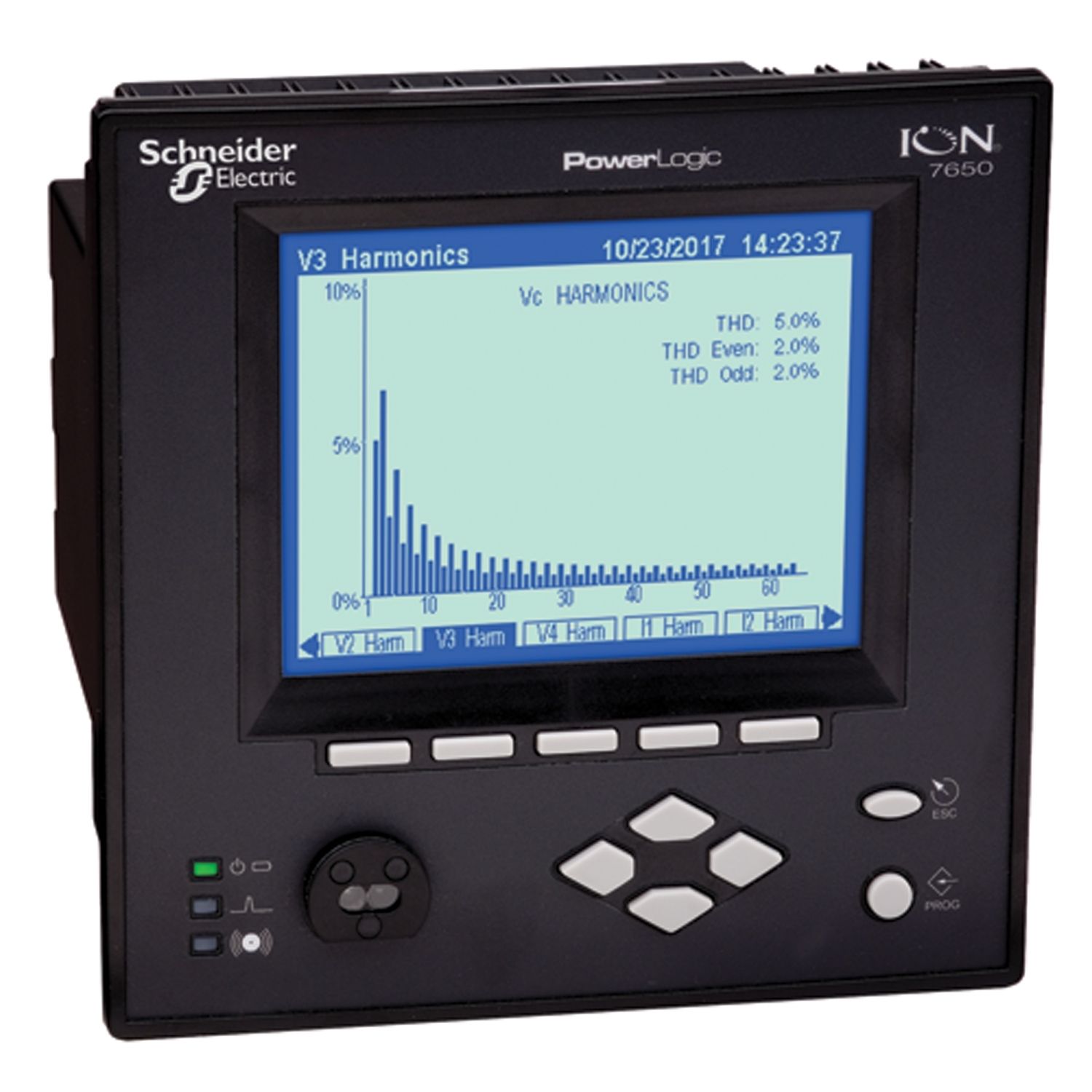

Picture of ION7650, wDispl, 5MB 1024s, 1A 240VAC/300VDC 50Hz - RS+T2+E+F - 8I+3R+4O
SKU:

M7650A1E0B5F1A0E

ION7650, wDispl, 5MB 1024s, 1A 240VAC/300VDC 50Hz - RS+T2+E+F - 8I+3R+4O

$29,518.80
Availability: Please contact our sales team on 1300 724 622.
ION7650, wDispl, 5MB 1024s, 1A 240VAC/300VDC 50Hz - RS+T2+E+F - 8I+3R+4O
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name ION7650
Range PowerLogic
Product name PowerLogic ION7650
Product or component type energy and power quality meter
Range of product PowerLogic
Complementary
Maximum power consumption in VA 45 VA
Accuracy class class 0.2S energy conforming to IEC 62053-22
Device application tariff metering, demand and power factor control, equipment monitoring and control, co-generation and IPP monitoring, energy pulsing and totalisation, instrument transformer correction, load curtailment
Transmission rate 10/100 Mbit/s, <= 115.2 kbits/s
Display type backlit LCD
Web services web server
Analogue input type current 0.005...20 A (impedance 0.015 Ohm)
[In] rated current 1 A
[Us] rated supply voltage 85...240 V AC 47...63 Hz, 110...300 V DC
Data recording time stamping, event logs, trending/forecasting, data logs, GPS synchronisation, sequence of event recording, min/max of instantaneous values
Compatibility code ION7650
Poles description 3P, 1P + N, 3P + N
Measurement accuracy energy 0.2 %, voltage 0.1 % 57...288 V, current 0.1 % 1...5 A
Measurement current 0-1 A
Tamperproof of settings protected by access code
Number of inputs 8 digital 120 V DC
Power consumption in VA 20 VA
Market segment industry network management: main incomer, healthcare network management: main incomer, data center network management: main incomer, buildings multi-site network management: main incomer, buildings large building network management: main incomer, utility: grid
Display resolution 320 x 240 pixels QVGA
Frequency measurement range 42-69 Hz
Communication port protocol TCP/IP at 10/100 Mbit/s, IEC 61850, Modbus at <= 115.2 kbits/s, ION at <= 115.2 kbits/s, DNP3 at <= 115.2 kbits/s, Telnet
Type of measurement reactive power per phase, reactive power total, active power per phase, active power total, power factor per phase, apparent power per phase, power factor total, apparent power total, frequency, voltage, current
Number of outputs 4 solid state, 3 relay
Memory capacity 5 MB
Sampling rate 1024 samples/cycle
Measurement voltage 57-347 V AC phase to neutral, 100-600 V AC phase to phase
Power quality analysis conforming to EN 50160 compliance report,  conforming to IEC 61000-4-30: class A power quality measurement,  up to the 63rd harmonic,  setpoint learning,  programmablity (logic and math functions),  disturbance direction detection,  dip and swell, transient,  compliance monitoring,  waveform capture, voltage sag and swell detection, harmonic distortion
Communication port support SC: fiber optic, SUB-D 9: RS232, infrared, RS485
Network frequency 50 Hz
Environment
Operating altitude 0...2000 m
Depth 174 mm
Overvoltage category III
Width 192 mm
IP degree of protection IP50 front face: conforming to IEC 60529, IP30 back: conforming to IEC 60529
Mounting support enclosure door
Relative humidity 5-95 %
Ambient air temperature for storage -40-85 °C
Pollution degree 2
Mounting mode flush-mounted
Type of installation indoor installation
Net weight 1.9 kg
Electromagnetic compatibility conducted and radiated emissions B conforming to CISPR 22, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5, susceptibility to electromagnetic fields conforming to IEC 61000-4-3, electrostatic discharge conforming to IEC 61000-4-2, electrical fast transient/burst immunity test conforming to IEC 61000-4-4
Standards IEC 61010-1
Height 192 mm
Ambient air temperature for operation -20-70 °C
