Multi9 - shunt trip release with OC - MX + OF - 110/415 V AC - 110/130 V DC

$154.30
Available for Shipping : 03-Dec-2024

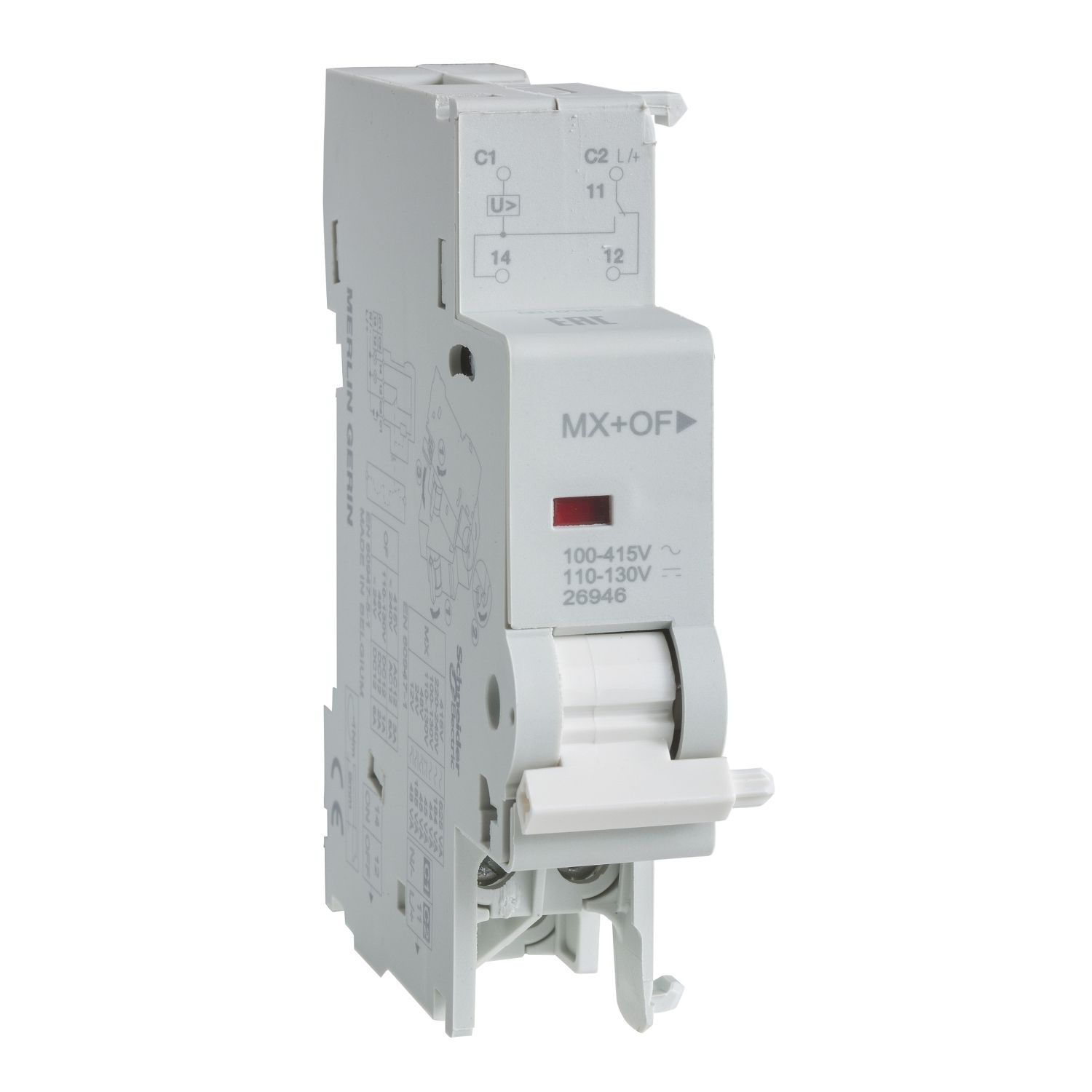

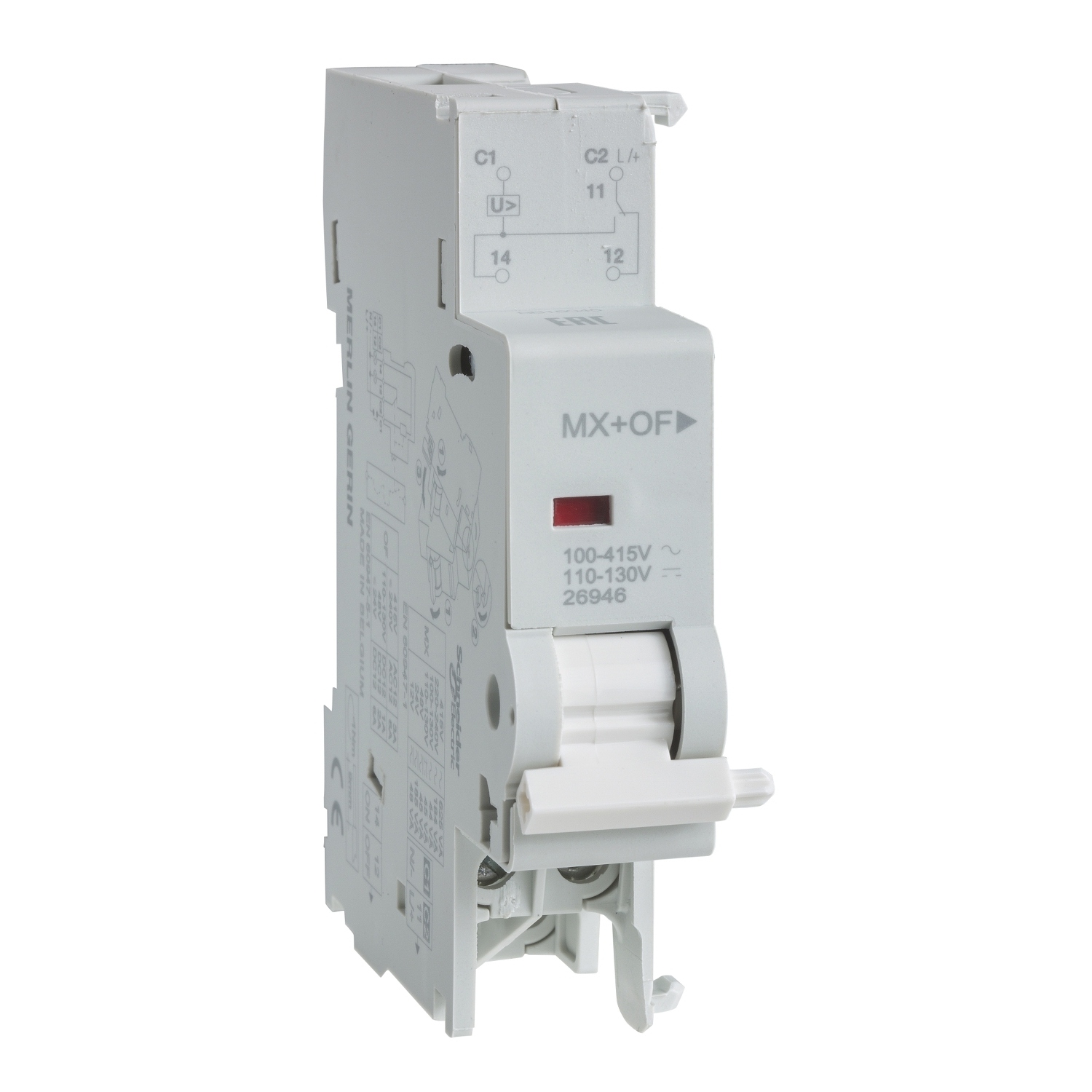

Multi9 - shunt trip release with OC - MX + OF - 110/415 V AC - 110/130 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This Acti9 MX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 110...415VAC or 110...130VDC . It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with EN/IEC 60947-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name MX + OF
Signal contacts composition 1 C/O
Range Multi9
Product or component type shunt trip release with OC contact
9 mm pitches 2
Range of product C60SP, C60BPR, GFP, C60BP
[Uc] control circuit voltage 110...130 V DC, 110...415 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m bottom
Depth 68 mm
Width 18 mm
Local signalling action indicator
Mounting mode fixed
Connections - terminals clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² (AWG 16) - rigid, clamp terminal (bottom) - 1 cable(s) 2.5-2.5 mm² (AWG 14) - rigid
Wire stripping length 9 mm for bottom connection
Net weight 0.065 kg
Comb busbar and distribution block compatibility top: YES
Range compatibility Multi 9 Multi9 C60H-DC C60H-DC, Multi 9 Multi9 GFP GFP, Multi 9 Multi9 C60 C60SP, Multi 9 Multi9 C60 C60BPR, Multi 9 Multi9 C60 C60BP
Mounting support DIN rail
Height 82.5 mm
Environment
Ambient air temperature for storage -40-85 °C
Pollution degree 3
Standards GB/T 14048.5, C22.2 No. 235, C22.2 No. 5, UL 1077, UL 489, EN/IEC 60947-5-1, EN/IEC 60947-1
Ambient air temperature for operation -25-50 °C
Product certifications UR, PCT, UL, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 7.800 cm
Package 1 Length 9.400 cm
Package 1 Weight 70.900 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.500 cm
Package 2 Width 10.000 cm
Package 2 Length 26.500 cm
Package 2 Weight 633.000 g
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.932 kg
