Multi9 - shunt trip release with OC contact - MX + OF - 12/24 V AC - 12/24 V DC

$154.30
Available for Shipping : 03-Dec-2024
Multi9 - shunt trip release with OC contact - MX + OF - 12/24 V AC - 12/24 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

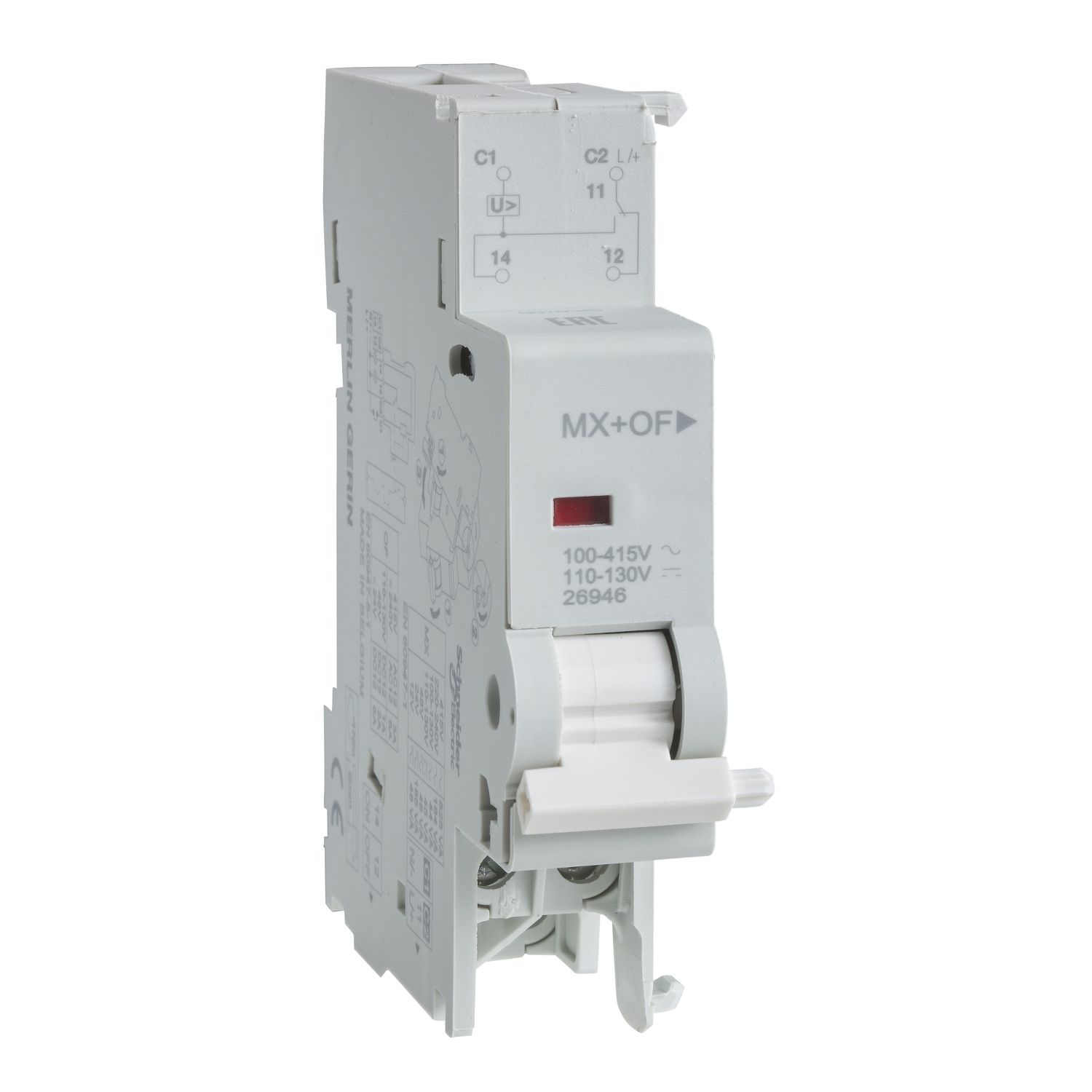

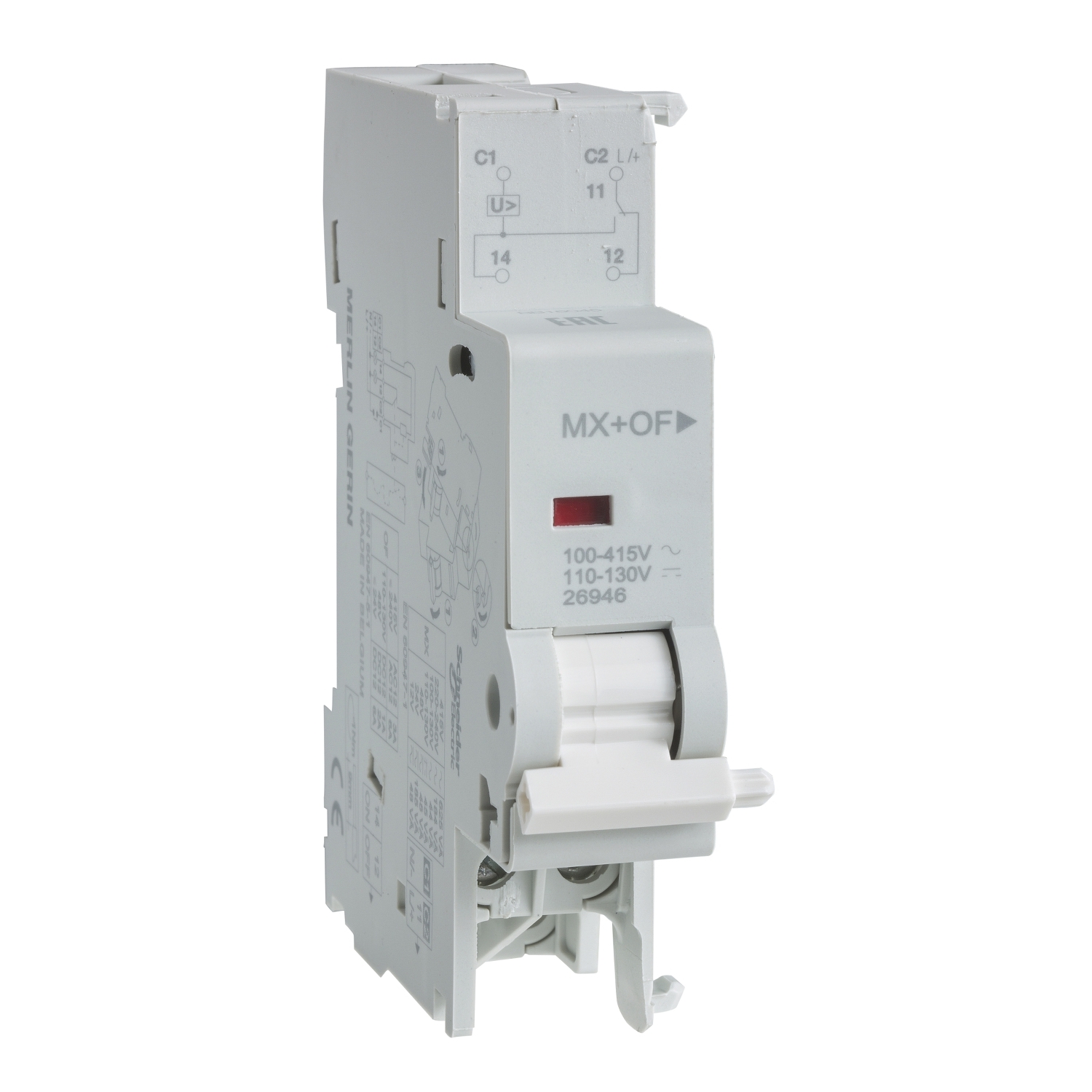

This Acti9 MX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 12…24VAC or 12…24VDC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with EN/IEC 60947-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name MX + OF
Signal contacts composition 1 C/O
Range Multi9
Product or component type shunt trip release with OC contact
9 mm pitches 2
Range of product C60BP, C60BPR, C60SP, GFP
[Uc] control circuit voltage 12...24 V DC, 12...24 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m bottom
Depth 68 mm
Width 18 mm
Local signalling action indicator
Mounting mode fixed
Connections - terminals clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² (AWG 16) - rigid, clamp terminal (bottom) - 1 cable(s) 2.5-2.5 mm² (AWG 14) - rigid
Wire stripping length 9 mm for bottom connection
Net weight 0.065 kg
Range compatibility Multi 9 Multi9 C60H-DC C60H-DC, Multi 9 Multi9 GFP GFP, Multi 9 Multi9 C60 C60SP, Multi 9 Multi9 C60 C60BPR, Multi 9 Multi9 C60 C60BP
Mounting support DIN rail
Height 82.5 mm
Environment
Ambient air temperature for storage -40-85 °C
Pollution degree 3
Standards GB/T 14048.5, C22.2 No. 235, C22.2 No. 5, UL 1077, UL 489, EN/IEC 60947-5-1, EN/IEC 60947-1
Ambient air temperature for operation -25-50 °C
Product certifications UR, UL, PCT, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3 cm
Package 1 Width 8 cm
Package 1 Length 9.4 cm
Package 1 Weight 75 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.6 cm
Package 2 Width 10 cm
Package 2 Length 26.5 cm
Package 2 Weight 660 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 6.422 kg
