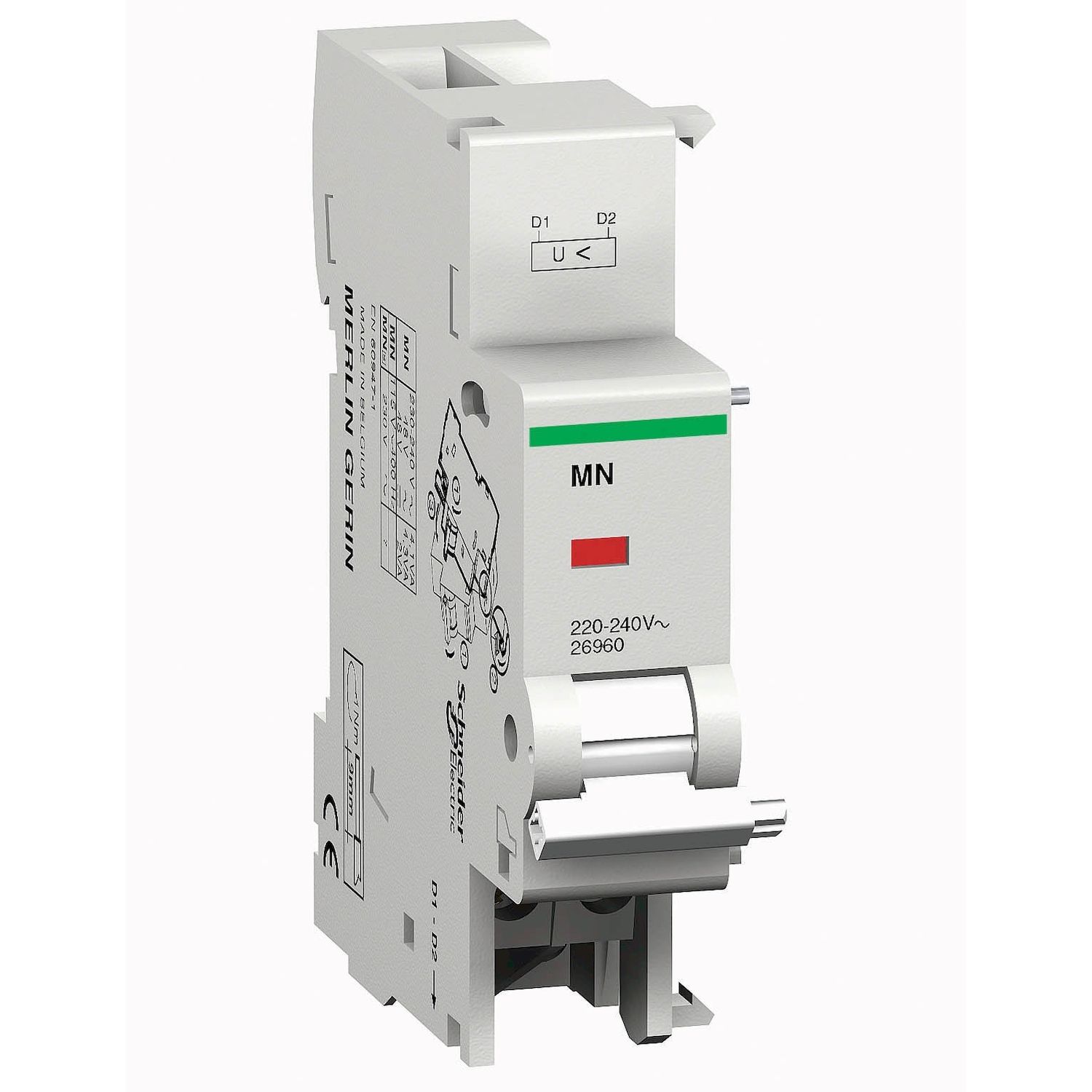

Picture of Multi9 - undervoltage release - MN - 220/240 V AC
SKU:

M9A26960

Multi9 - undervoltage release - MN - 220/240 V AC

$154.30
Available for Shipping : 03-Dec-2024
Multi9 - undervoltage release - MN - 220/240 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Declaration of conformity
Catalogue
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This Acti9 MN electrical auxiliary is a undervoltage release device. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. It prevents device closing again until its input voltage has been restored. The width in 9mm pitches is 2. The Uc control circuit voltage is 220…240VAC or 24VDC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with EN/IEC 60947-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name MN
Control type standard
Range Multi9
Product or component type undervoltage release
9 mm pitches 2
Range of product C60BP, C60SP, GFP, C60BPR
[Uc] control circuit voltage 220...240 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m bottom
Depth 68 mm
Width 18 mm
Local signalling action indicator
Mounting mode fixed
Connections - terminals clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² (AWG 16) - rigid, clamp terminal (bottom) - 1 cable(s) 2.5-2.5 mm² (AWG 14) - rigid
Wire stripping length 9 mm for bottom connection
Net weight 0.066 kg
Comb busbar and distribution block compatibility top: YES
Range compatibility Multi 9 Multi9 C60H-DC C60H-DC, Multi 9 Multi9 GFP GFP, Multi 9 Multi9 C60 C60SP, Multi 9 Multi9 C60 C60BPR, Multi 9 Multi9 C60 C60BP
Mounting support DIN rail
Height 82.5 mm
Environment
Ambient air temperature for storage -40-85 °C
Pollution degree 3
Standards GB/T 14048.5, C22.2 No. 5, UL 1077, UL 489, EN 60947-2, EN/IEC 60947-5-1, EN/IEC 60947-1
Ambient air temperature for operation -25-50 °C
Product certifications UL, PCT, UR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3 cm
Package 1 Width 8 cm
Package 1 Length 9.5 cm
Package 1 Weight 76 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.7 cm
Package 2 Width 10 cm
Package 2 Length 26.5 cm
Package 2 Weight 666 g
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 3.158 kg
