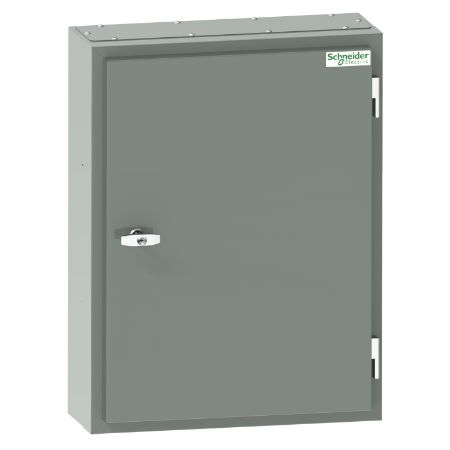

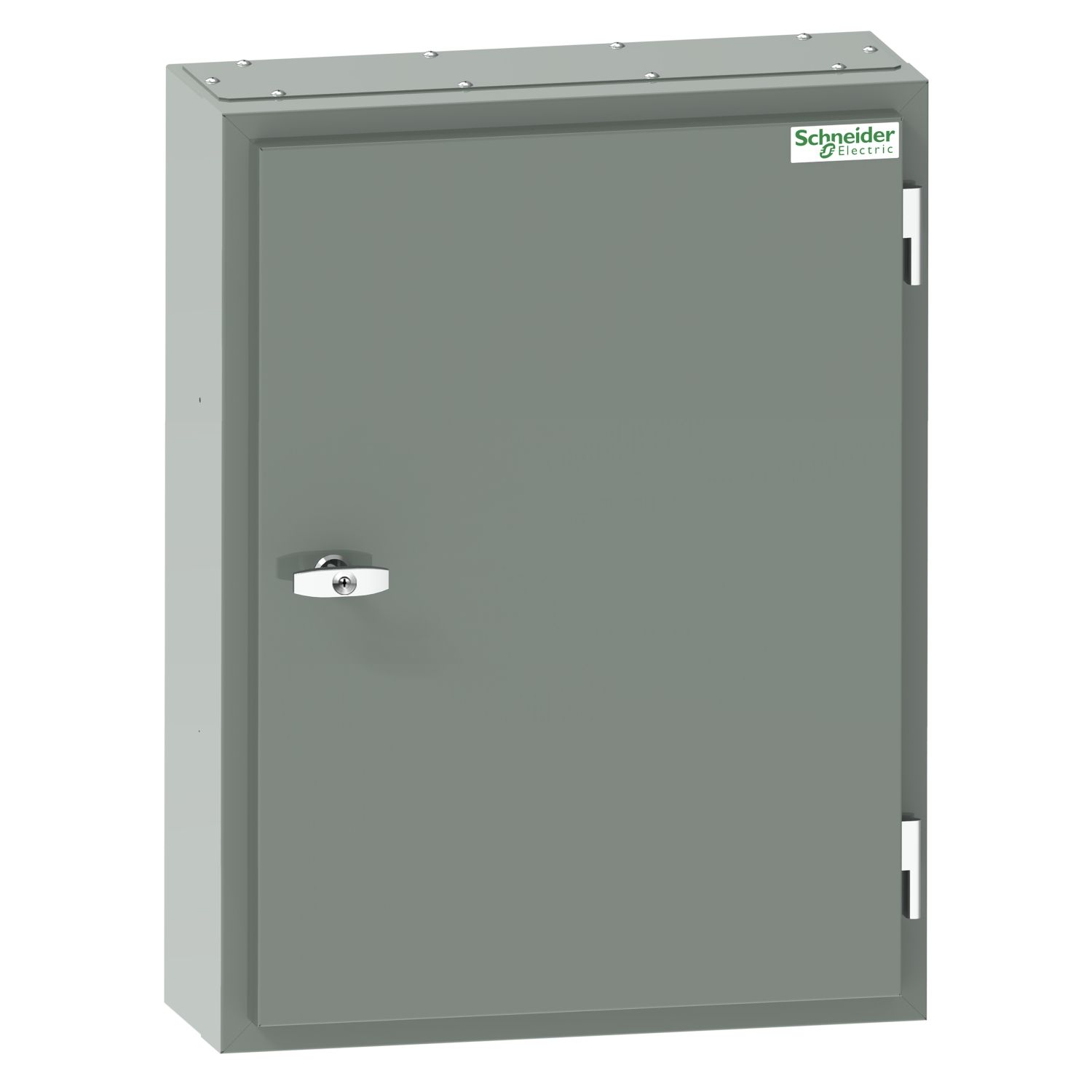

Picture of Acti9, MD Encapsulated distribution board, Acti9, 24 poles, 160A main switch, 18mm, IP56, grey
SKU:

MD224C31

Acti9, MD Encapsulated distribution board, Acti9, 24 poles, 160A main switch, 18mm, IP56, grey

Old price: $2,948.00 INC GST
$1,741.97 INC GST
Available for Shipping : 08-Dec-2025
Acti9, MD Encapsulated distribution board, Acti9, 24 poles, 160A main switch, 18mm, IP56, grey
  • A three phase distribution board compliant to local standands and wiring regulations
  • Distribution board fully compliant with Acti9 Circuit protection devices and system
  • Type tested distribution boards with best in class quality and performance
  • Distribution board with encapsulated chassis fitted with incomer 160A switch and IP56 protection
  • Easy to install and with generous wiring space
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Environmental Disclosure
Product Page Link
Product Data Sheet
This Clipsal product is a distribution board. The In rated current is up to 160A. The IP degre of protection is IP56. The width in number of modular spacings is 24 modules of 18mm.

Products specifications

Attribute name Attribute value
Main
Device short name MD
Device application distribution
Door type external plain
Colour grey
Range Acti9
Product name Acti9 encapsulated DB
Enclosure type weatherproof enclosure
Product or component type distribution board
Provided equipment DIN rail,  main switch,  SAU chassis,  door,  enclosure, 2 keys,  removable gland plates - top and bottom,  circuit schedule card,  pole filler,  earth/neutral terminal block 165 A
Complementary
[Ue] rated operational voltage 415 V
Depth 225 mm
Width 580 mm
[Ie] rated operational current 160 A
Enclosure material steel
Poles description 3P + N
Number of poles 24 x 18 mm
Enclosure mounting surface
IP degree of protection IP56
[Ui] rated insulation voltage 500 V
[Uimp] rated impulse withstand voltage 6 kV
Breaking capacity 25 kA
Height 750 mm
Network frequency 50 Hz
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25 cm
Package 1 Width 60 cm
Package 1 Length 76.5 cm
Package 1 Weight 36 kg
