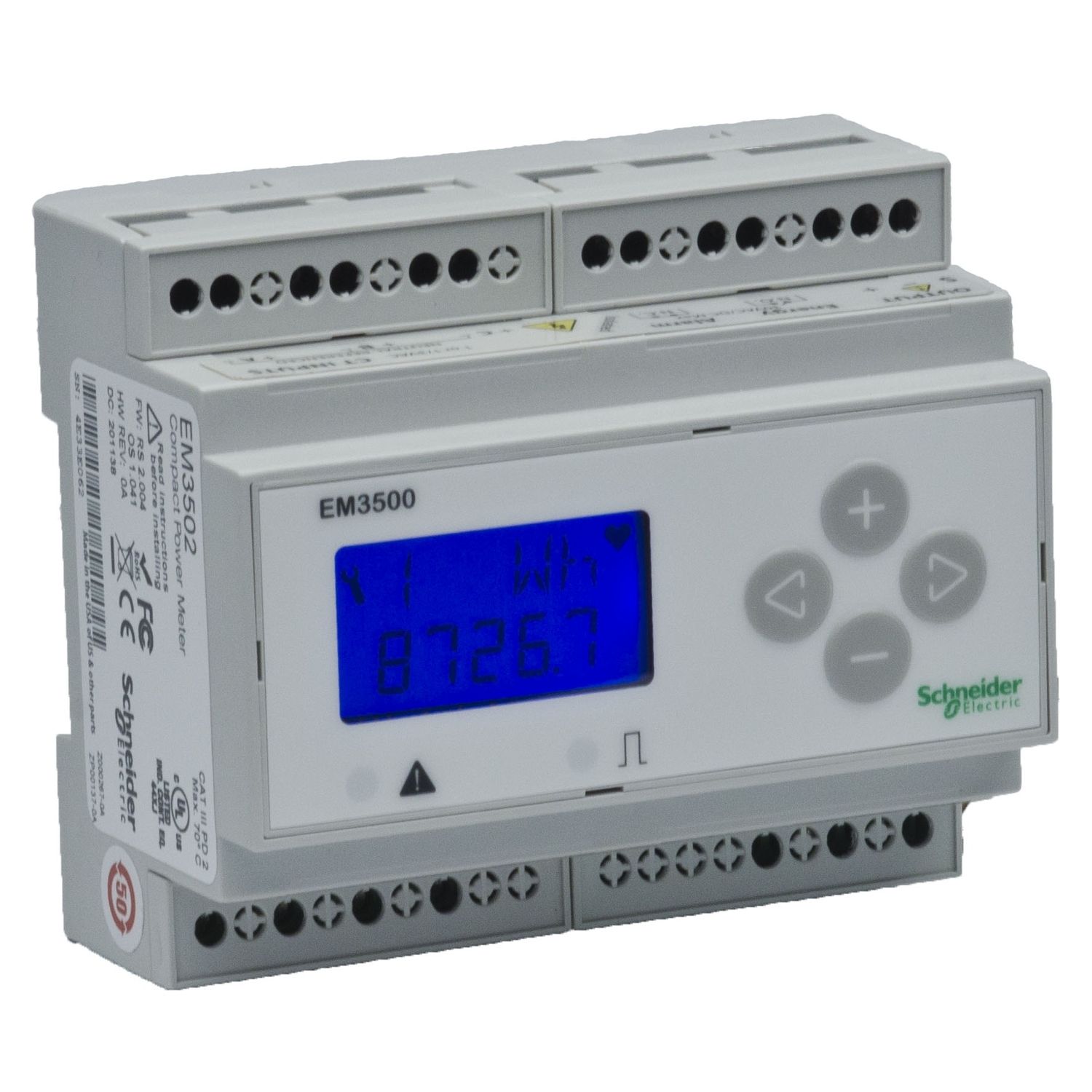

Picture of PowerLogic EM3500 DIN rail meter - Modbus 4 quadrant - current transformer
SKU:

METSEEM3555

PowerLogic EM3500 DIN rail meter - Modbus 4 quadrant - current transformer

$1,302.96
Available for Shipping : 05-Jan-2025
PowerLogic EM3500 DIN rail meter - Modbus 4 quadrant - current transformer
  • Energy monitoring in building automation systems
  • Renewable energy and industrial monitoring
  • Ease of setup and integration
  • Billing flexibility
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet

The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xx models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, according to the LVCT configuration in the HMI, ANSI C12.20 0.2% accuracy, IEC 62053-22 class 0.2S. The data logging capability protects data in the event of a power failure. Modbus, pulse output, and phase alarms are all provided to suit a wide variety of applications. This model add a bi-directional monitoring feature designed expressly for renewable energy applications. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm.

Products specifications

Attribute name Attribute value
Main
Metering type voltage U21, U32, U13, V1, V2, V3, demand power P, Q, S, active, reactive, apparent energy (signed, four quadrant), current I1, I2, I3, Iavg, peak demand power PM, QM, SM
Device short name EM3555
Range PowerLogic
Product name PowerLogic EM3500
Product or component type energy meter
Complementary
Rated voltage 90-347 V
Accuracy class class 0.2S energy conforming to ANSI C12.20, class 0.2S power conforming to ANSI C12.20, class 0.2S energy conforming to IEC 62053-22, class 0.2S power conforming to IEC 62053-22
Device application sub billing, partial meter
Display type backlit LCD
Analogue input type split core current transducer 0.333 V or 1 V
Data recording time stamping, energy consumption logs
Poles description 3P + N
Buffer size 16-bit 10
Technology type electronic
Measurement accuracy energy +/- 0.2 %, power +/- 0.2 %
Power consumption in W 3 W at 300-300 V
Local signalling green flashing LED: output signal, red LED: threshold reached
Mounting mode by screws, clip-on
Function available fixed or rolling block, external synchronisation to communication
Information displayed instant power per usage, Rx activity, Tx activity, error, input/output status, communication with system, status and alert
Measurement current 5-32000 A
Tamperproof of settings protected by access code
Communication of data lifetime energy production, instantaneous and demand values
Display digits 5
Ride-through time 100 ms 120 V AC
Communication service total cumulated energy, total cumulated active energy
Communication port protocol Modbus RTU at 1200…38400 bps - 2-wire
Type of measurement frequency, voltage, current, peak demand power, power factor per phase, power factor total, apparent power per phase, apparent power total, active and reactive power per phase, active and reactive power total
Product certifications cULus conforming to UL 508, CE conforming to IEC 61010
Power consumption in VA 5-5 VA at 600 V AC (between phases), 5-5 VA at 347 V AC (between phase and neutral)
Mounting support DIN rail
Number of outputs 1 pulse, 1 alarm output
Standards IEC 61010-1, UL 508, CSA C22.2 No 14-05
[Ue] rated operational voltage 125...300 V DC, 90...300 V AC 50/60 Hz between phase and neutral conforming to CE, 156...600 V AC 50/60 Hz between phases conforming to UL, 90...347 V AC 50/60 Hz between phase and neutral conforming to UL
Communication port support screw terminal block: RS485
Network frequency 50 Hz, 60 Hz
Environment
Depth 59 mm
Width 107 mm
Relative humidity 0-95 %
Ambient air temperature for storage -40-85 °C
Colour dark grey
9 mm pitches 12
Height 91 mm
Ambient air temperature for operation -30-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.1 cm
Package 1 Width 10.7 cm
Package 1 Length 5.9 cm
Package 1 Weight 3.629 kg
