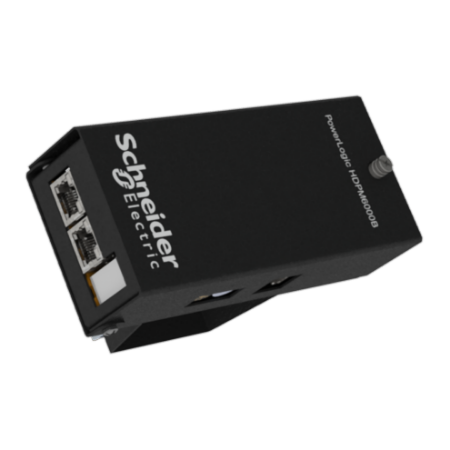

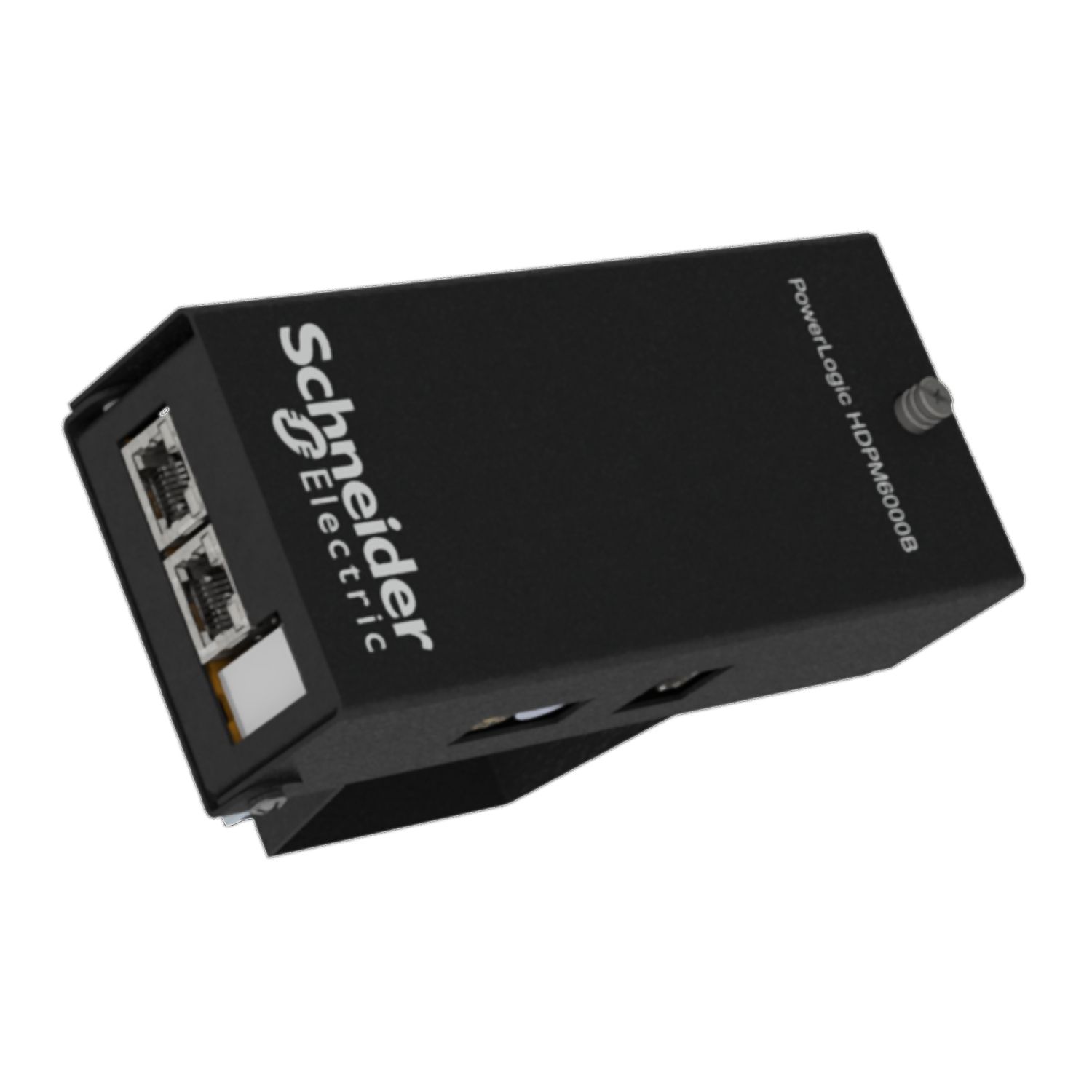

Picture of PowerLogic HDPM6000B 8 circuits Busway meter DIN Rail mountable
SKU:

METSEHDPM6BT8DIN

PowerLogic HDPM6000B 8 circuits Busway meter DIN Rail mountable

$3,695.89
Available for Shipping : 05-Jan-2025
PowerLogic HDPM6000B 8 circuits Busway meter DIN Rail mountable
  • Modular platform approach for scalability
  • Power quality metrics down to the branch circuit
  • Unit for tap box, busway equipped with DIN mount
  • Support of 8 current transformer
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This is an integrated solution for monitoring multi-circuits and power quality by using a single meter. The meter is designed to be modular, directly connectable on a busway tap-off, with an architecture meeting data center requirements in an all-in-one solution. Allow monitoring of loads up to 4000A with utility grade accuracy on all branch channels. This unit is mounted inside a Tap Can and allow measurement of 8 branch circuits. Allow measurement of energy, power demand, instantaneous power, current, harmonic and more - in total or per phases. Devices can be connected in dasy-chain thanks to CAT5 or CAT6 straight-through Ethernet cable. The HDPM6000 series can also maintain multiple, concurrent sessions with EPMS, DCIM or BMS applications via the Modbus, SNMP and BACnet IP protocols. The Busway module dimensions are 69.34mm in width, 145.54mm in height and 76mm in depth DIN rail adapter bracket included. Certified for IEC61326-1 and EN61326-1:2020, related to Industrial Electromagnetic Environment. The elements can be mounted on a DIN rail thanks to the clips at the back side. The system PowerLogic HDPM6000 can help you identify increased harmonics in the rack servers to detect a potential disruption. Thanks to daisy-chain, it is possible to connect additional modules if the head unit capacity isn't exceeded.

Products specifications

Attribute name Attribute value
Main
Range PowerLogic
Device short name HDPM6000B
Product name PowerLogic HDPM6000
Market segment critical buildings, non-critical buildings, healthcare, industrial buildings, data center
Product or component type busway meter
Type of measurement total current harmonic distortion THD (I), power factor average, power factor per channel, reactive power all channels, reactive power per channel, apparent power all channels, apparent power per channel, active power all channels, active power per channel, active energy all channels, active energy per channel, current all channels, current per channel
Variant modular version
Power quality analysis total harmonic distortion,  waveform capture
Energy management cost management, measurement, asset management
Complementary
Measurement category category III
Analogue input type external CT
Communication port protocol BACnet, SNMP, Modbus, TCP/IP
Sampling rate 128 samples/cycle
Communication port support 2 RJ45: ETHERNET
Environment
Operating altitude <= 2000 m
Type of installation indoor
Net weight 835 g
Depth 87 mm
Width 140 mm
Pollution degree 2
Mounting support 35 mm DIN rail
Relative humidity 5-90 %
Ambient air temperature for storage -40-85 °C
Mounting mode clipped
Height 62 mm
Ambient air temperature for operation -20-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.3 cm
Package 1 Width 20.3 cm
Package 1 Length 20.3 cm
Package 1 Weight 0.5 kg
