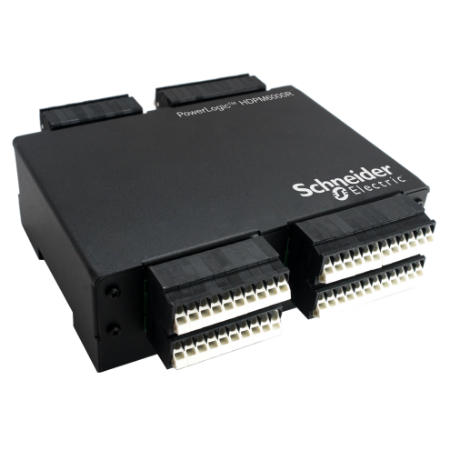

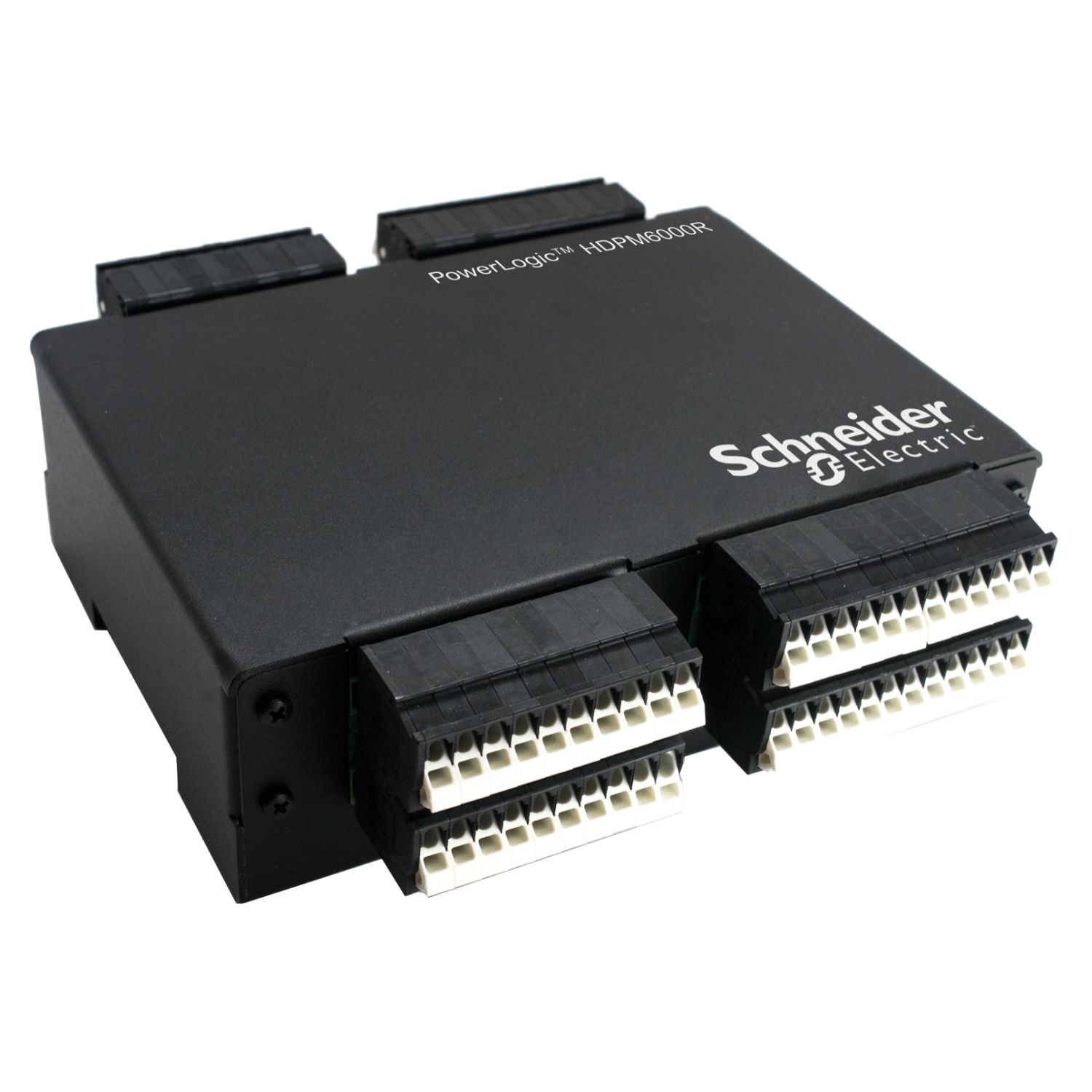

Picture of PowerLogic HDPM6000R retrofit module 24-circuits
SKU:

METSEHDPM6R24

PowerLogic HDPM6000R retrofit module 24-circuits

$5,783.96
PowerLogic HDPM6000R retrofit module 24-circuits
  • Modular platform approach for scalability
  • Power quality metrics down to the branch circuit
  • Current transformer concentrator powered by the head unit
  • Typically for retrofit installations
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This is an integrated solution for monitoring multi-circuits and power quality by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres, facilities and energy management in buildings. Allow monitoring of loads up to 4000A with utility grade accuracy on all branch channels. This combination include 1 retrofit element for current transformers in order to measure values for 24 branch circuits. Allow measurement of energy, power demand, instantaneous power, current, harmonic, voltage and more - in total or per phases. Devices can be connected in dasy-chain thanks to CAT5 or CAT6 straight-through Ethernet cable. The HDPM6000 series can also maintain multiple, concurrent sessions with EPMS, DCIM or BMS applications via the Modbus, SNMP and BACnet IP protocols. The retrofit module dimensions are 173mm in width connector included, 64mm in height and 173.48mm in depth. Certified for IEC61326-1 and EN61326-1:2020, related to Industrial Electromagnetic Environment. The elements can be mounted on a DIN rail thanks to the clips at the back side. The system PowerLogic HDPM6000 can help you identify increased harmonics in the rack servers to detect a potential disruption. Thanks to daisy-chain, it is possible to connect additional modules if the head unit capacity isn't exceeded.

Products specifications

Attribute nameAttribute value
Main
Device short nameHDPM6000R
Energy managementcost management, measurement, asset management
RangePowerLogic
Product namePowerLogic HDPM6000
Market segmentcritical buildings, non-critical buildings, healthcare, industrial buildings, data center
Product or component typemetering module
Type of measurementpower factor average, power factor per channel, frequency, reactive power all channels, reactive power per channel, apparent power all channels, apparent power per channel, active power all channels, active power per channel, active energy all channels, active energy per channel, current all channels, current per channel
Variantmodular version
Power quality analysistotal harmonic distortion
Complementary
Noise level0-65 dB
Measurement categorycategory III
Analogue input typeexternal CT
Number of inputs24 current
Communication of datapercentage of load, reading of measurements, power quality
Communication port protocolBACnet, SNMP, Modbus, TCP/IP
Memory capacity8 GB
Sampling rate128 samples/cycle
Communication port support2 RJ45: ETHERNET
Environment
Operating altitude<= 2000 m
Depth172.97 mm
Width173.48 mm
Relative humidity5-90 %
Ambient air temperature for storage-40-85 °C
Mounting modeby screws, clipped
Type of installationindoor
Product certificationscURus, CE, UL listed conforming to UL 508 A
Pollution degree2
Mounting supportenclosure, 35 mm DIN rail
Height64 mm
Ambient air temperature for operation-20-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height22.9 cm
Package 1 Width22.9 cm
Package 1 Length35.6 cm
Package 1 Weight1.8 kg
