Picture of PowerLogic HDPM6000R retrofit module 24-circuits with waveform capture
SKU:

METSEHDPM6R24WF

PowerLogic HDPM6000R retrofit module 24-circuits with waveform capture

$7,109.88
Available for Shipping : 05-Jan-2025

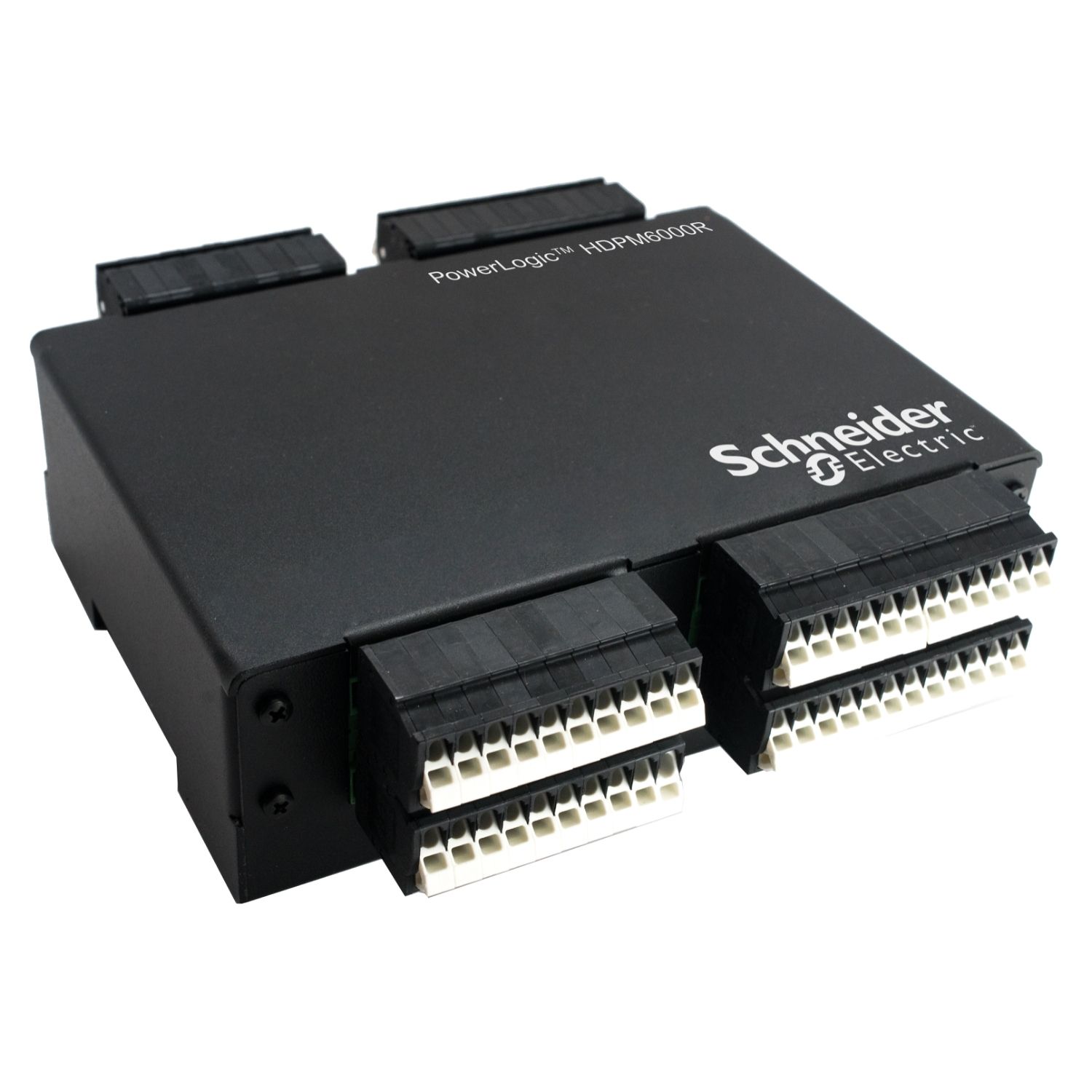

PowerLogic HDPM6000R retrofit module 24-circuits with waveform capture
  • Modular platform approach for scalability
  • Power quality metrics down to the branch circuit
  • Current transformer concentrator powered by the head unit
  • Typically for retrofit installations
  • Include waveform capture option
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This is an integrated solution for monitoring multi-circuits and power quality by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres, facilities and energy management in buildings. Allow monitoring of loads up to 4000A with utility grade accuracy on all branch channels. This combination include 1 retrofit element for current transformers in order to measure values for 24 branch circuits. Allow measurement of energy, power demand, instantaneous power, current, harmonic, voltage and more - in total or per phases. Devices can be connected in dasy-chain thanks to CAT5 or CAT6 straight-through Ethernet cable. The HDPM6000 series can also maintain multiple, concurrent sessions with EPMS, DCIM or BMS applications via the Modbus, SNMP and BACnet IP protocols. This variant provides waveform capture functionality without the need for additional proprietary software. The retrofit module dimensions are 173mm in width connector included, 64mm in height and 173.48mm in depth. Certified for IEC61326-1 and EN61326-1:2020, related to Industrial Electromagnetic Environment. The elements can be mounted on a DIN rail thanks to the clips at the back side. For the waveform capture a SD card is needed, several download options will be available. The system PowerLogic HDPM6000 can help you identify increased harmonics in the rack servers to detect a potential disruption. Thanks to daisy-chain, it is possible to connect additional modules if the head unit capacity isn't exceeded.

Products specifications

Attribute name Attribute value
Main
Device short name HDPM6000R
Energy management cost management, measurement, asset management
Range PowerLogic
Product name PowerLogic HDPM6000
Market segment critical buildings, non-critical buildings, healthcare, industrial buildings, data center
Product or component type metering module
Type of measurement power factor average, power factor per channel, frequency, reactive power all channels, reactive power per channel, apparent power all channels, apparent power per channel, active power all channels, active power per channel, active energy all channels, active energy per channel, current all channels, current per channel
Variant modular version
Power quality analysis total harmonic distortion,  waveform capture
Complementary
Noise level 0-65 dB
Measurement category category III
Analogue input type external CT
Number of inputs 24 current
Communication of data percentage of load, reading of measurements, power quality
Communication port protocol BACnet, SNMP, Modbus, TCP/IP
Memory capacity 8 GB
Sampling rate 128 samples/cycle
Communication port support 2 RJ45: ETHERNET
Environment
Operating altitude <= 2000 m
Depth 172.97 mm
Width 173.48 mm
Relative humidity 5-90 %
Ambient air temperature for storage -40-85 °C
Mounting mode by screws, clipped
Type of installation indoor
Product certifications cURus, CE, UL listed conforming to UL 508 A
Pollution degree 2
Mounting support enclosure, 35 mm DIN rail
Height 64 mm
Ambient air temperature for operation -20-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.9 cm
Package 1 Width 22.9 cm
Package 1 Length 35.6 cm
Package 1 Weight 1.8 kg
