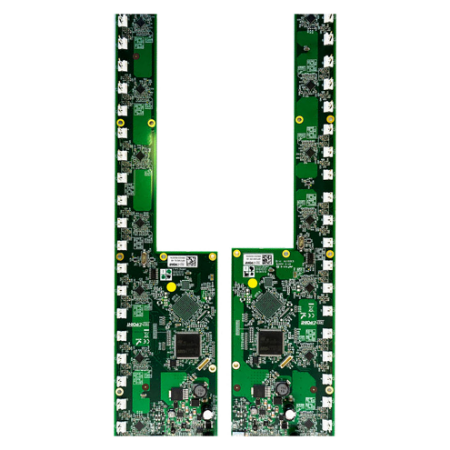

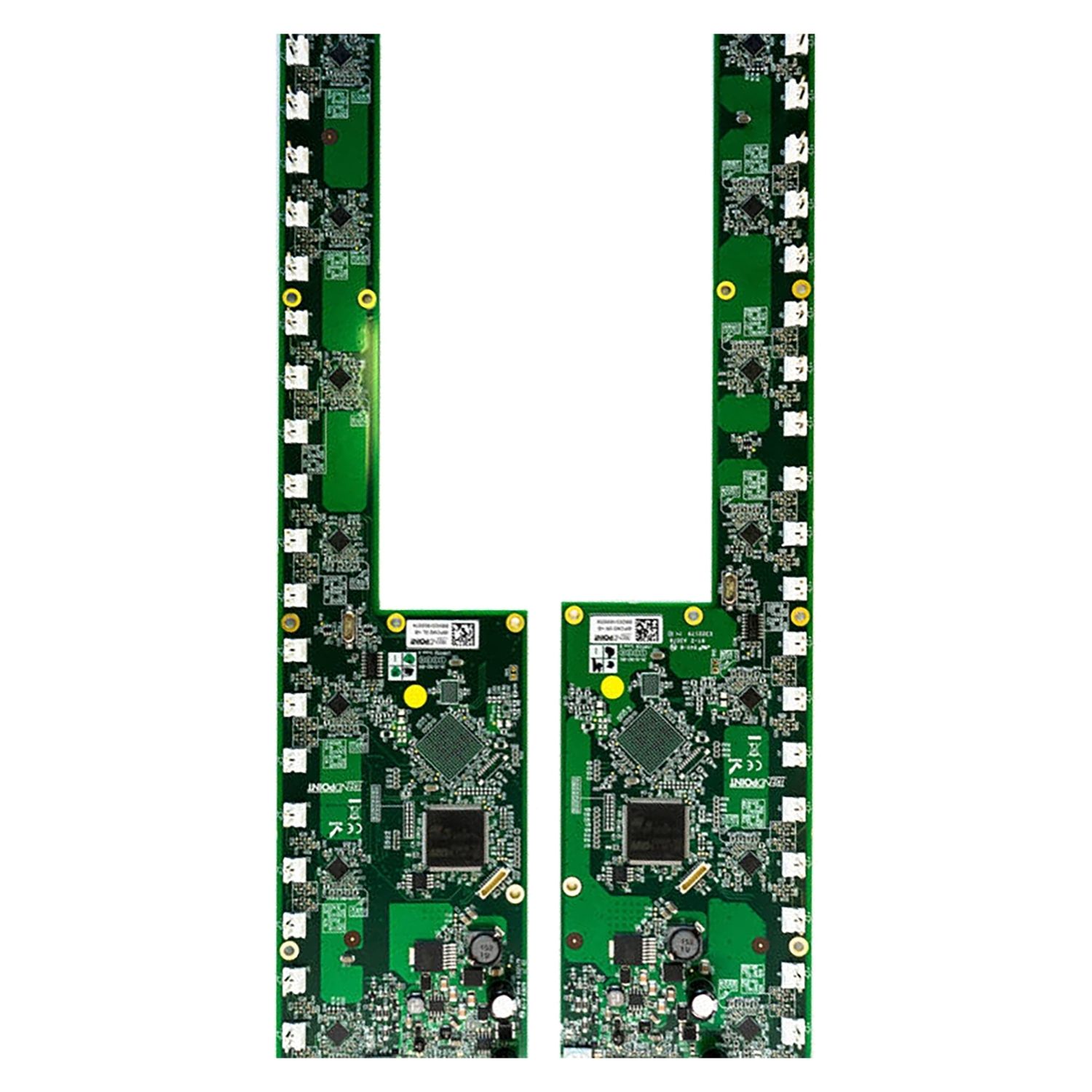

Picture of PowerLogic HDPM6000S current transformer Strip, 21-circuits shaped Left
SKU:

METSEHDPM6S21L

PowerLogic HDPM6000S current transformer Strip, 21-circuits shaped Left

$7,036.80
PowerLogic HDPM6000S current transformer Strip, 21-circuits shaped Left
  • Easily connected to head unit thanks to straight-through Ethernet cable
  • Use current transformer with quick click connector
  • Can be mounted in the monitored panel
  • Jumpers next to quick click connectors to define the measured phase
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 03-Nov-2024
Catalogue
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This is an integrated solution for monitoring multi-circuits and power quality by using a single meter. The meter is designed for use in new build and is used for critical power operations in data centres, facilities and energy management in buildings. Allow monitoring of loads up to 4000A with utility grade accuracy on all branch channels. The strip, shaped left, is designed to connect current transformers in order to measure values for 21 branch circuits. Allow measurement of energy, power demand, instantaneous power, current, harmonic, voltage and more - in total or per phases. Devices can be connected in dasy-chain thanks to CAT5 or CAT6 straight-through Ethernet cable. The HDPM6000 series can also maintain multiple, concurrent sessions with EPMS, DCIM or BMS applications via the Modbus, SNMP and BACnet IP protocols. The strip dimensions are 89mm in width, 454.15 mm in length, 27.2mm in height with PCB oriented on the left. Certified for IEC61326-1 and EN61326-1:2020, related to Industrial Electromagnetic Environment. The strips can be fixed with screws in an enclosure, next to the circuit breaker thanks to lugs at both end of the bracket. The system PowerLogic HDPM6000 can help you identify increased harmonics in the rack servers to detect a potential disruption. Thanks to daisy-chain, it is possible to connect additional modules if the head unit capacity isn't exceeded.

Products specifications

Attribute nameAttribute value
Main
RangePowerLogic
Device short nameHDPM6000S
Product namePowerLogic HDPM6000
Market segmentcritical buildings, non-critical buildings, healthcare, industrial buildings, data center
Product or component typestrip
Type of measurementtotal voltage harmonic distortion THD (U) per channel, total current harmonic distortion THD (I) per channel, apparent energy per channel, apparent power per channel, reactive energy per channel, reactive power per channel, active energy per channel, active power per channel, power factor per channel, current per channel, voltage per channel
Power quality analysistotal harmonic distortion
Complementary
Mounting locationleft
Number of inputs21 current transformer 20...4000 A
Communication of datareading of measurements
Analogue input typeexternal CT
Communication port protocolBACnet, SNMP, Modbus, TCP/IP
Memory capacity8 GB
Measurement voltage120-480 V AC 50/60 Hz
Measurement accuracy+/- 1 %
Connection pitch19 mm
Communication port support2 RJ45: I/O bus
Environment
Operating altitude<= 2000 m
Type of installationindoor
Depth27.18 mm
Width101.6 mm
Mounting supportlug, enclosure
Relative humidity5-90 %
Ambient air temperature for storage-40-85 °C
Mounting modefree mounting
Height438.15 mm
Ambient air temperature for operation-20-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height20.3 cm
Package 1 Width20.3 cm
Package 1 Length66.0 cm
Package 1 Weight1.2 kg
