Picture of EasyLogic PM2220, Power & Energy meter, up to the 15th harmonic, LCD display, RS485, RJ45 quick click CTs
SKU:

METSEPM2220R

EasyLogic PM2220, Power & Energy meter, up to the 15th harmonic, LCD display, RS485, RJ45 quick click CTs

$464.59
Available for Shipping : 24-Nov-2024
Product Selector
EasyLogic PM2220, Power & Energy meter, up to the 15th harmonic, LCD display, RS485, RJ45 quick click CTs
  • Bill checking to verify that you are only charged for the energy you use
  • Aggregation of energy consumption and cost allocation within the same facility
  • Energy cost and usage analysis to optimise energy usage
  • Metering of electrical parameters to understand your electrical distribution system
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Product environmental
End of life manual
Brochure
Catalogue
User guide
Product Page Link
Product Data Sheet

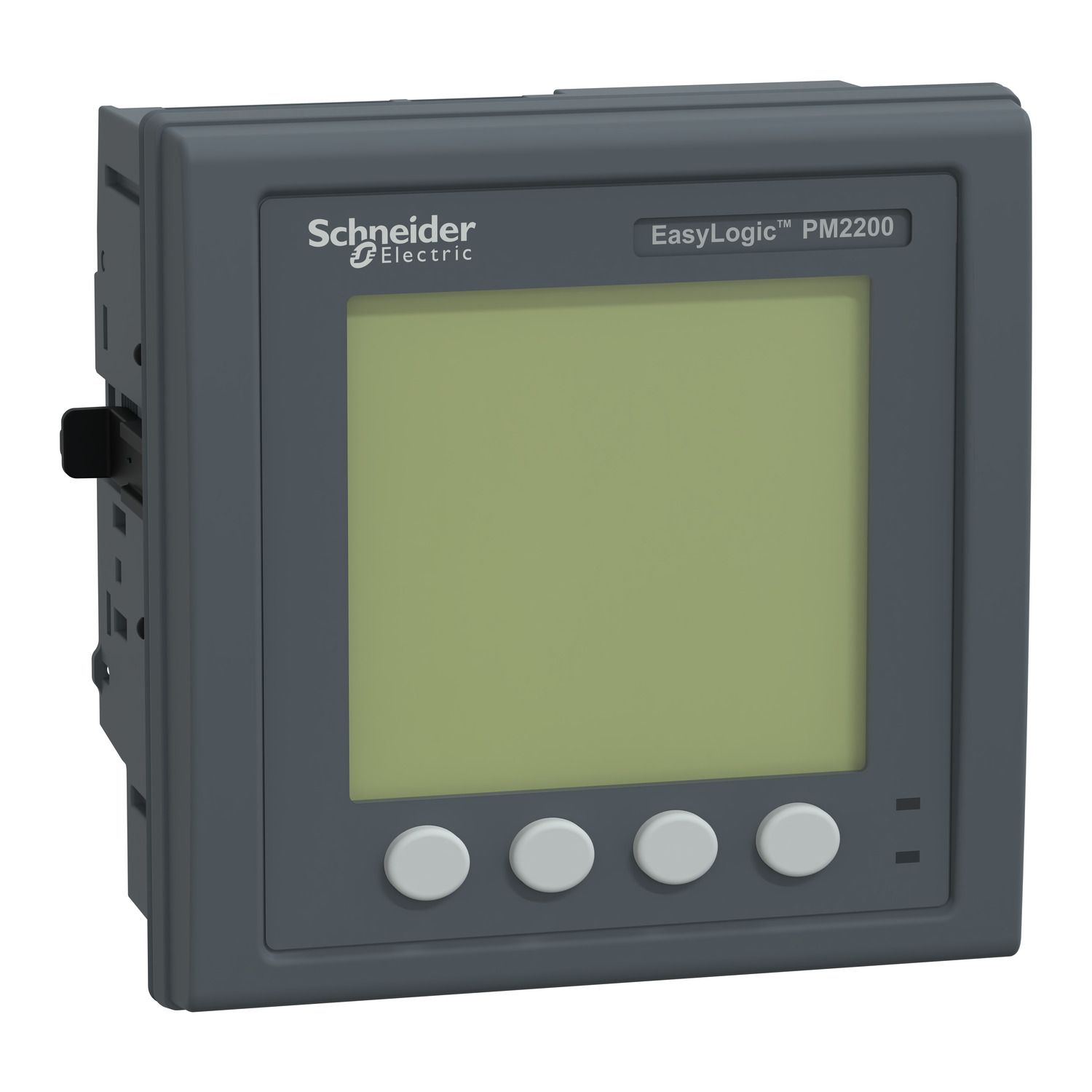

This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having backlit LCD display of 128 by 128 pixels. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion and Individual harmonics up to 15th Harmonic order. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Current is measured with the help of a 3-in-1 current transducer connected to the device with a RJ45 connector. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. It is having RS485 communication port over Modbus RTU protocol. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).

Products specifications

Attribute name Attribute value
Main
Device short name PM2220
Range EasyLogic
Product name EasyLogic PM2200
Product or component type power meter
Complementary
Maximum power consumption in VA 6 VA at 277 V AC
Accuracy class class 5 harmonic distorsion (I THD & U THD), class 1 reactive energy conforming to IEC 62053-24, class 1 active energy conforming to IEC 62053-21
Metering type calculated neutral current, unbalance current, active power P, P1, P2, P3, demand power P, Q, S, peak demand power PM, QM, SM, apparent power S, S1, S2, S3, peak demand currents, current I, I1, I2, I3, reactive power Q, Q1, Q2, Q3, active, reactive, apparent energy (signed, four quadrant), voltage U, U21, U32, U13, V, V1, V2, V3
Device application power monitoring, sub billing
Measurement category category II 480-600 V, category III 480-480 V
Display type backlit LCD
Width 96 mm
Mounting position vertical
Analogue input type voltage (impedance > 5 MOhm), current (impedance <= 0.3 mOhm)
Display colour monochrome
Cybersecurity enable/disable communication ports
[In] rated current 1 A, 5 A
Data recording min/max for 8 parameters, time stamping
Refresh time configurable from 1 to 60 min
Compatibility code PM2220R
Mounting support framework
Measurement accuracy frequency +/- 0.05 %, current +/- 0.5 %, power factor +/- 0.01, voltage +/- 0.5 %, active power +/- 1 %, reactive energy +/- 1 %, active energy +/- 1 %, apparent power +/- 1 %
Mounting mode clip-on
[Us] rated supply voltage 44...277 V DC +/- 10 %, 44...277 V AC 45...65 Hz +/- 10 %
Flame retardance V-0 conforming to UL 94
Function available alarm, real time clock
Control type 4 x button
Information displayed harmonic amplitude, unbalanced in %, reactive power, apparent power, active power, power factor, harmonic distortion, energy consumption, frequency, current, voltage, demand power (present value), demand power (past value), demand current (present value), demand current (past value)
Electrical insulation class class II, double insulation
Connections - terminals voltage inputs: screw connection (top) 4 , current transformer: RJ45 connector1
Local signalling green LED: module operation and integrated communication, red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
Measurement current 5-6000 mA
Depth 61.64 mm embedded: , 76.09 mm total:
Provided equipment 1 x installation guide
Tamperproof of settings protected by access code
Net weight 300 g
Material polycarbonate
Number of inputs 0
Display resolution 128 x 128 pixels
Frequency measurement range 45-65 Hz
Communication service remote monitoring
Communication port protocol Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V
Type of measurement active and reactive energy total, apparent energy total, power factor min/max, avg, total voltage harmonic distortion THD (U) per phase, total current harmonic distortion THD (I) per phase, frequency min/max, avg, voltage min/max, avg, current min/max, avg, active and reactive power min/max, total, apparent power min/max, total
Product certifications C-Tick, EAC, RCM, cULus conforming to CSA C22.2 No 61010-1, cULus conforming to UL 61010-1, CE conforming to IEC 61010-1
User language English, Russian, Spanish, Portuguese, French, Chinese, German
Number of outputs 0
Maximum power consumption in W 2 W at 277 V (power lines (DC)), 3.3 W (power lines (AC))
Sampling rate 64 samples/cycle
Measurement voltage 480-999000 V AC 50/60 Hz with external VT, 20-277 V AC 50/60 Hz between phase and neutral, 35-480 V AC 50/60 Hz between phases
Height 96 mm
Power quality analysis up to the 15th harmonic,  total harmonic distortion
Communication port support screw terminal block: RS485
Network frequency 50 Hz, 60 Hz
Environment
Operating altitude <= 2000 m
Overvoltage category III
IP degree of protection IP30 body: conforming to IEC 60529, IP54 front: conforming to IEC 60529
Service life 7 year(s)
Relative humidity 5-95 % at 50-50 °C
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Electromagnetic compatibility emission tests conforming to FCC part 15 class A, voltage dips and interruptions immunity test conforming to IEC 61000-4-11, magnetic field at power frequency conforming to IEC 61000-4-8, conducted RF disturbances conforming to IEC 61000-4-6, surge immunity test conforming to IEC 61000-4-5, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrostatic discharge conforming to IEC 61000-4-2
Ambient air temperature for operation -10-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.25 cm
Package 1 Width 9.6 cm
Package 1 Length 9.6 cm
Package 1 Weight 220 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.47 kg
