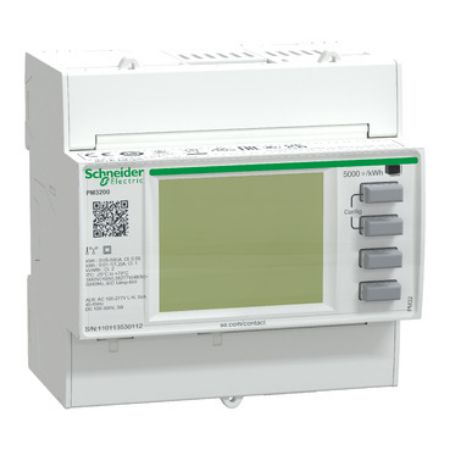

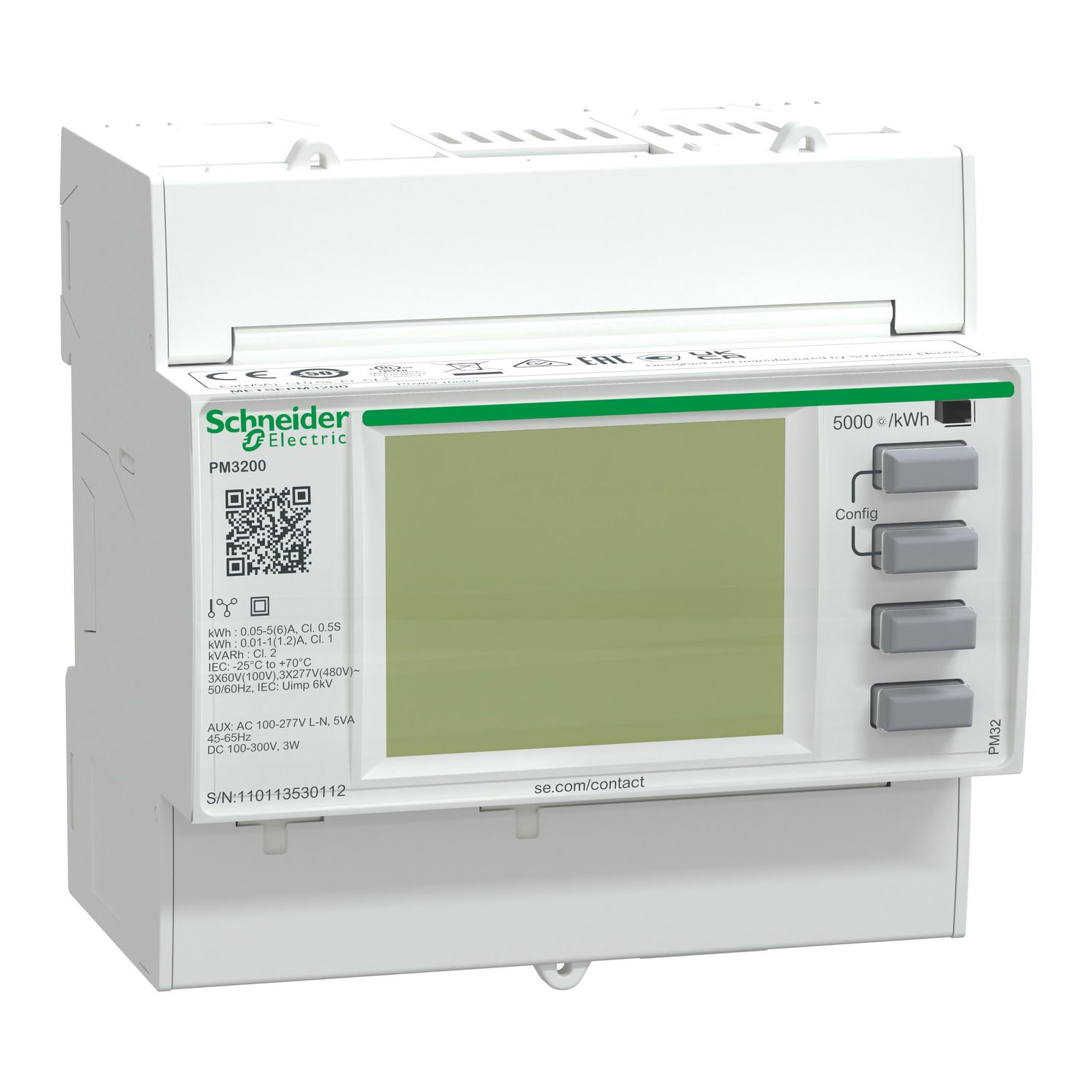

PowerLogic, PM3200 power meter
  • Feature-rich power and energy meters
  • Identify savings opportunities
  • Compact size of 18mm*5 modules width
  • Aggregation of energy consumption, including WAGES, and cost allocation
  • Identify energy savings opportunties with precision accuracy of Class 0.5S
  • Supports Power metering and network monitoring application
  • 1Amps or 5Amps CT operated in three phase network
  • Three phase DIN rail mount power and energy meter
  • Large LCD display for easy reading
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Product environmental
Declaration of conformity
User guide
Catalogue
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
PM3200 DIN mount energy meter with a 128 by 96 pixel backlit, LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 277VAC, 173 to 480VAC and 100 to 300VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations. Direct measurement range is 50 to 570VAC, with an external VT 570 to 999000VAC. The range of measurement voltage between Phases is 80 to 570VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 50 to 330VAC at 45 to 65 Hz. This meter has no communication input or output capability. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.76in (70 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

Products specifications

Attribute name Attribute value
Main
Device short name PM3200
Range PowerLogic
Market segment industry cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: sub feeder, data center cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: sub feeder, industry cost management: billing: sub feeder, healthcare cost management: billing: sub feeder, data center cost management: billing: sub feeder, buildings multi-site cost management: billing: sub feeder, buildings large building cost management: billing: sub feeder, buildings medium building cost management: billing: sub feeder, buildings small building cost management: billing: sub feeder
Product name PowerLogic PM3000
Product or component type power meter
Complementary
Device application power monitoring, sub billing, multi-tariff
Display type backlit LCD
Measurement accuracy voltage 0.3 % 80...570 V, voltage 0.3 % 50...330 V, current 0.5 % 0.1...1.2 A, current 0.3 % 0.5...6 A
Mounting mode clip-on
[Us] rated supply voltage 100...300 V DC, 173...480 V AC 45...65 Hz, 100...277 V AC 45...65 Hz
Information displayed tariff (4)
Depth 70 mm
Frequency measurement range 45-65 Hz
Communication port protocol -
Type of measurement frequency, power factor, energy, voltage, current, apparent power, active and reactive power
Height 95 mm
Power quality analysis up to the 15th harmonic
Communication port support -
Accuracy class class C active energy conforming to EN 50470-3, class 2 reactive energy conforming to IEC 62053-23, class 1 active energy conforming to IEC 62053-21, class 0.5S active energy conforming to IEC 62053-22
Market segment small commercial, residential
Width 90 mm
Analogue input type current 0...1 A, current 0...5 A
[In] rated current 1 A, 5 A
Data recording min/max of instantaneous values
Poles description 1P + N, 3P, 3P + N
Mounting support DIN rail
Measurement current 0.02-1.2 A, 0.05-6 A
Net weight 0.26 kg
Number of inputs 0
Product certifications RCM, EAC (sub-meter), cULus conforming to UL 61010-1 (safety), cULus conforming to EN 61010-1 (safety), UKCA conforming to BS EN 61326-1 (EMC), UKCA conforming to BS EN 61557-12 (power monitor), UKCA conforming to BS EN 61010-1 (safety), CE conforming to EN/IEC 61326-1 (EMC), CE conforming to EN 61557-12 (power monitor), CE conforming to IEC 61010-1 (safety)
Display resolution 128 x 96 pixels
Power consumption in VA 5 VA
Number of outputs 0
Standards ANSI C12.20, UL 61010-2-30, EN 61010-2-30, IEC 61010-2-30, BS EN 61010-2-30, UL 61010-1, IEC 61010-1, EN 61010-1, BS EN 61010-1, EN 62052-23, IEC 62053-23, BS EN 62053-23, EN 62052-22, IEC 62053-22, BS EN 62053-22, EN 62053-21, IEC 62053-21, BS EN 62053-21, EN 62052-11, IEC 62052-11, BS EN 62052-11, EN 61326-1, IEC 61326-1, BS EN 61326-1, EN 61557-12, IEC 61557-12, BS EN 61557-12
Sampling rate 32 samples/cycle
Measurement voltage 570-999000 V AC 45...65 Hz with external VT, 80-570 V AC 45...65 Hz phase to phase, 80-570 V AC 45...65 Hz direct, 50-330 V AC 45...65 Hz phase to neutral, 50-330 V AC 45...65 Hz direct
Network frequency 60 Hz, 50 Hz
Environment
Compatibility code PM3200
IP degree of protection IP20 body: conforming to IEC 60529, IP40 front panel: conforming to IEC 60529
Relative humidity 5-95 % at 50-50 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 2
Electromagnetic compatibility conducted and radiated emissions class B conforming to EN 55022, magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8, conducted RF disturbances level 3 conforming to IEC 61000-4-6, surge immunity test level 4 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3, electrostatic discharge level 4 conforming to IEC 61000-4-2
Ambient air temperature for operation -25-70 °C
Operating altitude < 3000 m
Overvoltage category III
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.8 cm
Package 1 Width 13.2 cm
Package 1 Length 13.7 cm
Package 1 Weight 384 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.567 kg
Unit Type of Package 3 3
Number of Units in Package 3 128
Package 3 Height 15 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 57.672 kg
