PowerLogic, PM3210 power meter - output digital and pulse

$1,022.11
Product Selector

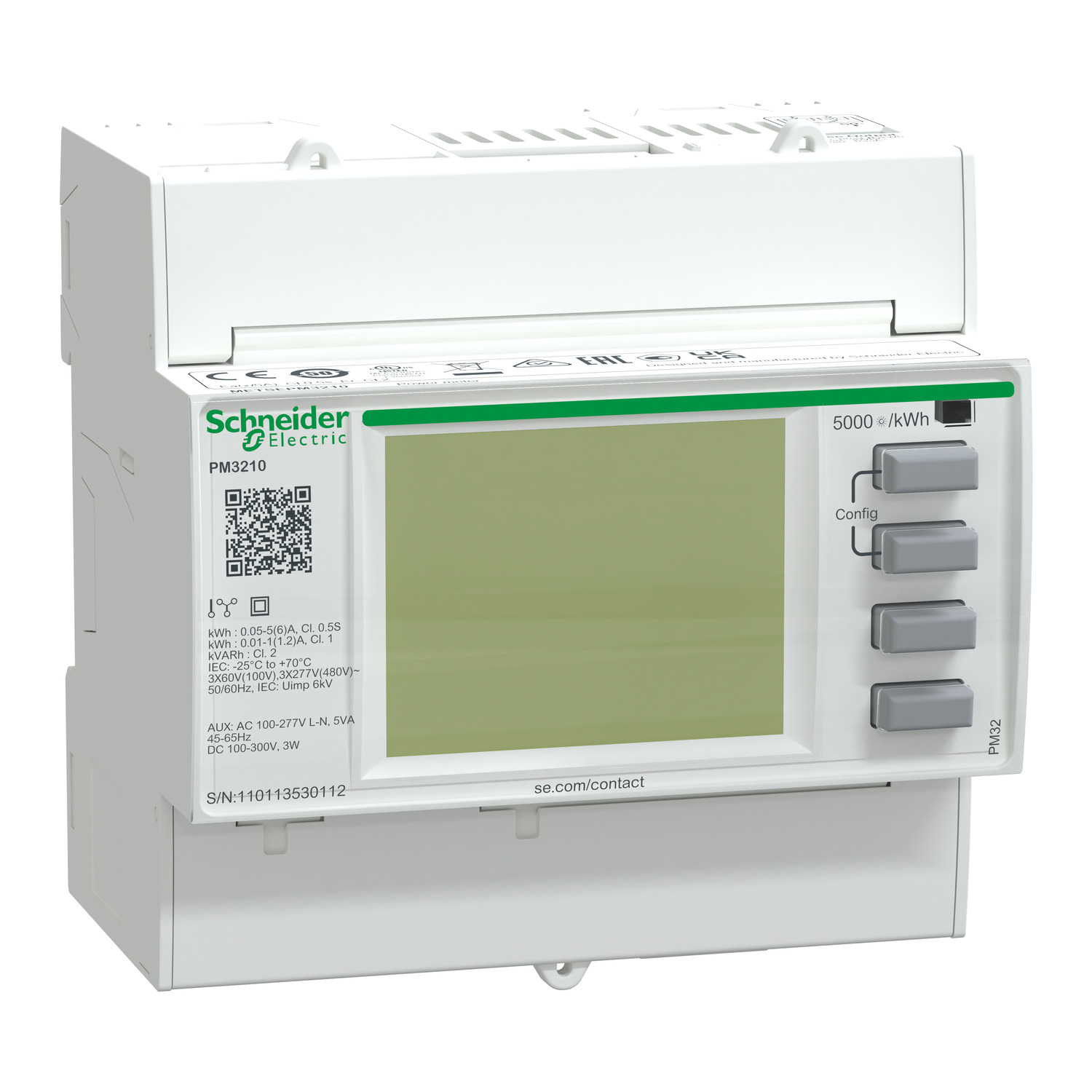

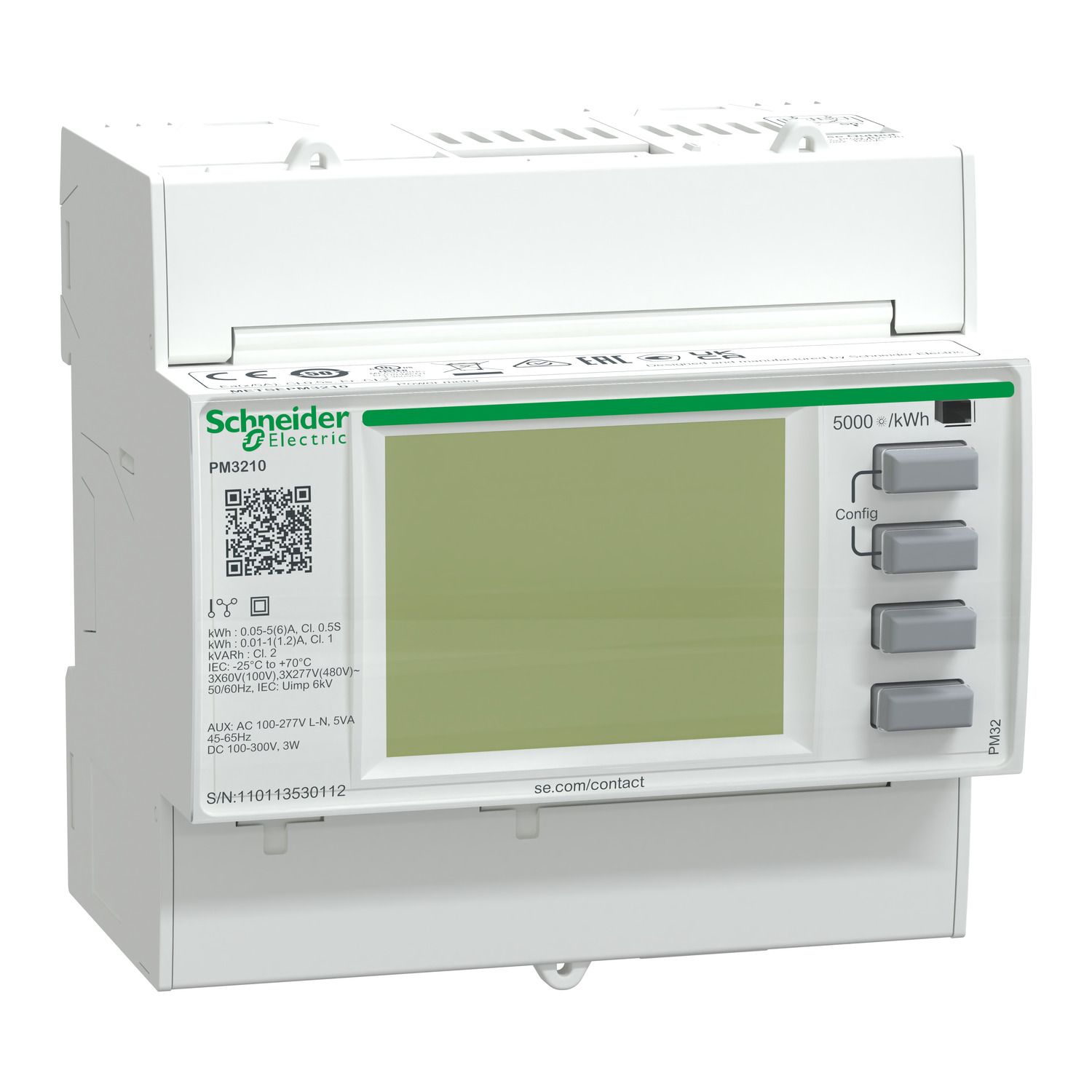

PowerLogic, PM3210 power meter - output digital and pulse
  • Feature-rich power and energy meters
  • Identify savings opportunities
  • Compact size of 18mm*5 modules width
  • Digital output for remote monitoring
  • Identify energy savings opportunties with precision accuracy of Class 0.5S
  • Supports Power metering and network monitoring application
  • 1Amps or 5Amps CT operated in three phase network
  • Three phase DIN rail mount power and energy meter
  • Large LCD display for easy reading
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
User guide
Declaration of conformity
End of life manual
CAD
Instruction sheet
Product Page Link
Product Data Sheet
PM3210 DIN mount energy meter with a 128 by 96 pixel backlit, LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power, Total Harmonic Distortion and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 277VAC, 173 to 480VAC and 100 to 300VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations. Direct measurement range is 50 to 570VAC, with an external VT 570 to 999000VAC. The range of measurement voltage between Phases is 80 to 570VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 50 to 330VAC at 45 to 65 Hz. This meter has no communication input capability. Support for one digital output. The meter offers event recording with up to 5 alarms. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.76in (70 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

Products specifications

Attribute nameAttribute value
Main
Device short namePM3210
RangePowerLogic
Market segmentindustry cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: sub feeder, data center cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: sub feeder, industry cost management: billing: sub feeder, healthcare cost management: billing: sub feeder, data center cost management: billing: sub feeder, buildings multi-site cost management: billing: sub feeder, buildings large building cost management: billing: sub feeder, buildings medium building cost management: billing: sub feeder, buildings small building cost management: billing: sub feeder
Product namePowerLogic PM3000
Product or component typepower meter
Complementary
Device applicationsub billing, multi-tariff, power monitoring
Display typebacklit LCD
Measurement accuracyvoltage 0.3 % 80...570 V, voltage 0.3 % 50...330 V, current 0.5 % 0.1...1.2 A, current 0.3 % 0.5...6 A
Mounting modeclip-on
[Us] rated supply voltage100...300 V DC, 173...480 V AC 45...65 Hz, 100...277 V AC 45...65 Hz
Information displayedtariff (4)
Depth70 mm
Frequency measurement range45-65 Hz
Communication port protocol-
Type of measurementtotal voltage harmonic distortion THD (U), total current harmonic distortion THD (I), frequency, power factor, energy, voltage, current, apparent power, active and reactive power
Height95 mm
Power quality analysisup to the 15th harmonic
Communication port support-
Accuracy classclass C active energy conforming to EN 50470-3, class 2 reactive energy conforming to IEC 62053-23, class 1 active energy conforming to IEC 62053-21, class 0.5S active energy conforming to IEC 62053-22
Market segmentsmall commercial, residential
Width90 mm
Analogue input typecurrent 0...1 A, current 0...5 A
[In] rated current5 A, 1 A
Data recordingmin/max of instantaneous values, 5 alarms, time stamping
Poles description1P + N, 3P + N, 3P
Mounting supportDIN rail
Measurement current0.02-1.2 A, 0.05-6 A
Net weight0.26 kg
Number of inputs0
Product certificationsRCM, EAC (sub-meter), cULus conforming to UL 61010-1 (safety), cULus conforming to EN 61010-1 (safety), UKCA conforming to BS EN 61326-1 (EMC), UKCA conforming to BS EN 61557-12 (power monitor), UKCA conforming to BS EN 61010-1 (safety), CE conforming to EN/IEC 61326-1 (EMC), CE conforming to EN 61557-12 (power monitor), CE conforming to IEC 61010-1 (safety)
Display resolution128 x 96 pixels
Power consumption in VA5 VA
Number of outputs1 pulse
StandardsANSI C12.20, UL 61010-2-30, EN 61010-2-30, IEC 61010-2-30, BS EN 61010-2-30, UL 61010-1, IEC 61010-1, EN 61010-1, BS EN 61010-1, EN 62052-23, IEC 62053-23, BS EN 62053-23, EN 62052-22, IEC 62053-22, BS EN 62053-22, EN 62053-21, IEC 62053-21, BS EN 62053-21, EN 62052-11, IEC 62052-11, BS EN 62052-11, EN 61326-1, IEC 61326-1, BS EN 61326-1, EN 61557-12, IEC 61557-12, BS EN 61557-12
Sampling rate32 samples/cycle
Measurement voltage570-999000 V AC 45...65 Hz with external VT, 80-570 V AC 45...65 Hz phase to phase, 80-570 V AC 45...65 Hz direct, 50-330 V AC 45...65 Hz phase to neutral, 50-330 V AC 45...65 Hz direct
Network frequency60 Hz, 50 Hz
Environment
Compatibility codePM3210
IP degree of protectionIP20 body: conforming to IEC 60529, IP40 front panel: conforming to IEC 60529
Relative humidity5-95 % at 50-50 °C
Ambient air temperature for storage-40-85 °C
Pollution degree2
Electromagnetic compatibilityconducted and radiated emissions class B conforming to EN 55022, magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8, conducted RF disturbances level 3 conforming to IEC 61000-4-6, surge immunity test level 4 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3, electrostatic discharge level 4 conforming to IEC 61000-4-2
Ambient air temperature for operation-25-70 °C
Operating altitude< 3000 m
Overvoltage categoryIII
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9 cm
Package 1 Width13.5 cm
Package 1 Length13.5 cm
Package 1 Weight387 g
Unit Type of Package 22
Number of Units in Package 216
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight6.343 kg
Unit Type of Package 33
Number of Units in Package 3128
Package 3 Height15 cm
Package 3 Width80 cm
Package 3 Length120 cm
Package 3 Weight57.672 kg
