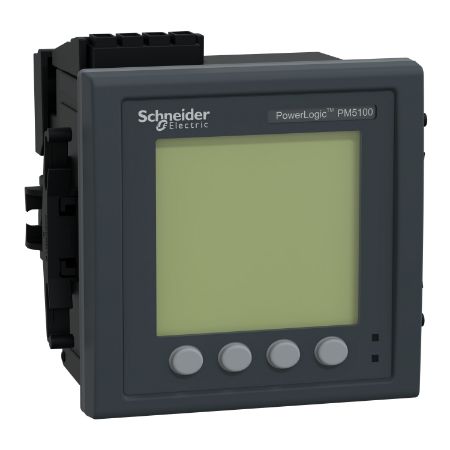

Picture of power meter PowerLogic PM5110, modbus, up to 15th Harmonic, 1DO 33 alarms
SKU:

METSEPM5110

power meter PowerLogic PM5110, modbus, up to 15th Harmonic, 1DO 33 alarms

$1,261.20
Product Selector
power meter PowerLogic PM5110, modbus, up to 15th Harmonic, 1DO 33 alarms
  • Feature-rich power and energy meters
  • Energy pulse output for remote monitoring
  • Modbus 485 communication port for remote monitoring
  • Identify energy savings opportunties with precision accuracy of Class 0.5S
  • 15th Hamronic measurement for Power Quality management
  • Full scape graphical LCD for clear viewing
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
End of life manual
Declaration of conformity
CAD
Catalogue
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has one digital pulse output and 33 configurable alarms. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 13.4 onces (380 g).

Products specifications

Attribute nameAttribute value
Main
Device short namePM5110
RangePowerLogic
Market segmentindustry network management: sub feeder, healthcare network management: sub feeder, data center network management: sub feeder, buildings multi-site network management: sub feeder, buildings large building network management: sub feeder, buildings medium building network management: sub feeder, buildings medium building network management: main incomer, buildings small building network management: sub feeder, buildings small building network management: main incomer, industry cost management: cost allocation: sub feeder, industry cost management: cost allocation: main incomer, healthcare cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: main incomer, data center cost management: cost allocation: sub feeder, data center cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing: sub feeder, industry cost management: billing: main incomer, healthcare cost management: billing: sub feeder, healthcare cost management: billing: main incomer, data center cost management: billing: sub feeder, data center cost management: billing: main incomer, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer
Product namePowerLogic PM5000
Product or component typepower meter
Complementary
Device applicationpower monitoring
Display typemonochrome graphic LCD
Measurement accuracyreactive power +/- 2 %, apparent energy +/- 0.5 %, voltage +/- 0.5 %, current +/- 0.5 %, power factor +/- 0.5, frequency +/- 0.05 %, apparent power +/- 0.5 %, active power +/- 0.5 %, reactive energy +/- 2 %, active energy +/- 0.5 %
Mounting modeflush-mounted
[Us] rated supply voltage100...300 V DC, 90...450 V AC 45...65 Hz
Depth72 mm
Frequency measurement range45-65 Hz
Communication port protocolJBUS, Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V
Type of measurementactive and reactive power, energy, power factor, frequency, voltage, current
Product certificationscULus conforming to UL 61010-1, CE conforming to IEC 61010-1
StandardsIEC 62052-31:2015, IEC 62052-11:2020, IEC 62053-23:2020, IEC 61557-12:2015, IEC 62053-24, IEC 60529, IEC 62053-22:2020, EN 50470-1, EN 50470-3, UL 61010-1
Height96 mm
Power quality analysisup to the 15th harmonic
Communication port supportRS485
Maximum power consumption in VA11 VA at 415 V
Accuracy classclass 0.5S active energy conforming to IEC 62053-22
Width96 mm
Analogue input typecurrent (impedance <= 0.3 mOhm), voltage (impedance 5 MOhm)
[In] rated current5 A, 1 A
Data recordingmin/max of instantaneous values, time stamping
Poles description3P, 3P + N, 1P + N
Mounting supportframework
Connections - terminalsRS485 link: screw terminal block4 , input/output circuit: screw terminal block6 , current transformer: screw terminal block6 , control circuit: screw terminal block2 , voltage circuit: screw terminal block4
Measurement current50-8500 mA
Net weight380 g
Number of inputs0
Display resolution128 x 128 pixels
Ride-through time50 ms 125 V DC typical, 100 ms 415 V AC typical, 100 ms 230 V AC typical, 80 ms 120 V AC typical
Number of outputs1 digital
Sampling rate64 samples/cycle
Measurement voltage20-440 V AC 45...65 Hz between phase and neutral, 35-760 V AC 45...65 Hz between phases
Network frequency60 Hz, 50 Hz
Environment
Compatibility codePM5110
IP degree of protectionIP30 rear: conforming to IEC 60529, IP54 display: conforming to IEC 60529
Relative humidity5-95 % at 50-50 °C non-condensing
Ambient air temperature for storage-40-85 °C
Pollution degree2
Electromagnetic compatibilityvoltage dips and interruptions immunity test conforming to IEC 61000-4-11, surge immunity test class B conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, immunity to conducted disturbances - test level: 150 kHz...80 MHz conforming to IEC 61000-4-6, conducted and radiated emissions - test level: 150 kHz...80 MHz class B conforming to EN 55022, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted RF disturbances level 3 conforming to IEC 61000-4-6, electrostatic discharge level 4 conforming to IEC 61000-4-2, limits for harmonic current emissions class A conforming to IEC 61000-3-2, voltage dips and interruptions immunity test class A conforming to IEC 61000-4-11
Ambient air temperature for operation-25--20 °C (with reduced performance) display, -20-70 °C display, -25-70 °C meter
Operating altitude2000 m CAT III
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11.467 cm
Package 1 Width12.979 cm
Package 1 Length12.544 cm
Package 1 Weight449.0 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight7.19 kg
Unit Type of Package 33
Number of Units in Package 3288
Package 3 Height105.0 cm
Package 3 Width80.0 cm
Package 3 Length120.0 cm
Package 3 Weight206.4 kg
