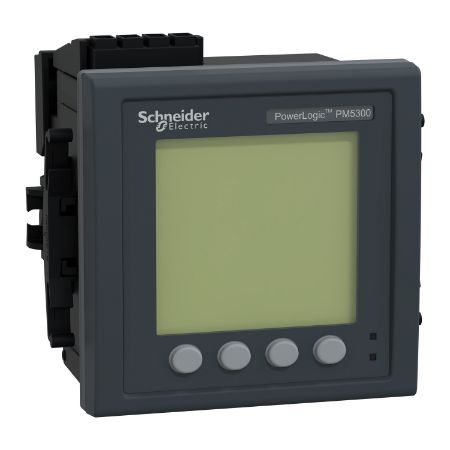

Picture of power meter PowerLogic PM5320, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms
SKU:

METSEPM5320

power meter PowerLogic PM5320, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms

$1,874.26 INC GST
Available for Shipping : 11-May-2025
Product Selector
The PowerLogic PM5320 power meter features Ethernet connectivity, supports harmonic analysis up to the 31st, and is equipped with 256KB memory, 2 digital inputs (DI), 2 digital outputs (DO), and 35 configurable alarms.
  • Advanced power and energy metering functions
  • Digital inputs and outputs for WAGES (Water, Air, Gas, and Electricity) monitoring and control
  • Modbus 485 communication port for reliable remote monitoring
  • Class 0.5S accuracy for precise energy measurement and identification of energy-saving opportunities
  • Measures up to the 31st harmonic for effective power quality management
  • Full-scale graphical LCD display for clear, easy-to-read data
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
CAD
Declaration of conformity
Catalogue
Instruction sheet
User guide
Product Page Link
Product Data Sheet

This flush-mount energy meter comes with a 96mm x 96mm backlit LCD display. It delivers Class 0.5S accuracy as per the IEC 62053-22 standard. The meter performs 64 samples per cycle for precise measurements.

It measures energy, active and reactive power, voltage, current, frequency, power factor, and harmonics up to the 31st order. Its built-in 256-kilobyte memory stores fixed parameters such as active and reactive energy.

This device operates in networks with a frequency of 50Hz or 60Hz. It supports supply voltages from 100 to 415 VAC and 125 to 250 VDC with line rated currents of 1A or 5A. The meter works with single-phase and neutral, three-phase, or three-phase and neutral configurations.

Its voltage measurement range is 35 to 690 VAC (phase-to-phase) and 20 to 400 VAC (phase-to-neutral). Both ranges operate at frequencies from 47 to 63 Hz.

For communication, the meter uses Modbus TCP/IP and BACnet/IP protocols. It connects via a 10/100 Mbit/s Ethernet interface with an RJ45 port. The device includes two configurable digital inputs or outputs. It supports 35 configurable alarms and allows for four distinct tariff schedules.

The product (METSEPM5320) measures 96mm (3.78 inches) in width and height, with a depth of 72mm (2.83 inches). It weighs 430 grams (15.2 ounces).

Products specifications

Attribute name Attribute value
Main
Device short name PM5320
Range PowerLogic
Market segment industry network management: sub feeder, healthcare network management: sub feeder, data center network management: sub feeder, buildings multi-site network management: sub feeder, buildings large building network management: sub feeder, buildings medium building network management: sub feeder, buildings medium building network management: main incomer, buildings small building network management: sub feeder, buildings small building network management: main incomer, industry cost management: cost allocation: sub feeder, industry cost management: cost allocation: main incomer, healthcare cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: main incomer, data center cost management: cost allocation: sub feeder, data center cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing: sub feeder, industry cost management: billing: main incomer, healthcare cost management: billing: sub feeder, healthcare cost management: billing: main incomer, data center cost management: billing: sub feeder, data center cost management: billing: main incomer, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer
Product name PowerLogic PM5000
Product or component type power meter
Complementary
Device application power monitoring, multi-tariff
Display type monochrome graphic LCD
Measurement accuracy reactive power +/- 2 %, apparent energy +/- 0.5 %, voltage +/- 0.5 %, current +/- 0.5 %, power factor +/- 0.5, frequency +/- 0.05 %, apparent power +/- 0.5 %, active power +/- 0.5 %, reactive energy +/- 2 %, active energy +/- 0.5 %
Mounting mode flush-mounted
[Us] rated supply voltage 100...300 V DC, 90...450 V AC 45...65 Hz
Information displayed tariff (4)
Depth 72 mm
Frequency measurement range 45-65 Hz
Communication port protocol BACnet IP, Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V
Type of measurement active and reactive power, energy, power factor, frequency, voltage, current
Product certifications cULus conforming to UL 61010-1, CE conforming to IEC 61010-1
Standards IEC 62052-31:2015, IEC 62052-11:2020, IEC 62053-23:2020, IEC 62053-24, EN 50470-3, UL 61010-1, IEC 61557-12:2015, IEC 60529, EN 50470-1, IEC 62053-22:2020
Memory capacity 256 kB
Height 96 mm
Power quality analysis up to the 31st harmonic
Communication port support ETHERNET
Maximum power consumption in VA 11 VA at 415 V
Accuracy class class 0.5S active energy conforming to IEC 62053-22
Width 96 mm
Analogue input type current (impedance <= 0.3 mOhm), voltage (impedance 5 MOhm)
[In] rated current 5 A, 1 A
Data recording data logs, time stamping, event logs, min/max of instantaneous values, alarm logs, maintenance logs
Poles description 3P, 3P + N, 1P + N
Mounting support framework
Connections - terminals Ethernet network: RJ45 connector, relay output: screw terminal block4 , input/output circuit: screw terminal block6 , current transformer: screw terminal block6 , control circuit: screw terminal block2 , voltage circuit: screw terminal block4
Measurement current 5-8500 mA
Net weight 430 g
Number of inputs 2 digital
Display resolution 128 x 128 pixels
Ride-through time 50 ms 125 V DC typical, 100 ms 415 V AC typical, 100 ms 230 V AC typical, 80 ms 120 V AC typical
Number of outputs 2 digital
Sampling rate 64 samples/cycle
Measurement voltage 20-440 V AC 45...65 Hz between phase and neutral, 35-760 V AC 45...65 Hz between phases
Network frequency 60 Hz, 50 Hz
Environment
Compatibility code PM5320
IP degree of protection IP30 rear: conforming to IEC 60529, IP54 display: conforming to IEC 60529
Relative humidity 5-95 % at 50-50 °C non-condensing
Ambient air temperature for storage -40-85 °C
Pollution degree 2
Electromagnetic compatibility radiated radio-frequency electromagnetic field immunity test class B conforming to IEC 61000-4-3, limitation of voltage changes, voltage fluctuations and flicker in low-voltage level 4 conforming to IEC 61000-3-3, conducted and radiated emissions class B conforming to EN 55022, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted RF disturbances level 3 conforming to IEC 61000-4-6, limits for harmonic current emissions class A conforming to IEC 61000-3-2, voltage dips and interruptions immunity test class A conforming to IEC 61000-4-11, surge immunity test level 4 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2, limitation of voltage changes, voltage fluctuations and flicker in low-voltage class A conforming to IEC 61000-3-3
Ambient air temperature for operation -25--20 °C (with reduced performance) display, -20-70 °C display, -25-70 °C meter
Operating altitude 3000 m CAT II, 2000 m CAT III
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.0 cm
Package 1 Width 12.6 cm
Package 1 Length 12.6 cm
Package 1 Weight 550.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.096 kg
Unit Type of Package 3 3
Number of Units in Package 3 288
Package 3 Height 105.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 206.4 kg
