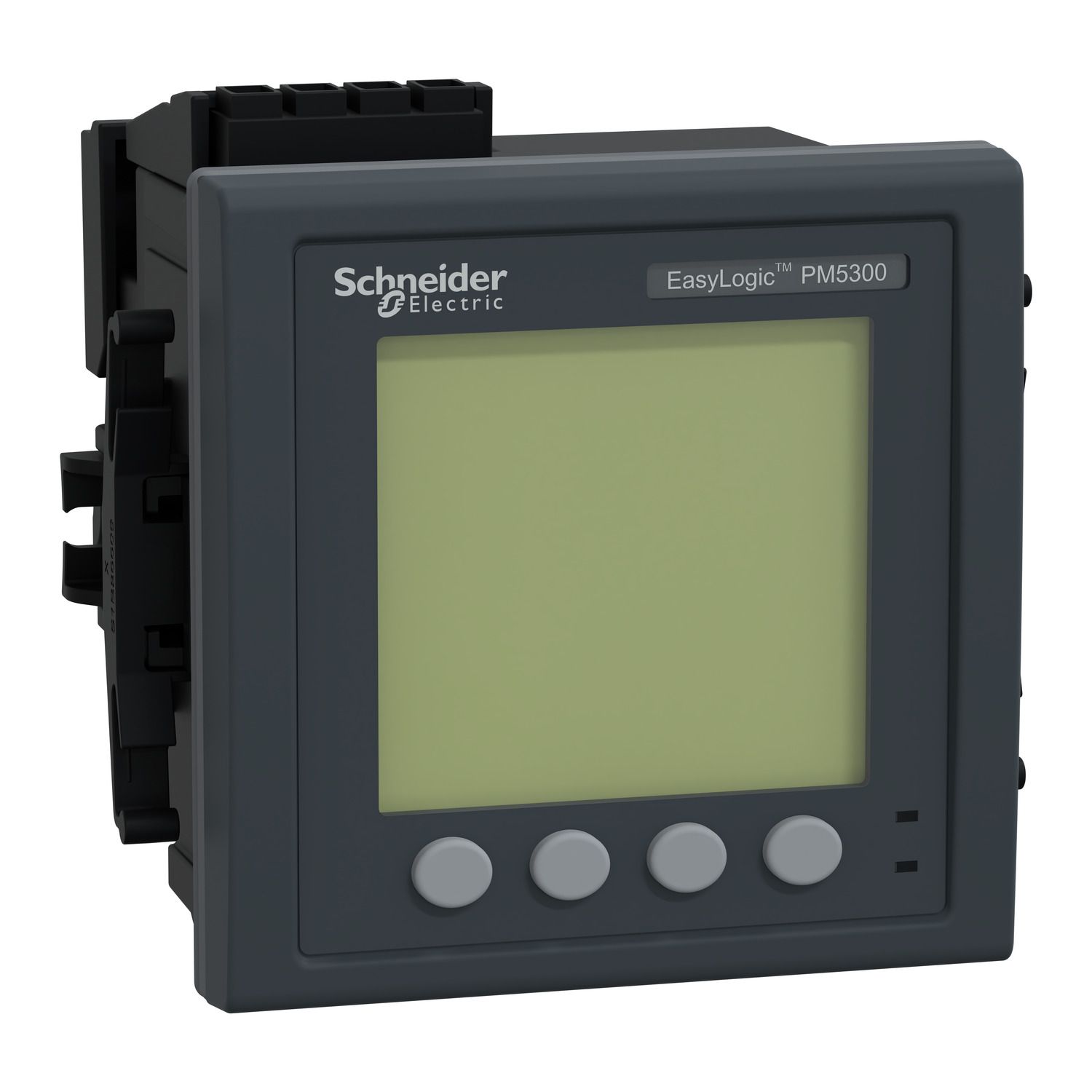

Picture of power meter PowerLogic PM5320R, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms, RJ45 LVCT
SKU:

METSEPM5320R

power meter PowerLogic PM5320R, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms, RJ45 LVCT

Please Contact Sales to buy this Product. click here
Product Selector
power meter PowerLogic PM5320R, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms, RJ45 LVCT
  • Feature-rich power and energy meters
  • Digital input and output for WAGES monitoring and control
  • Modbus TCP/ IP Ethernet communication port for remote monitoring
  • Identify energy savings opportunties with precision accuracy of Class 0.5S
  • 31st Hamronic measurement for Power Quality management
  • Full scape graphical LCD for clear viewing
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Declaration of conformity
Instruction sheet
CAD
User guide
Product Page Link
Product Data Sheet
This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display, compatible with 3-in-1 current transducer. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is proprietary and delivered by a 3-in-1 current transducer connected to the device with a RJ45 connector. Suitable for Three PhaseBusbar monitoring. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol are Modbus TCP/IP and BACnet/IP based on 10/100 Mbit/s, Ethernet with RJ45 port support. The meter also has two digital inputs or digital outputs, configurable. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).

Products specifications

Attribute nameAttribute value
Main
Device short namePM5320R
RangePowerLogic
Product namePowerLogic PM5000
Market segmentindustry network management: sub feeder, healthcare network management: sub feeder, data center network management: sub feeder, buildings multi-site network management: sub feeder, buildings large building network management: sub feeder, buildings medium building network management: sub feeder, buildings medium building network management: main incomer, buildings small building network management: sub feeder, buildings small building network management: main incomer, industry cost management: cost allocation: sub feeder, industry cost management: cost allocation: main incomer, healthcare cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: main incomer, data center cost management: cost allocation: sub feeder, data center cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing: sub feeder, industry cost management: billing: main incomer, healthcare cost management: billing: sub feeder, healthcare cost management: billing: main incomer, data center cost management: billing: sub feeder, data center cost management: billing: main incomer, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer
Product or component typepower meter
Complementary
Maximum power consumption in VA11 VA at 415 V
Accuracy classclass 0.5S active energy conforming to IEC 62053-22
Device applicationpower monitoring, multi-tariff
Display typemonochrome graphic LCD
Width96 mm
Analogue input typecurrent 0.333 V (impedance 0.3 mOhm), voltage (impedance 5 MOhm)
[In] rated current5 A, 1 A
Data recordingevent logs, maintenance logs, min/max of instantaneous values, alarm logs, time stamping, data logs
Poles description3P + N, 3P, 1P + N
Mounting supportframework
Measurement accuracyreactive power +/- 2 %, apparent energy +/- 0.5 %, voltage +/- 0.5 %, current +/- 0.5 %, power factor +/- 0.5, frequency +/- 0.05 %, apparent power +/- 0.5 %, active power +/- 0.5 %, reactive energy +/- 2 %, active energy +/- 0.5 %
Mounting modeflush-mounted
[Us] rated supply voltage100...300 V DC, 90...450 V AC 45...65 Hz
Information displayedtariff (4)
Connections - terminalscurrent transformer: RJ45 connector1 , Ethernet network: RJ45 connector, relay output: screw terminal block4 , input/output circuit: screw terminal block6 , control circuit: screw terminal block2 , voltage circuit: screw terminal block4
Measurement current10-9000 mA
Depth72 mm
Net weight430 g
Number of inputs2 digital
Display resolution128 x 128 pixels
Ride-through time50 ms 125 V DC typical, 100 ms 415 V AC typical, 100 ms 230 V AC typical, 80 ms 120 V AC typical
Frequency measurement range45-65 Hz
Communication port protocolBACnet IP, Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V
Type of measurementactive and reactive power, energy, power factor, frequency, voltage, current
Product certificationscULus conforming to UL 61010-1, CE conforming to IEC 61010-1
StandardsIEC 62052-31:2015, IEC 62052-11:2020, IEC 62053-23:2020, IEC 62053-24, UL 61010-1, EN 50470-1, IEC 60529, EN 50470-3, IEC 61557-12:2015, IEC 62053-22:2020
Number of outputs2 digital
Memory capacity256 kB
Sampling rate64 samples/cycle
Measurement voltage20-440 V AC 45...65 Hz between phase and neutral, 35-760 V AC 45...65 Hz between phases
Height96 mm
Power quality analysisup to the 31st harmonic
Communication port supportETHERNET
Network frequency50 Hz, 60 Hz
Environment
Operating altitude<= 2000 m
Compatibility codePM5320R
IP degree of protectionIP30 rear: conforming to IEC 60529, IP54 display: conforming to IEC 60529
Relative humidity5-95 % at 50-50 °C non-condensing
Ambient air temperature for storage-40-85 °C
Pollution degree2
Electromagnetic compatibilityelectrical fast transient/burst immunity test conforming to IEC 61000-4-4, immunity to conducted disturbances - test level: 150 kHz...80 MHz level 4 conforming to IEC 61000-4-6, electrostatic discharge level 4 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 150 kHz...80 MHz conforming to IEC 61000-4-3, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted RF disturbances level 3 conforming to IEC 61000-4-6, limits for harmonic current emissions class A conforming to IEC 61000-3-2, voltage dips and interruptions immunity test level 3 conforming to IEC 61000-4-11, surge immunity test level 4 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 4 conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2, limitation of voltage changes, voltage fluctuations and flicker in low-voltage level 4 conforming to IEC 61000-3-3, conducted and radiated emissions class B conforming to EN 55022
Ambient air temperature for operation-25-70 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.05 cm
Package 1 Width9.6 cm
Package 1 Length9.6 cm
Package 1 Weight275.0 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight4.013 kg
