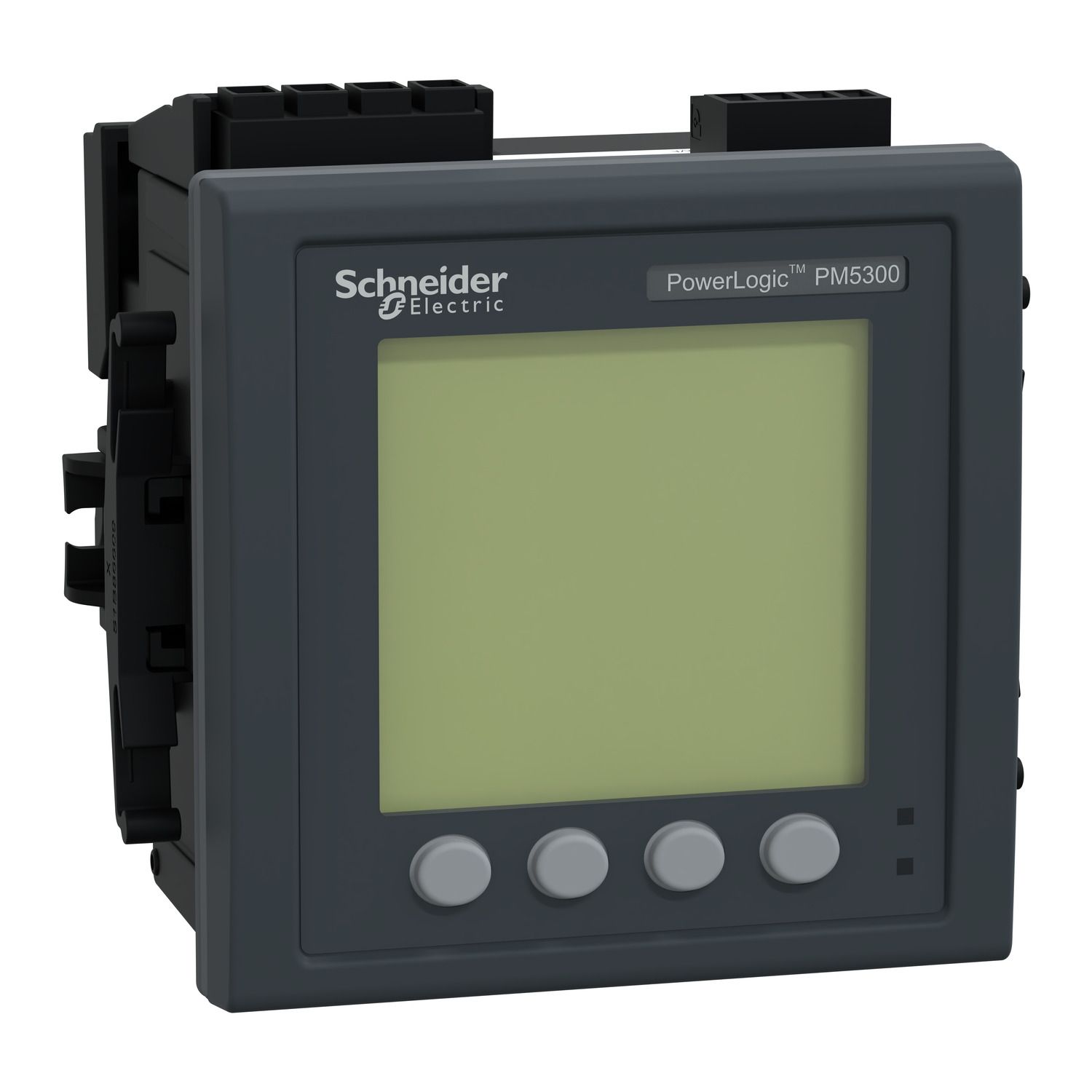

Picture of power meter PowerLogic PM5340, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms
SKU:

METSEPM5340

power meter PowerLogic PM5340, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms

$1,850.03
Available for Shipping : 02-Dec-2024
Product Selector
power meter PowerLogic PM5340, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms
  • Feature-rich power and energy meters
  • Digital input and output for WAGES monitoring and control relays
  • Modbus TCP/ IP Ethernet communication port for remote monitoring
  • Identify energy savings opportunties with precision accuracy of Class 0.5S
  • 31st Hamronic measurement for Power Quality management
  • Full scape graphical LCD for clear viewing
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Catalogue
CAD
Declaration of conformity
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol are Modbus TCP/IP and BACnet/IP based on 10/100 Mbit/s, Ethernet with RJ45 port support. The meter also has two digital inputs or digital outputs, configurable, and dual relay outputs. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).

Products specifications

Attribute name Attribute value
Main
Device short name PM5340
Range PowerLogic
Market segment industry network management: sub feeder, healthcare network management: sub feeder, data center network management: sub feeder, buildings multi-site network management: sub feeder, buildings large building network management: sub feeder, buildings medium building network management: sub feeder, buildings medium building network management: main incomer, buildings small building network management: sub feeder, buildings small building network management: main incomer, industry cost management: cost allocation: sub feeder, industry cost management: cost allocation: main incomer, healthcare cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: main incomer, data center cost management: cost allocation: sub feeder, data center cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing: sub feeder, industry cost management: billing: main incomer, healthcare cost management: billing: sub feeder, healthcare cost management: billing: main incomer, data center cost management: billing: sub feeder, data center cost management: billing: main incomer, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer
Product name PowerLogic PM5000
Product or component type power meter
Complementary
Device application power monitoring, multi-tariff
Display type monochrome graphic LCD
Measurement accuracy reactive power +/- 2 %, apparent energy +/- 0.5 %, voltage +/- 0.5 %, current +/- 0.5 %, power factor +/- 0.5, frequency +/- 0.05 %, apparent power +/- 0.5 %, active power +/- 0.5 %, reactive energy +/- 2 %, active energy +/- 0.5 %
Mounting mode flush-mounted
[Us] rated supply voltage 100...300 V DC, 90...450 V AC 45...65 Hz
Information displayed tariff (4)
Depth 72 mm
Frequency measurement range 45-65 Hz
Communication port protocol BACnet IP, Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V
Type of measurement active and reactive power, energy, power factor, frequency, voltage, current
Product certifications cULus conforming to UL 61010-1, CE conforming to IEC 61010-1
Standards IEC 62052-31:2015, IEC 62052-11:2020, IEC 62053-23:2020, IEC 61557-12:2015, EN 50470-3, IEC 62053-22:2020, UL 61010-1, IEC 60529, IEC 62053-24, EN 50470-1
Memory capacity 256 kB
Height 96 mm
Power quality analysis up to the 31st harmonic
Communication port support ETHERNET
Maximum power consumption in VA 11 VA at 415 V
Accuracy class class 0.5S active energy conforming to IEC 62053-22
Width 96 mm
Analogue input type current (impedance <= 0.3 mOhm), voltage (impedance 10 MOhm)
[In] rated current 1 A, 5 A
Data recording maintenance logs, min/max of instantaneous values, event logs, time stamping, alarm logs, data logs
Poles description 3P + N, 1P + N, 3P
Mounting support framework
Connections - terminals Ethernet network: RJ45 connector, relay output: screw terminal block4 , input/output circuit: screw terminal block6 , current transformer: screw terminal block6 , control circuit: screw terminal block2 , voltage circuit: screw terminal block4
Measurement current 5-9000 mA
Net weight 430 g
Number of inputs 2 digital
Display resolution 128 x 128 pixels
Ride-through time 50 ms 125 V DC typical, 400 ms 230 V AC typical, 100 ms 120 V AC typical
Number of outputs 2 digital, 2 relay
Sampling rate 64 samples/cycle
Measurement voltage 20-400 V AC 45...65 Hz between phase and neutral, 35-760 V AC 45...65 Hz between phases
Network frequency 50 Hz, 60 Hz
Environment
Compatibility code PM5340
IP degree of protection IP30 rear: conforming to IEC 60529, IP51 display: conforming to IEC 60529
Relative humidity 5-95 % at 50-50 °C non-condensing
Ambient air temperature for storage -40-85 °C
Pollution degree 2
Electromagnetic compatibility conducted and radiated emissions class B conforming to EN 55022, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted RF disturbances level 3 conforming to IEC 61000-4-6, electrostatic discharge level 4 conforming to IEC 61000-4-2, limits for harmonic current emissions class A conforming to IEC 61000-3-2
Ambient air temperature for operation -25--20 °C (with reduced performance) display, -20-70 °C display, -25-70 °C meter
Operating altitude <= 3000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.0 cm
Package 1 Width 12.4 cm
Package 1 Length 10.7 cm
Package 1 Weight 550.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.82 kg
