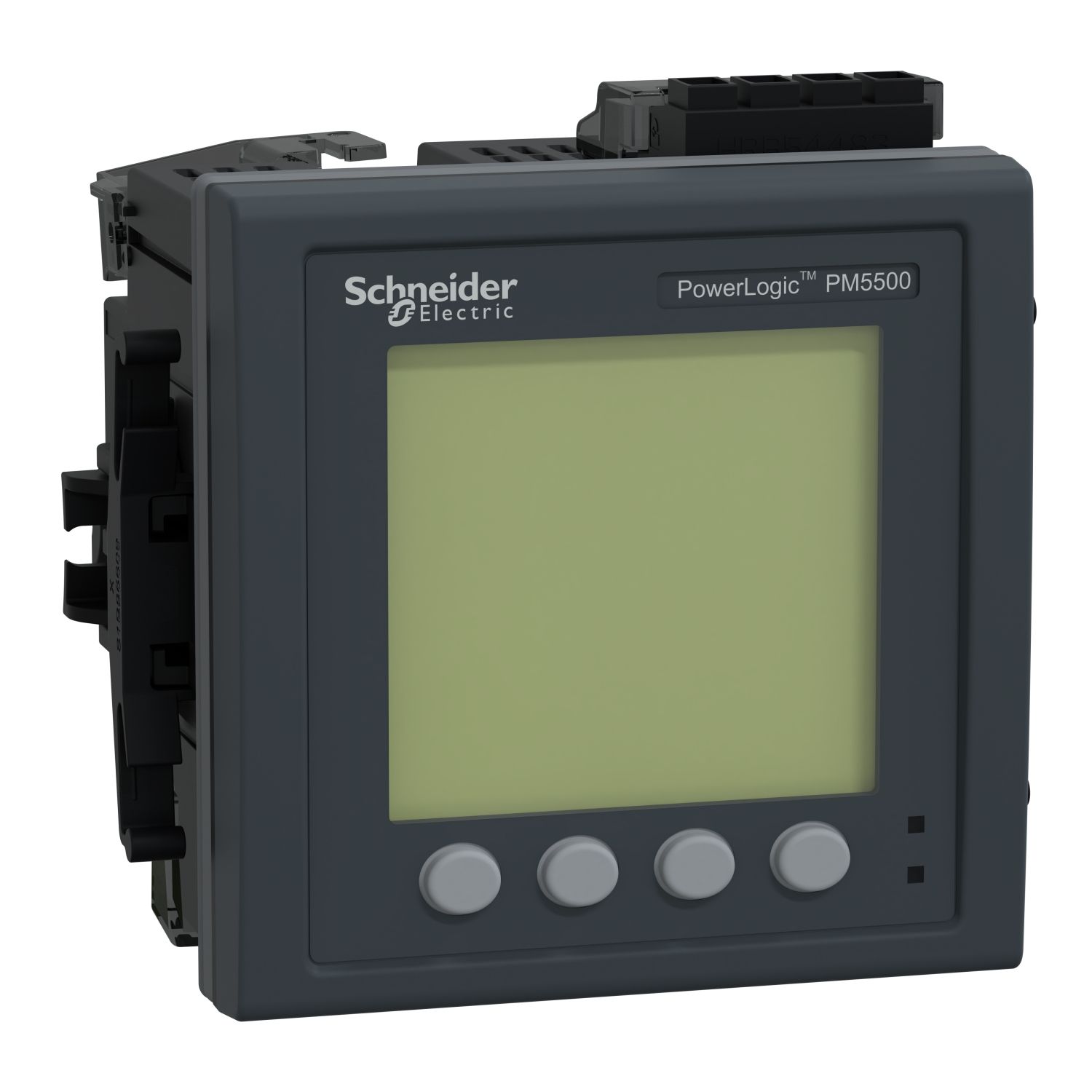

Picture of power meter PowerLogic PM5560, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms
SKU:

METSEPM5560

power meter PowerLogic PM5560, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms

$2,917.03
Product Selector
power meter PowerLogic PM5560, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms
  • Feature-rich power and energy meters
  • Digital input and output for WAGES monitoring and control relays
  • Modbus RS-485, TCP/ IP, Ethernet IP, BACnet protocols for varied application
  • Identify energy savings opportunties with precision accuracy of Class 0.2S
  • 63rd Hamronic measurement for Power Quality management
  • Full scape graphical LCD for clear viewing
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
End of life manual
CAD
Catalogue
Product environmental
Declaration of conformity
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 63rd Harmonic. Include 1.1 MegaBytes of memory for up to 14 selectable parameters with configurable interval and duration. This meter also feature the direct monitoring of neutral current. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 480 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20 to 690 VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 45 to 65 Hz. Communication protocol are Modbus RTU and ASCII 2 wires with RS485 port support plus Modbus TCP/IP, Ethernet/IP and BACnet/IP based on 10/100 Mbit/s, daisy chain Ethernet with RJ45 port support. The embedded communication capabilities allow the support of the DNP 3.0 protocol, the access to an onboard web server and a Serial to Ethernet gateway. The meter also has four digital inputs with WAGES support and two digital outputs. There are 52 configurable alarms and it supports eight tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 3.03 inches (77 millimetres), height 3.78 inches (96 millimetres) and product weight 15.9 onces (450 g).

Products specifications

Attribute nameAttribute value
Main
Device short namePM5560
RangePowerLogic
Market segmentindustry network management: sub feeder, healthcare network management: sub feeder, data center network management: sub feeder, buildings multi-site network management: sub feeder, buildings large building network management: sub feeder, buildings medium building network management: sub feeder, buildings medium building network management: main incomer, buildings small building network management: sub feeder, buildings small building network management: main incomer, industry cost management: cost allocation: sub feeder, industry cost management: cost allocation: main incomer, healthcare cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: main incomer, data center cost management: cost allocation: sub feeder, data center cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing: sub feeder, industry cost management: billing: main incomer, healthcare cost management: billing: sub feeder, healthcare cost management: billing: main incomer, data center cost management: billing: sub feeder, data center cost management: billing: main incomer, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer
Product namePowerLogic PM5000
Product or component typepower meter
Complementary
Metering typecalculated ground current, measured neutral current
Device applicationmulti-tariff, power monitoring, WAGES metering, gateway
Display typebacklit LCD
Web servicesreal time viewing of data, web server, diagnostic via predefined web pages, alarm notification by e-mail
Measurement accuracyreactive power +/- 1 %, current +/- 0.15 %, power factor +/- 0.005, voltage +/- 0.1 %, active power +/- 0.2 %, reactive energy +/- 1 %, active energy +/- 0.2 %, frequency +/- 0.05 %, apparent power +/- 0.5 %
Mounting modeflush-mounted
[Us] rated supply voltage90...528 V AC 45...65 Hz, 100...300 V DC
Information displayedtariff (8)
Depth72 mm
Frequency measurement range45-65 Hz
Communication port protocolDNP3 over ethernet, BACnet IP, Ethernet Modbus TCP/IP daisy chain, Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V, JBUS, Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V
Type of measurementactive and reactive power, energy, power factor, frequency, voltage, current
Product certificationsBTL, cULus conforming to UL 61010-1, CE conforming to IEC 61010-1
StandardsIEC 62052-31:2015, IEC 62052-11:2020, IEC 62053-23:2020, ANSI C12.20, UL 61010-1, EN 50470-1, IEC 60529, IEC 62053-24, IEC 62053-22:2020, IEC 61557-12:2015, EN 50470-3
Memory capacity1.1 MB
Height96 mm
Power quality analysisup to the 63rd harmonic
Communication port supportETHERNET, RS485
Maximum power consumption in VA16 VA at 480 V
Accuracy classclass 0.2S active energy conforming to IEC 62053-22
Width96 mm
Analogue input typecurrent (impedance <= 0.3 mOhm), voltage (impedance 5 MOhm)
[In] rated current5 A, 1 A
Data recordingtime stamping, alarm logs, data logs, min/max of instantaneous values, maintenance logs, event logs
Poles description1P + N, 3P, 3P + N
Communication gatewayEthernet/serial
Mounting supportframework
Ethernet serviceSNMP-Traps, SNTP client
Connections - terminalsEthernet network: RJ45 connector2 , digital output: screw terminal block4 , digital input: screw terminal block8 , RS485 link: screw terminal block4 , current transformer: screw terminal block6 , control circuit: screw terminal block2 , voltage circuit: screw terminal block4
Measurement current50-10000 mA
Net weight450 g
Number of inputs4 digital
Display resolution128 x 128 pixels
Ride-through time50 ms 125 V DC typical, 129 ms 230 V AC typical, 35 ms 120 V AC typical
Number of outputs2 digital
Sampling rate128 samples/cycle
Measurement voltage20-828 V AC 45...65 Hz between phases, 20-400 V AC 45...65 Hz between phase and neutral
Network frequency50 Hz, 60 Hz
Environment
Compatibility codePM5560
IP degree of protectionIP30 rear: conforming to IEC 60529, IP54 display: conforming to IEC 60529
Relative humidity5-95 % at 50-50 °C non-condensing
Ambient air temperature for storage-40-85 °C
Pollution degree2
Electromagnetic compatibilityvoltage dips and interruptions immunity test conforming to IEC 61000-4-11, surge immunity test level 4 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2, limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3, conducted and radiated emissions class B conforming to EN 55022, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted RF disturbances level 3 conforming to IEC 61000-4-6, limits for harmonic current emissions class A conforming to IEC 61000-3-2
Ambient air temperature for operation-25-70 °C
Operating altitude<= 3000 m
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height12.91 cm
Package 1 Width13.271 cm
Package 1 Length13.277 cm
Package 1 Weight661.0 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight8.49 kg
