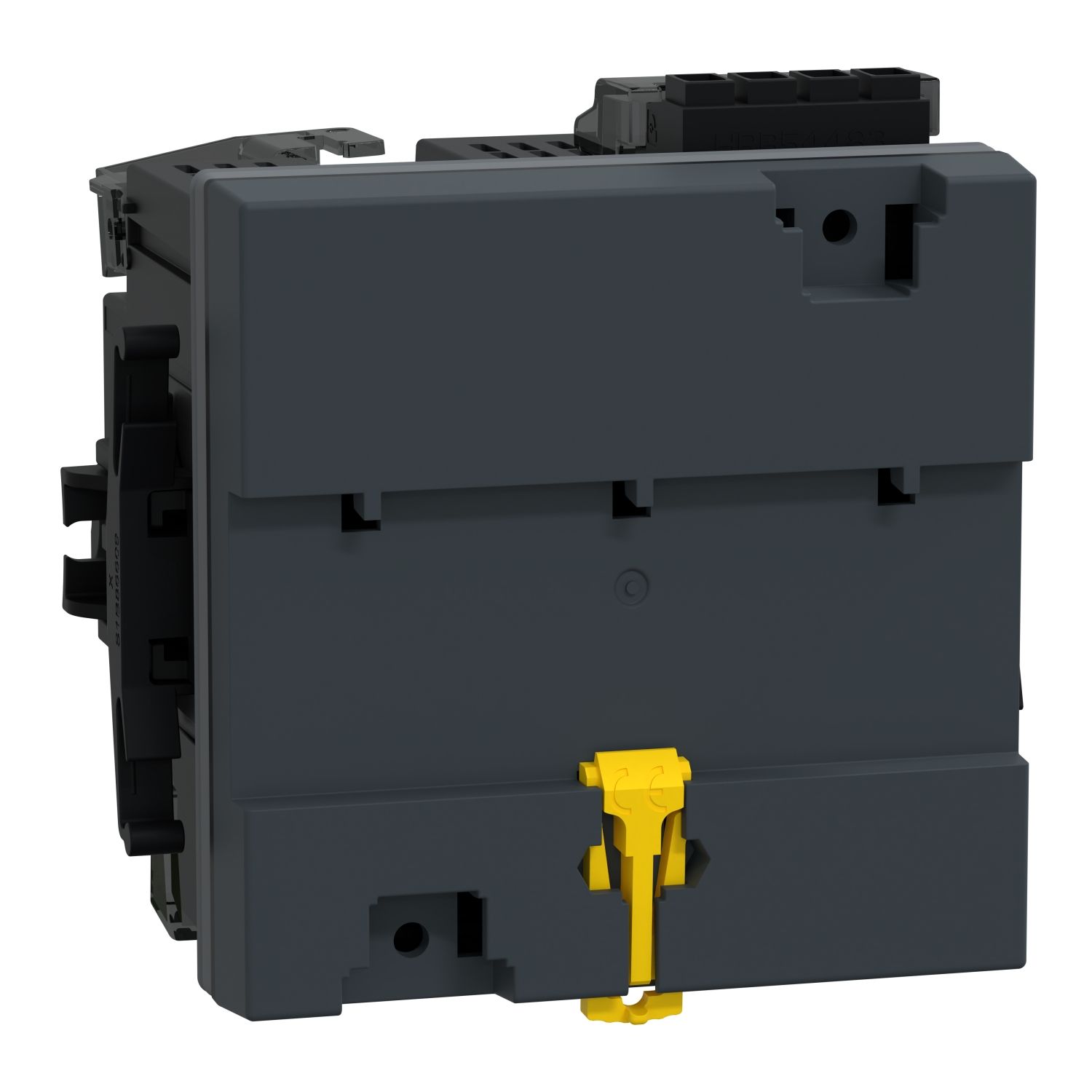

Picture of power meter PowerLogic PM5563, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms, DIN mounted
SKU:

METSEPM5563

power meter PowerLogic PM5563, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms, DIN mounted

$2,779.22
Available for Shipping : 24-Nov-2024
Product Selector
power meter PowerLogic PM5563, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms, DIN mounted
  • Feature-rich power and energy meters
  • Digital input and output for WAGES monitoring and control relays
  • Modbus RS-485, TCP/ IP, Ethernet IP, BACnet protocols for varied application
  • Identify energy savings opportunties with precision accuracy of Class 0.2S
  • 63rd Hamronic measurement for Power Quality management
  • Full scape graphical LCD for clear viewing
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Declaration of conformity
User guide
End of life manual
Product Page Link
Product Data Sheet
This device is a DIN-mount energy meter without display. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 63rd Harmonic. Include 1.1 MegaBytes of memory for up to 14 selectable parameters with configurable interval and duration. This meter also feature the direct monitoring of neutral current. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 480 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20 to 690 VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 45 to 65 Hz. Communication protocol are Modbus RTU and ASCII 2 wires with RS485 port support plus Modbus TCP/IP, Ethernet/IP and BACnet/IP based on 10/100 Mbit/s, daisy chain Ethernet with RJ45 port support. The embedded communication capabilities allow the support of the DNP 3.0 protocol, the access to an onboard web server and a Serial to Ethernet gateway. The meter also has four digital inputs with WAGES support and two digital outputs. There are 52 configurable alarms and it supports eight tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 3.03 inches (77 millimetres), height 3.78 inches (96 millimetres) and product weight 15.9 onces (450 g).

Products specifications

Attribute name Attribute value
Main
Device short name PM5563
Range PowerLogic
Market segment industry network management: sub feeder, healthcare network management: sub feeder, data center network management: sub feeder, buildings multi-site network management: sub feeder, buildings large building network management: sub feeder, buildings medium building network management: sub feeder, buildings medium building network management: main incomer, buildings small building network management: sub feeder, buildings small building network management: main incomer, industry cost management: cost allocation: sub feeder, industry cost management: cost allocation: main incomer, healthcare cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: main incomer, data center cost management: cost allocation: sub feeder, data center cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing: sub feeder, industry cost management: billing: main incomer, healthcare cost management: billing: sub feeder, healthcare cost management: billing: main incomer, data center cost management: billing: sub feeder, data center cost management: billing: main incomer, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer
Product name PowerLogic PM5000
Product or component type power meter
Complementary
Metering type calculated ground current, measured neutral current
Device application multi-tariff, gateway, WAGES metering, power monitoring
Display type without display
Web services real time viewing of data, web server, diagnostic via predefined web pages, alarm notification by e-mail
Measurement accuracy reactive power +/- 1 %, current +/- 0.15 %, power factor +/- 0.005, voltage +/- 0.1 %, active power +/- 0.2 %, reactive energy +/- 1 %, active energy +/- 0.2 %, frequency +/- 0.05 %, apparent power +/- 0.5 %
Mounting mode clip-on
[Us] rated supply voltage 90...528 V AC 45...65 Hz, 100...300 V DC
Information displayed tariff (8)
Depth 72 mm
Frequency measurement range 45-65 Hz
Communication port protocol DNP3 over ethernet, BACnet IP, Ethernet Modbus TCP/IP daisy chain, Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V, JBUS, Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V
Type of measurement active and reactive power, energy, power factor, frequency, voltage, current
Product certifications BTL, cULus conforming to UL 61010-1, CE conforming to IEC 61010-1
Standards IEC 62052-31:2015, IEC 62052-11:2020, IEC 62053-23:2020, ANSI C12.20, EN 50470-3, IEC 61557-12:2015, IEC 62053-22:2020, UL 61010-1, IEC 62053-24, IEC 60529, EN 50470-1
Memory capacity 1.1 MB
Height 96 mm
Power quality analysis up to the 63rd harmonic
Communication port support ETHERNET, RS485
Maximum power consumption in VA 16 VA at 480 V
Accuracy class class 0.2S active energy conforming to IEC 62053-22
Width 96 mm
Analogue input type current (impedance <= 0.3 mOhm), voltage (impedance 5 MOhm)
[In] rated current 1 A, 5 A
Data recording min/max of instantaneous values, data logs, time stamping, alarm logs, event logs, maintenance logs
Poles description 3P + N, 3P, 1P + N
Communication gateway Ethernet/serial
Mounting support DIN rail
Ethernet service SNTP client, SNMP-Traps
Connections - terminals Ethernet network: RJ45 connector2 , digital output: screw terminal block4 , digital input: screw terminal block8 , RS485 link: screw terminal block4 , current transformer: screw terminal block6 , control circuit: screw terminal block2 , voltage circuit: screw terminal block4
Measurement current 50-10000 mA
Net weight 450 g
Number of inputs 4 digital
Ride-through time 50 ms 125 V DC typical, 129 ms 230 V AC typical, 35 ms 120 V AC typical
Number of outputs 2 digital
Sampling rate 128 samples/cycle
Measurement voltage 20-828 V AC 45...65 Hz between phases, 20-400 V AC 45...65 Hz between phase and neutral
Network frequency 50 Hz, 60 Hz
Environment
Compatibility code PM5563
IP degree of protection IP30 rear: conforming to IEC 60529, IP54 display: conforming to IEC 60529
Relative humidity 5-95 % at 50-50 °C non-condensing
Ambient air temperature for storage -40-85 °C
Pollution degree 2
Electromagnetic compatibility voltage dips and interruptions immunity test conforming to IEC 61000-4-11, surge immunity test level 4 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2, limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3, conducted and radiated emissions class B conforming to EN 55022, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted RF disturbances level 3 conforming to IEC 61000-4-6, limits for harmonic current emissions class A conforming to IEC 61000-3-2
Ambient air temperature for operation -25-70 °C
Operating altitude <= 3000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.1 cm
Package 1 Width 9.6 cm
Package 1 Length 9.6 cm
Package 1 Weight 610.0 g
