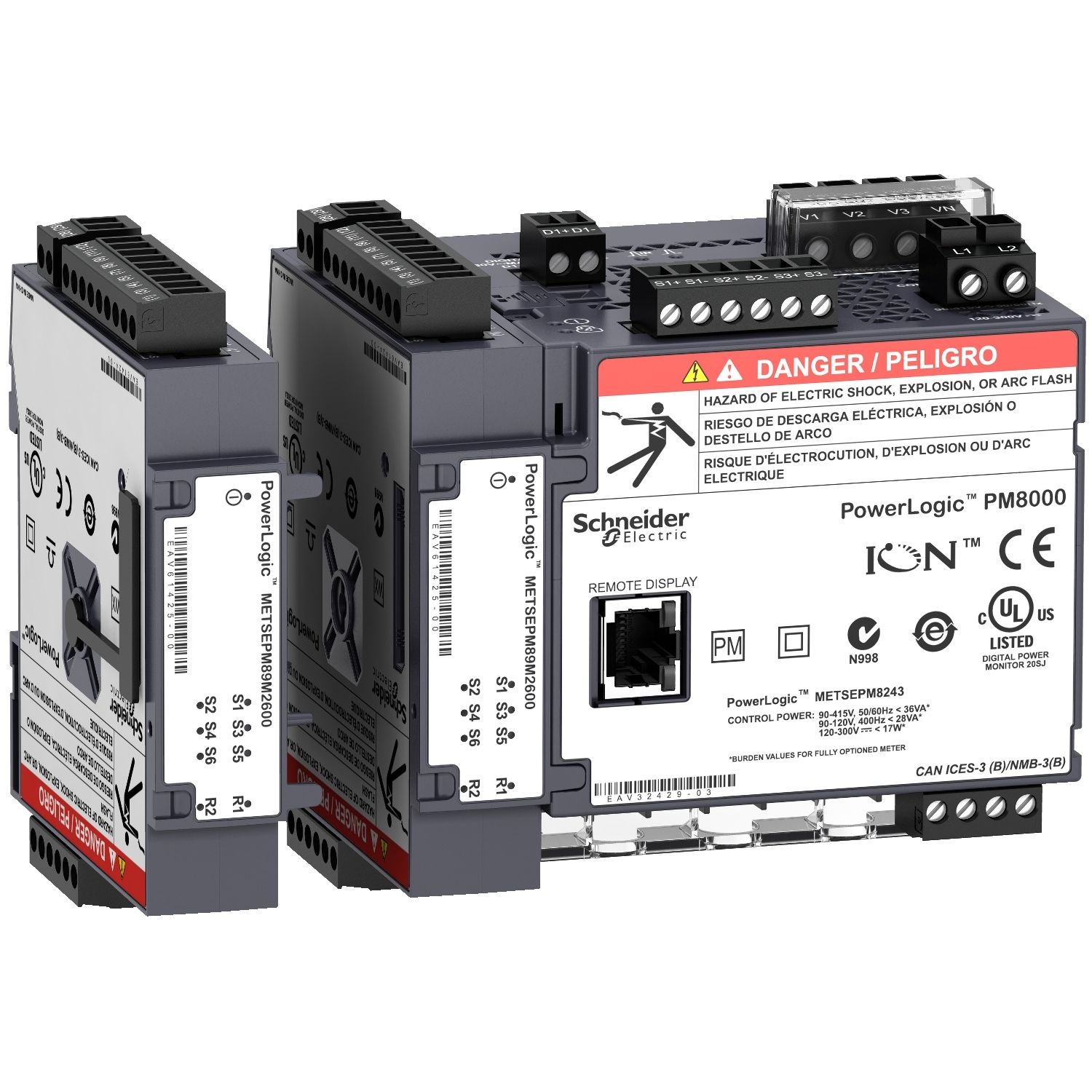

Picture of PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs

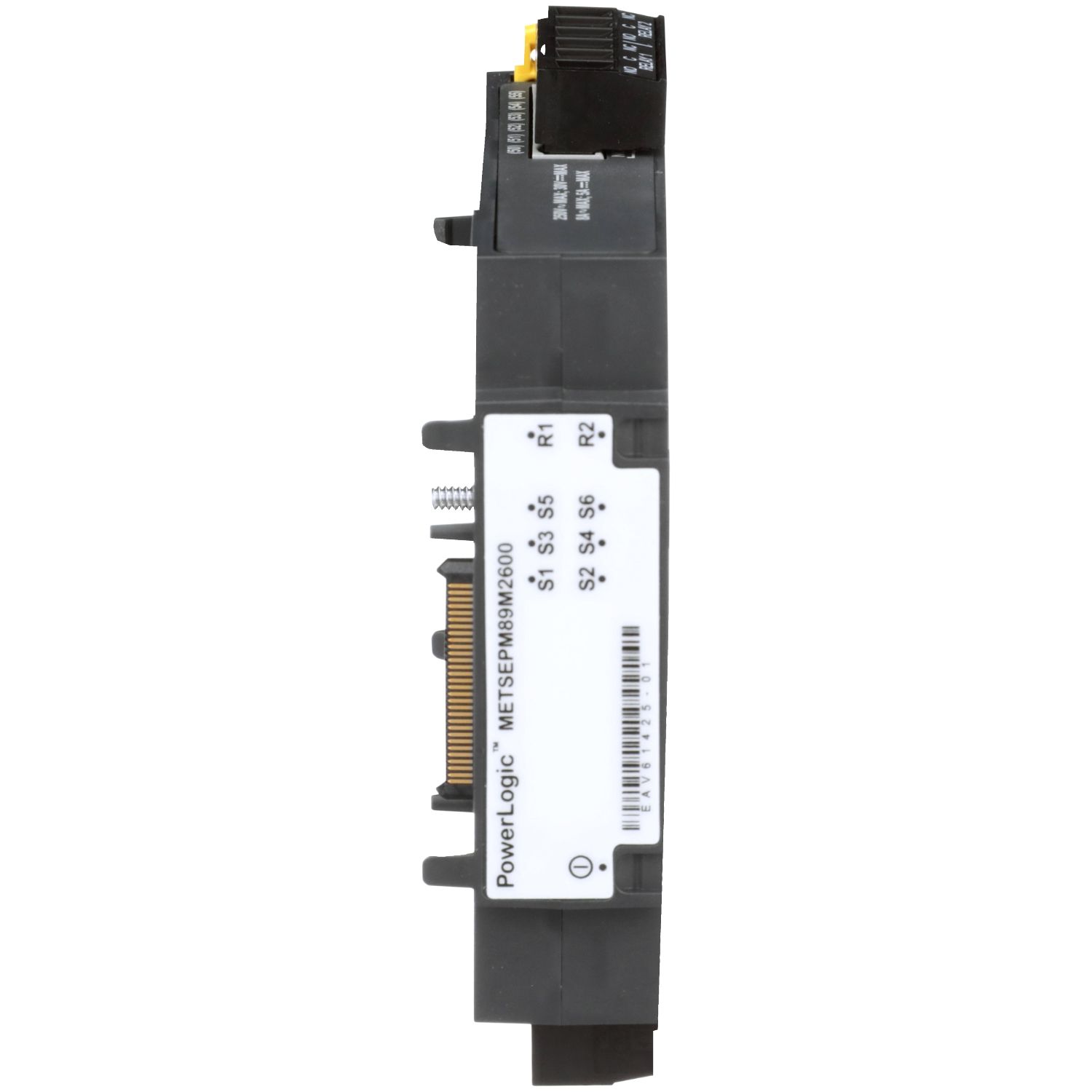

Picture of PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs

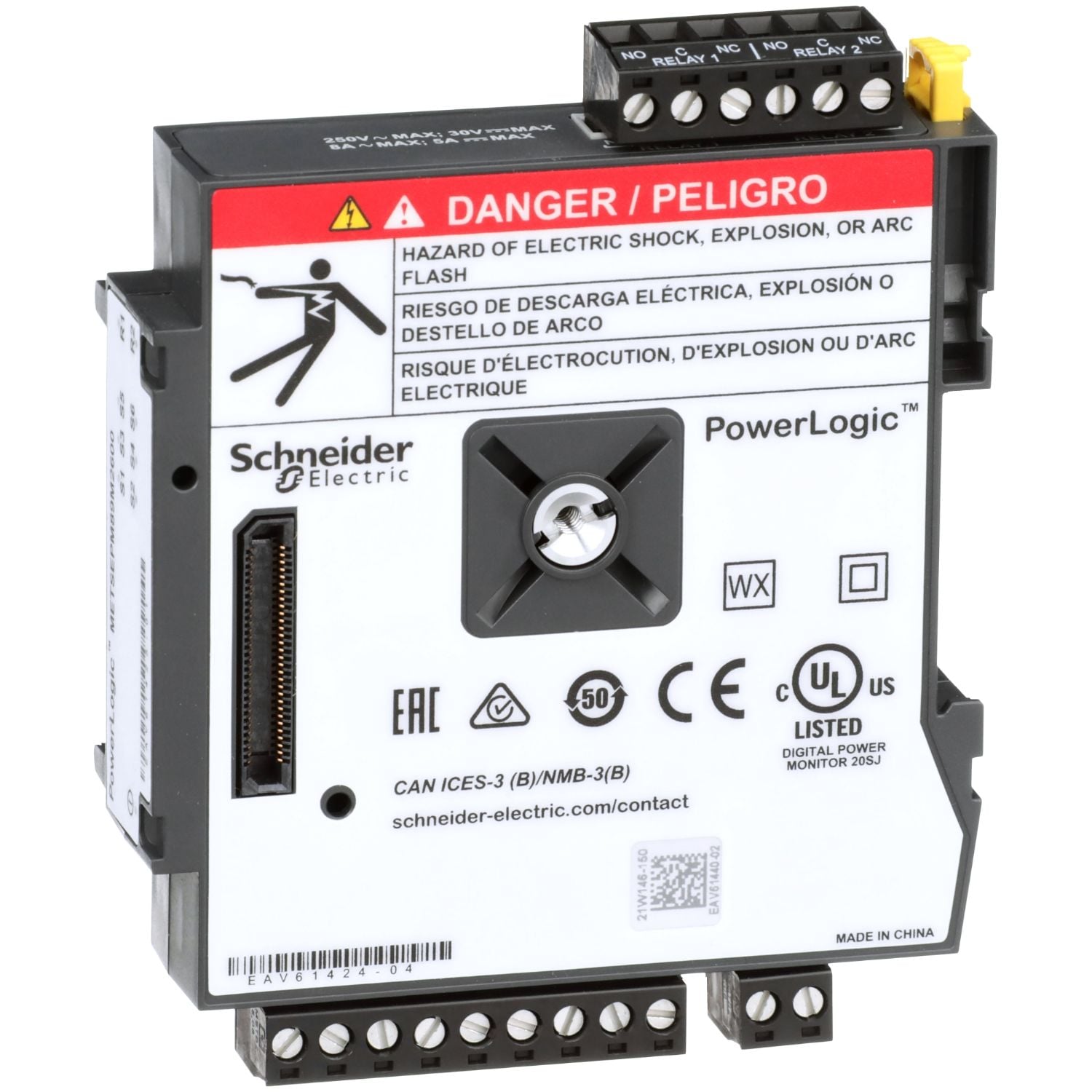

Picture of PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs

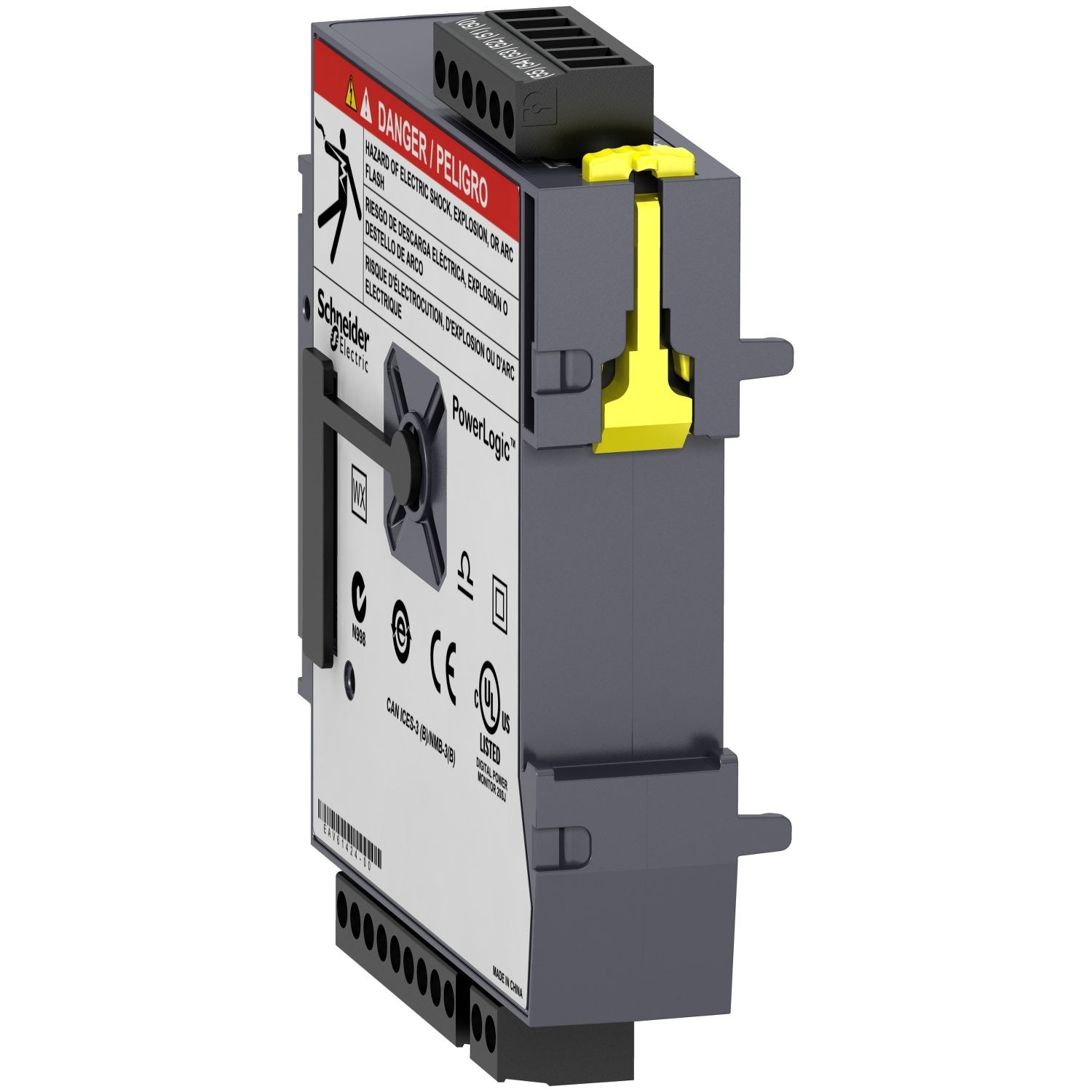

Picture of PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs
Picture of PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs
Picture of PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs
Picture of PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs
Picture of PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs
SKU:

METSEPM89M2600

PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs

Please Contact Sales to buy this Product. click here
Product Selector
PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Image of product
End of life manual
Product environmental
User guide
Instruction sheet
Image of product
Image of product
Image of product
Image of product
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional digital inputs and relay outputs. This digital module provides 6 digital inputs that support 30VAC or 60VDC. The digital inputs can be excited by the provided wetting source or a user provided external source. Plus 4 relay outputs to provide status indication and to provide control operations. The relay outputs support loads up to 8A at 240VAC. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.

Products specifications

Attribute nameAttribute value
Main
Device applicationoptional expansion module
RangePowerLogic
Product or component typeI/O module
Range compatibilityPowerLogic PowerLogic ION9000, PowerLogic PowerLogic ION7400, PowerLogic PowerLogic PM8000
Complementary
Number of outputs2 form C relay output
Height90.5 mm
Depth90.5 mm
Width22 mm
Number of inputs6 digital
Net weight140 g
Environment
IP degree of protectionIP30 conforming to IEC 60529
Ambient air temperature for storage-40-85 °C
Ambient air temperature for operation-25-70 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height10.0 cm
Package 1 Width12.0 cm
Package 1 Length6.0 cm
Package 1 Weight223.0 g
Unit Type of Package 22
Number of Units in Package 215
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight3.7 kg
Unit Type of Package 33
Number of Units in Package 3750
Package 3 Height95.0 cm
Package 3 Width80.0 cm
Package 3 Length120.0 cm
Package 3 Weight194.0 kg
