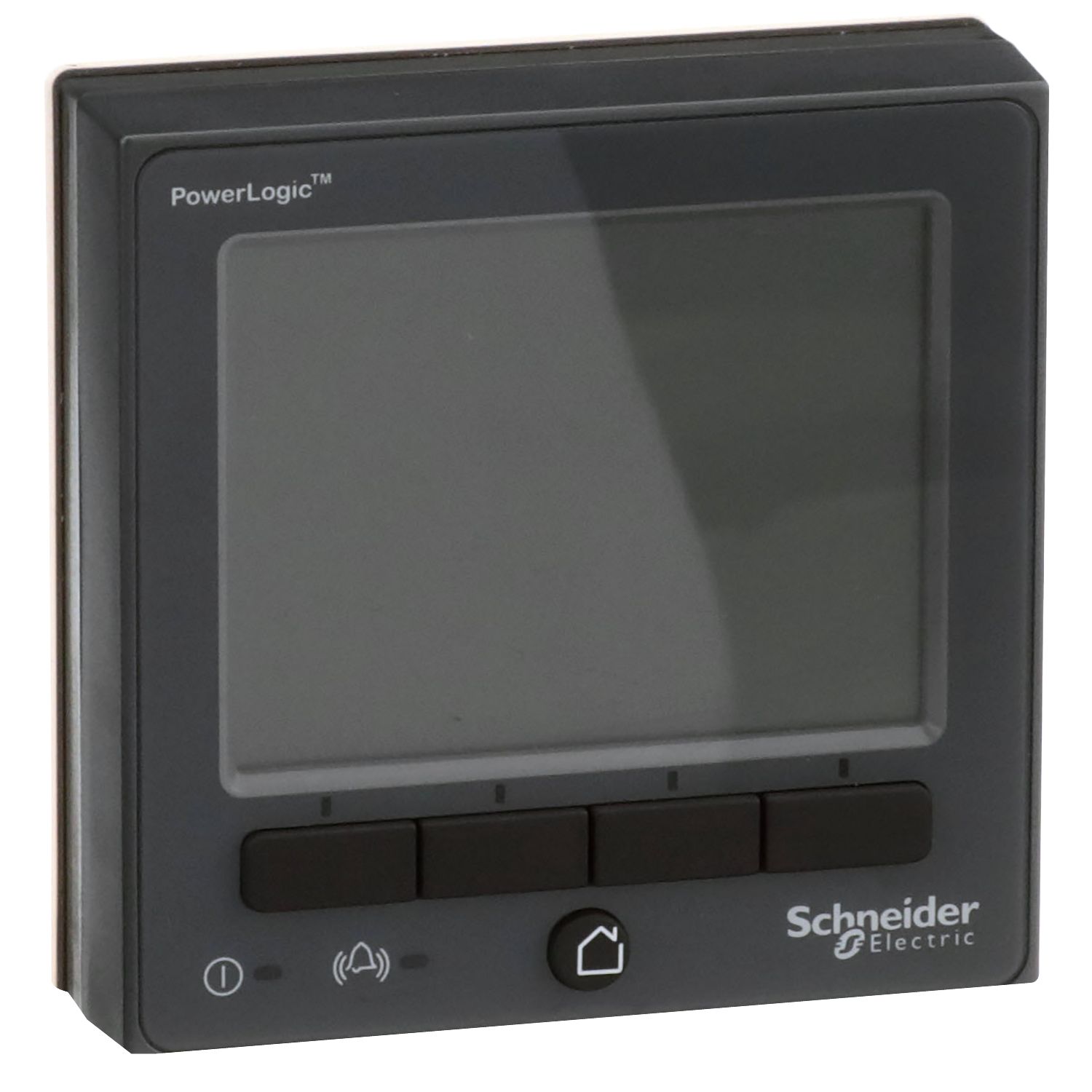

Picture of PowerLogic PM8000 - 89RD Remote display 96x96mm, with 3m cable + mount acc
SKU:

METSEPM89RD96

PowerLogic PM8000 - 89RD Remote display 96x96mm, with 3m cable + mount acc

$1,526.40
Available for Shipping : 24-Nov-2024
Product Selector
PowerLogic PM8000 - 89RD Remote display 96x96mm, with 3m cable + mount acc
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
User guide
Instruction sheet
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
Display (RD96) compatible with PowerLogic PM8000, ION7400 and ION9000. 96mm by 96mm color graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms and input output status. Viewable area: color TFT LCD, 320 pixels by 240 pixels QVGA. Panel mounting using a 30 mm push-button hole or 1/4 DIN cutout. Ingress Protection IP54 (UL type 12) rating.

Products specifications

Attribute name Attribute value
Main
Device application human-machine dialogue application
Display type colour TFT LCD
Range PowerLogic
Product or component type remote display
Range compatibility PowerLogic PowerLogic ION7400, PowerLogic PowerLogic PM8000
Complementary
Projecting depth 27 mm
Width 96 mm
Display size 3.5 inch
Mounting support framework remote display
Local signalling alarm: LED (red), status: LED (green)
Mounting mode flush-mounted
Control type 5 x push-button
Connector type RJ45
Messages display capacity graphic objects (bargraph, button, light...)
Provided equipment cable (with 3 m, mounting hardware
Net weight 300 g
Display resolution 320 x 240 pixels QVGA
Height 96 mm
Information displayed I/O status, system alarm, current, frequency, harmonic distortion, power, voltage, energy consumption
Environment
Operating altitude 0...3000 m
IP degree of protection IP54 conforming to IEC 60529
Relative humidity 5-95 %
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -25-60 °C
Product certifications IEC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.97 cm
Package 1 Width 13.97 cm
Package 1 Length 19.05 cm
Package 1 Weight 0.52 kg
