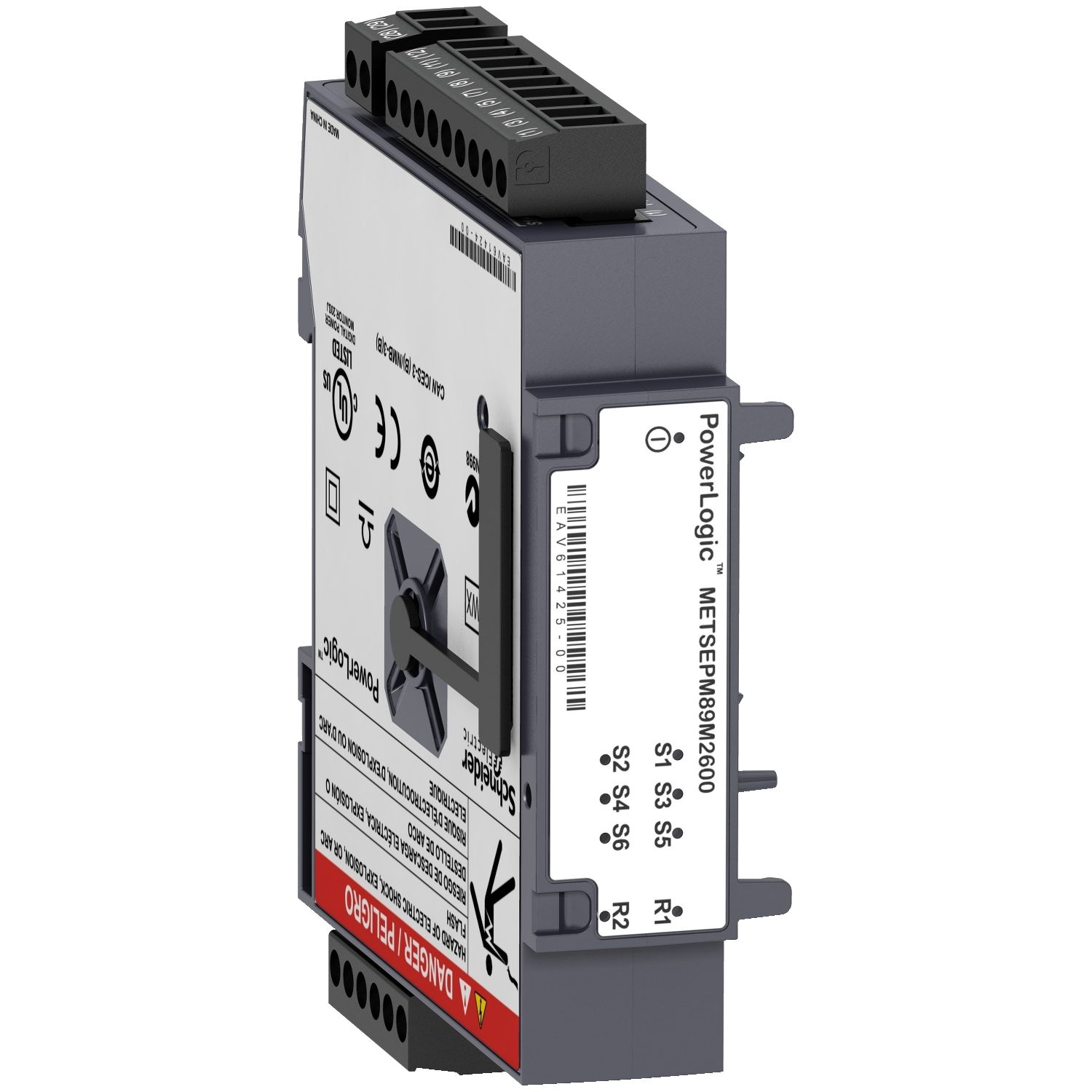

Picture of PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs

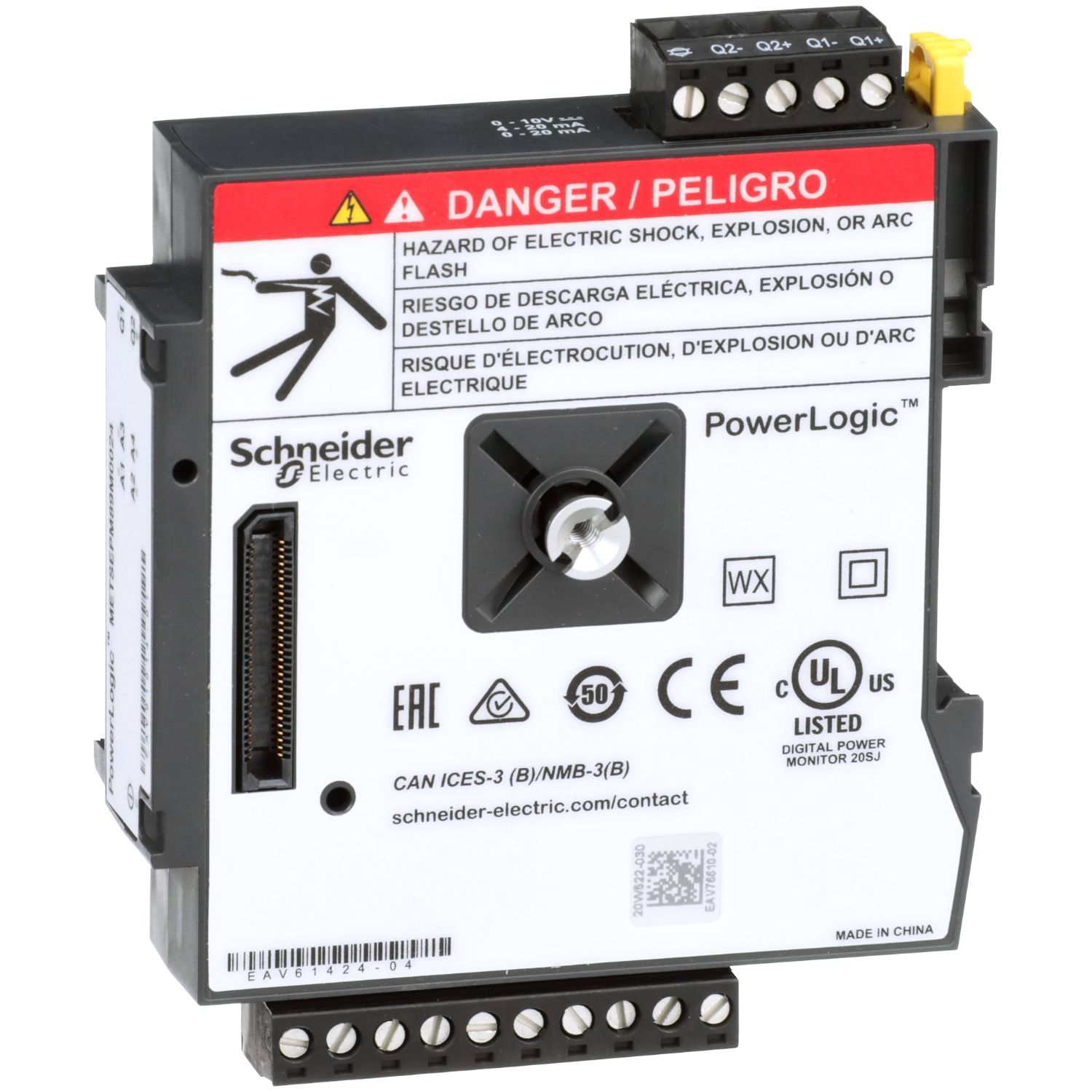

Picture of PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs

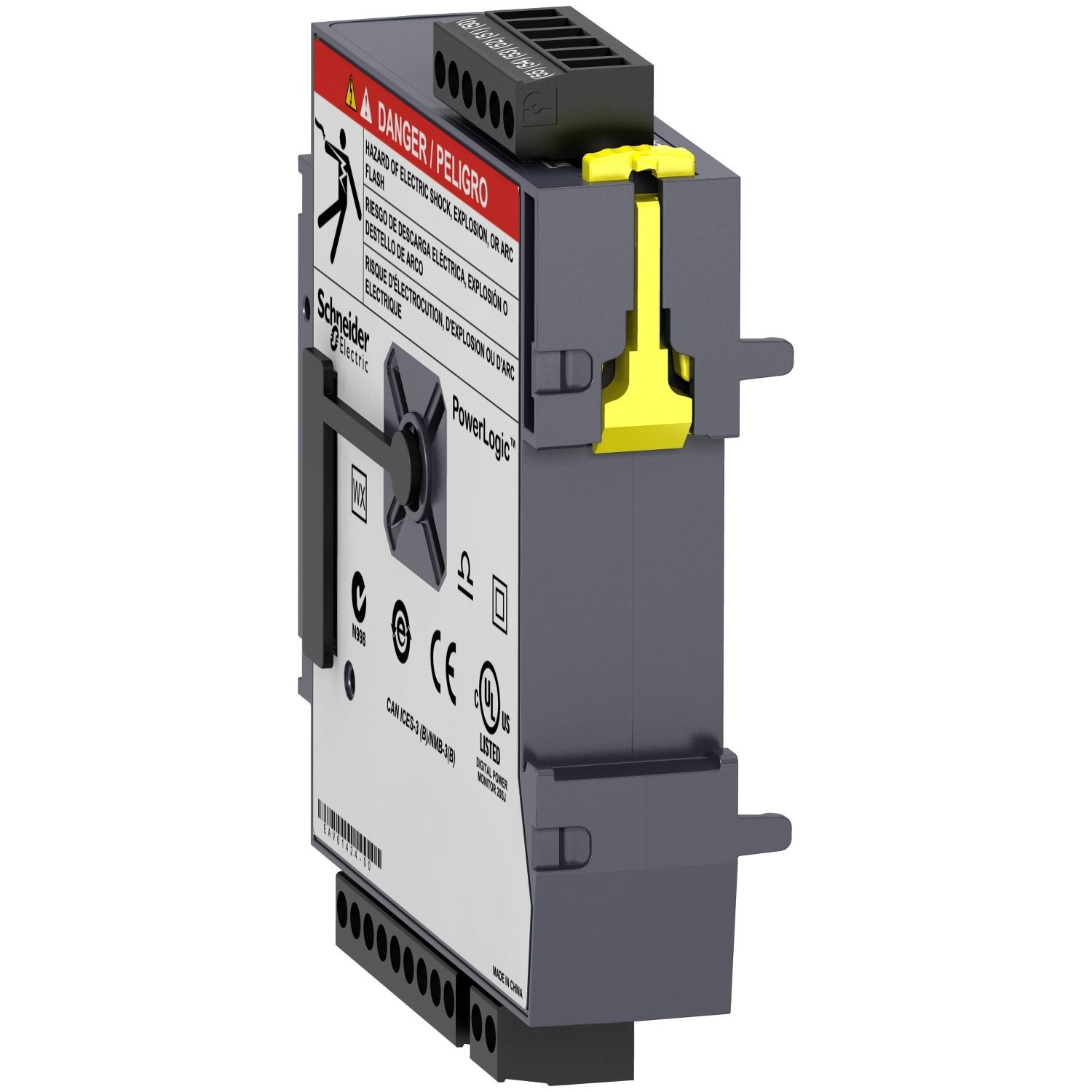

Picture of PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs
Picture of PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs
Picture of PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs
Picture of PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs
Picture of PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs
Picture of PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs
Picture of PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs
SKU:

METSEPM89M0024

PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs

Please Contact Sales to buy this Product. click here
Product Selector
PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Dec-2024
Image of product
Image of product
Image of product
Instruction sheet
User guide
Declaration of conformity
End of life manual
Image of product
Product environmental
Image of product
Image of product
Catalogue
Image of product
Product Page Link
Product Data Sheet

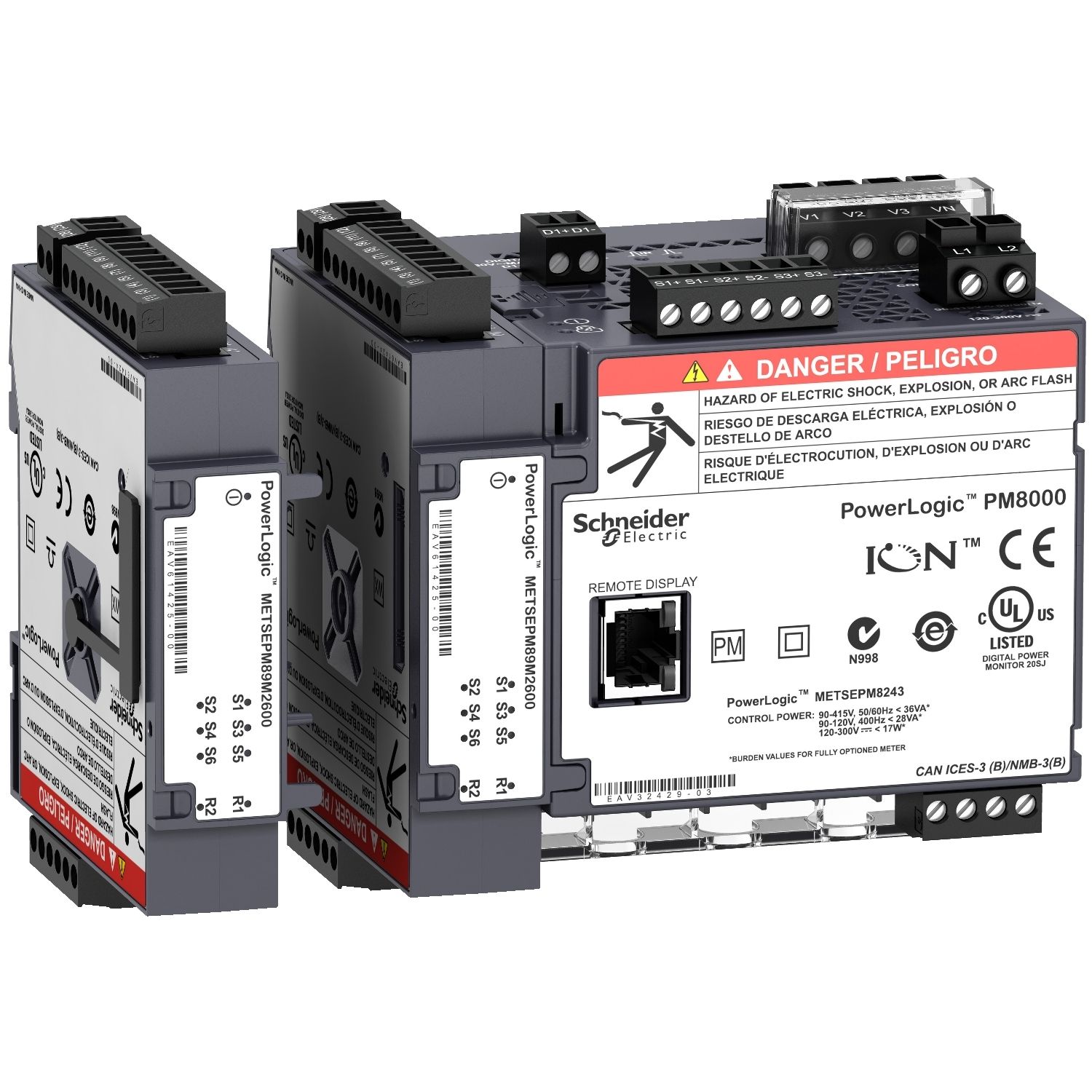

Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional analog inputs and analog outputs. This analog module provides 4 analog inputs that support 0 to 20mA, 4 to 20mA and 0 to 30V. Plus 2 analog outputs to interface with BMS and other systems. The analog outputs support 0 to 20mA, 4 to 20mA and 0 to 10V. Analog inputs and outputs are sampled by the host meter at a 1/2 cycle (8-10ms) rate. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.

Products specifications

Attribute nameAttribute value
Main
Device applicationoptional expansion module
RangePowerLogic
Product or component typeI/O module
Range compatibilityPowerLogic PowerLogic ION9000, PowerLogic PowerLogic ION7400, PowerLogic PowerLogic PM8000
Complementary
Depth90.5 mm
Width22 mm
Number of inputs4 analog 0...20 mA/4...20 mA 0...30 V
Net weight140 g
Number of outputs2 analog, 0-20 mA or 4-20 mA or 0...10 V
Height90.5 mm
Environment
IP degree of protectionIP30 conforming to IEC 60529
Ambient air temperature for storage-40-85 °C
Ambient air temperature for operation-25-70 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6 cm
Package 1 Width10 cm
Package 1 Length12 cm
Package 1 Weight223 g
