Picture of PowerLogic PM8000 - Communication Module - RS-485 4-wire module
SKU:

METSEPMRS4854W

PowerLogic PM8000 - Communication Module - RS-485 4-wire module

Please Contact Sales to buy this Product. click here
Product Selector
PowerLogic PM8000 - Communication Module - RS-485 4-wire module
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
User guide
Product environmental
Instruction sheet
Catalogue
End of life manual
Product Page Link
Product Data Sheet

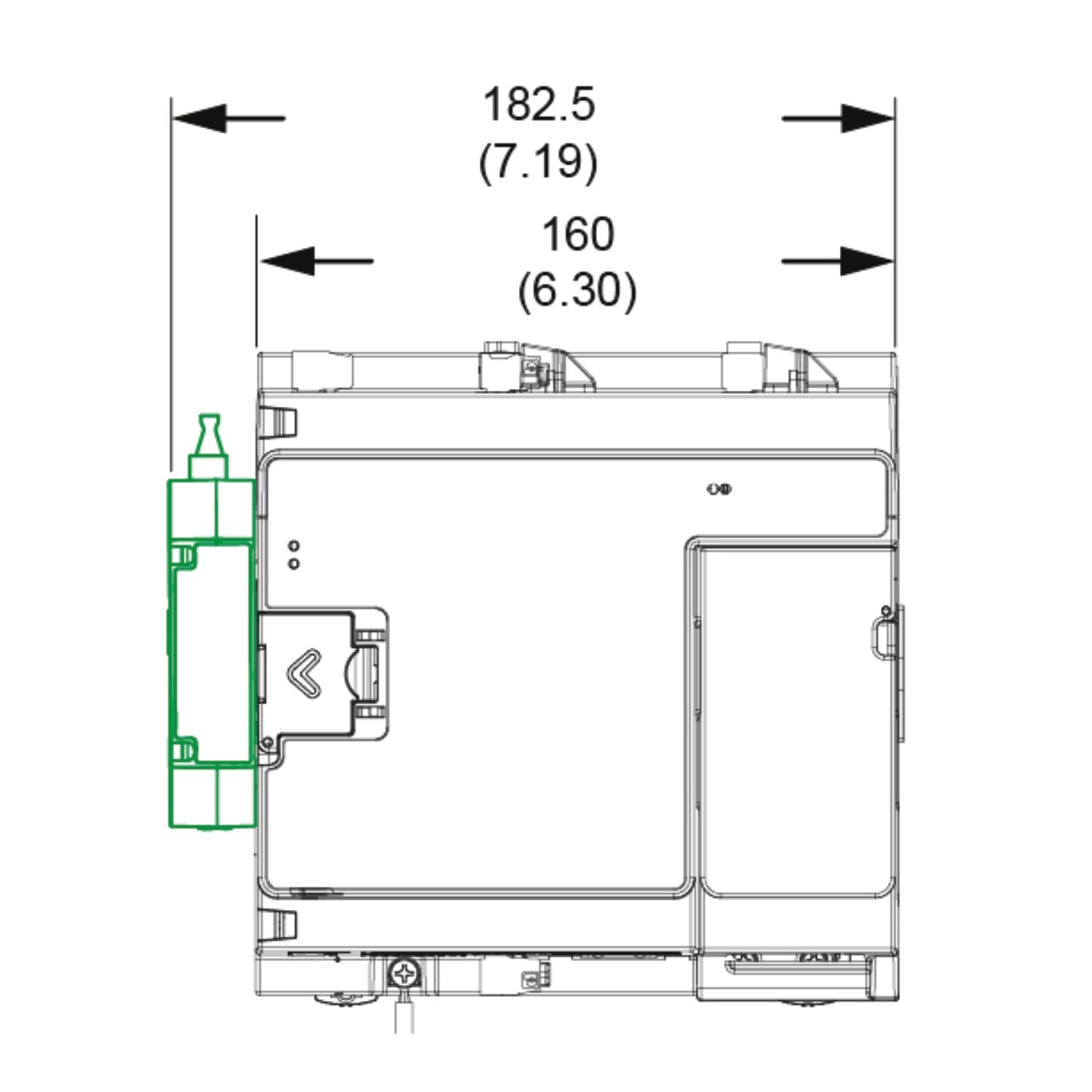

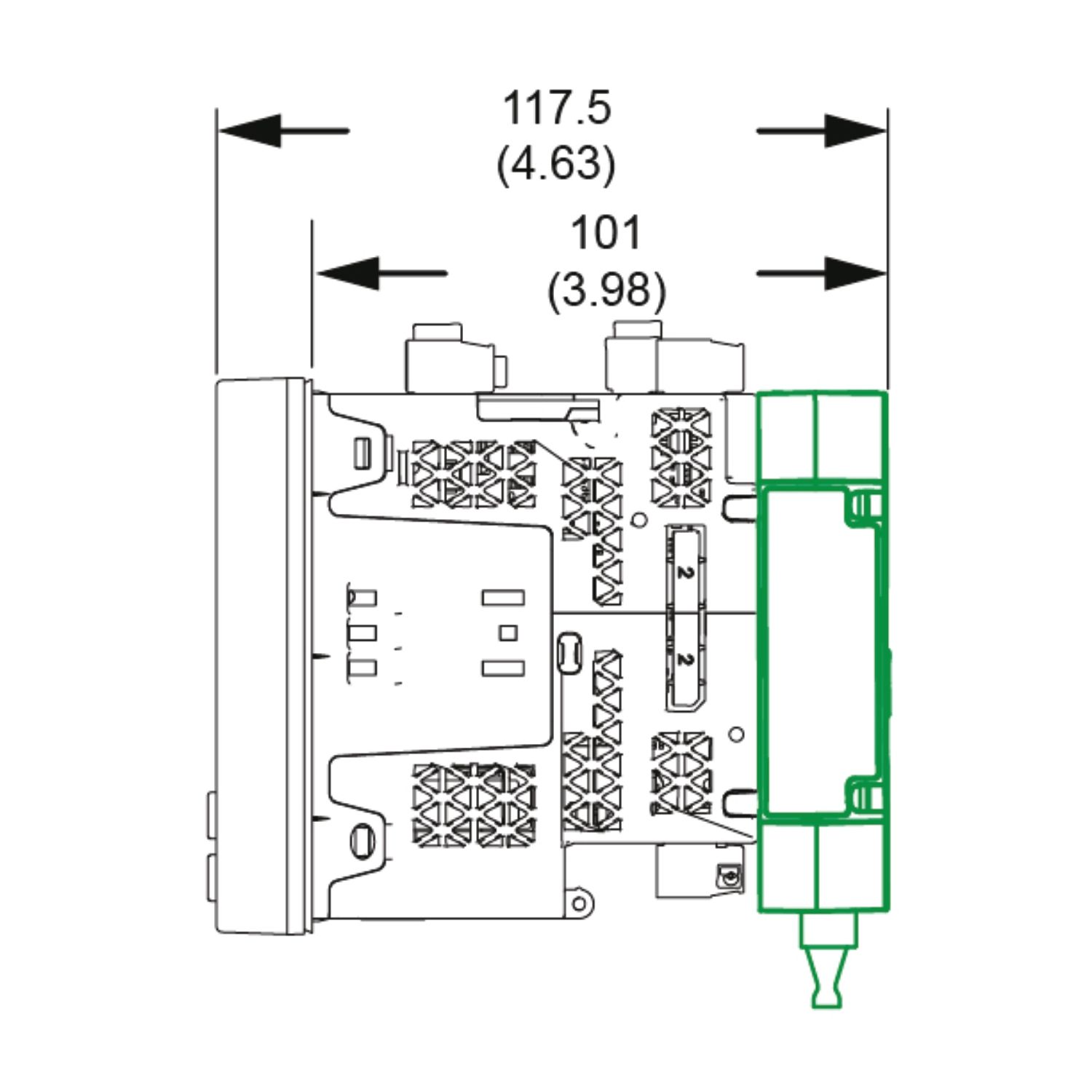

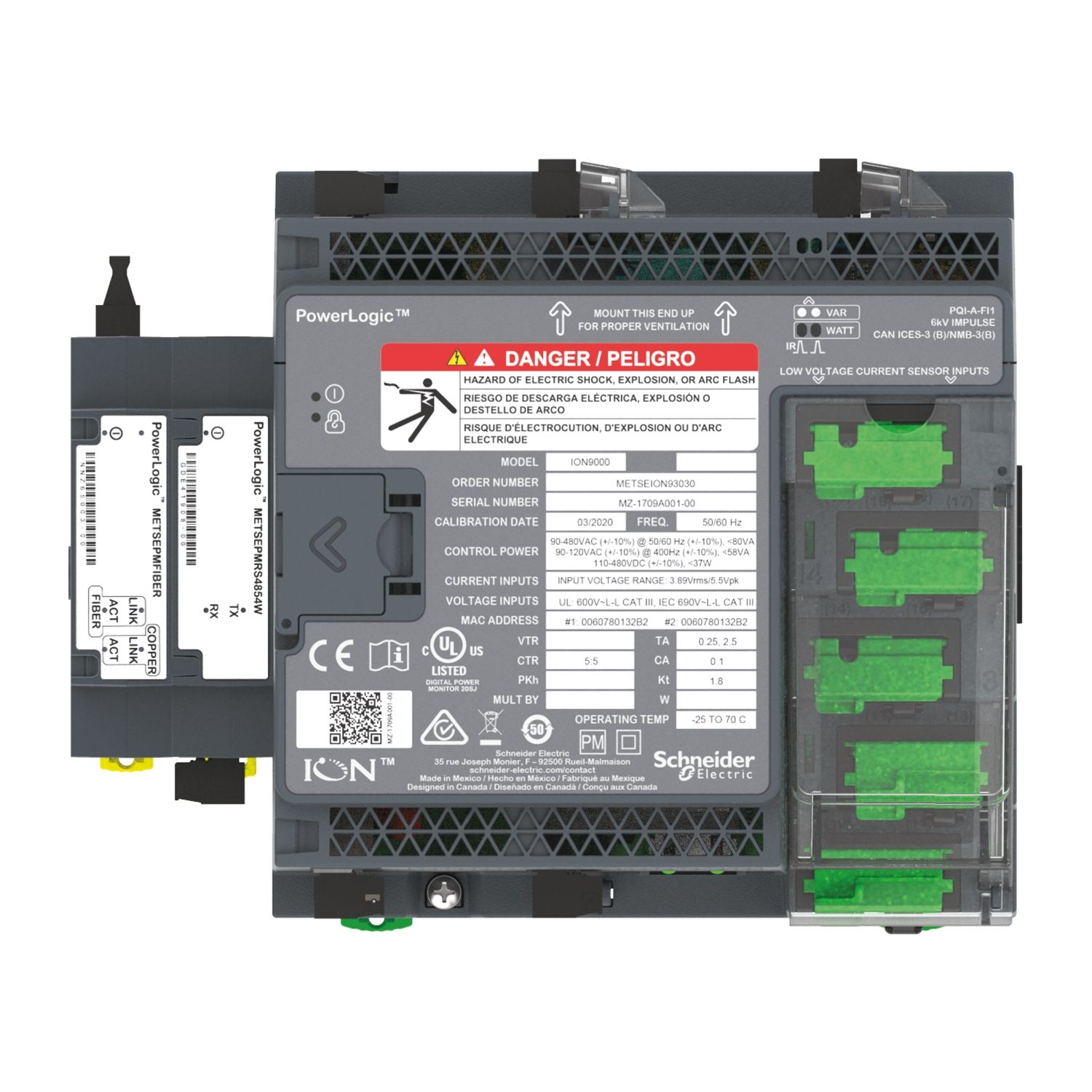

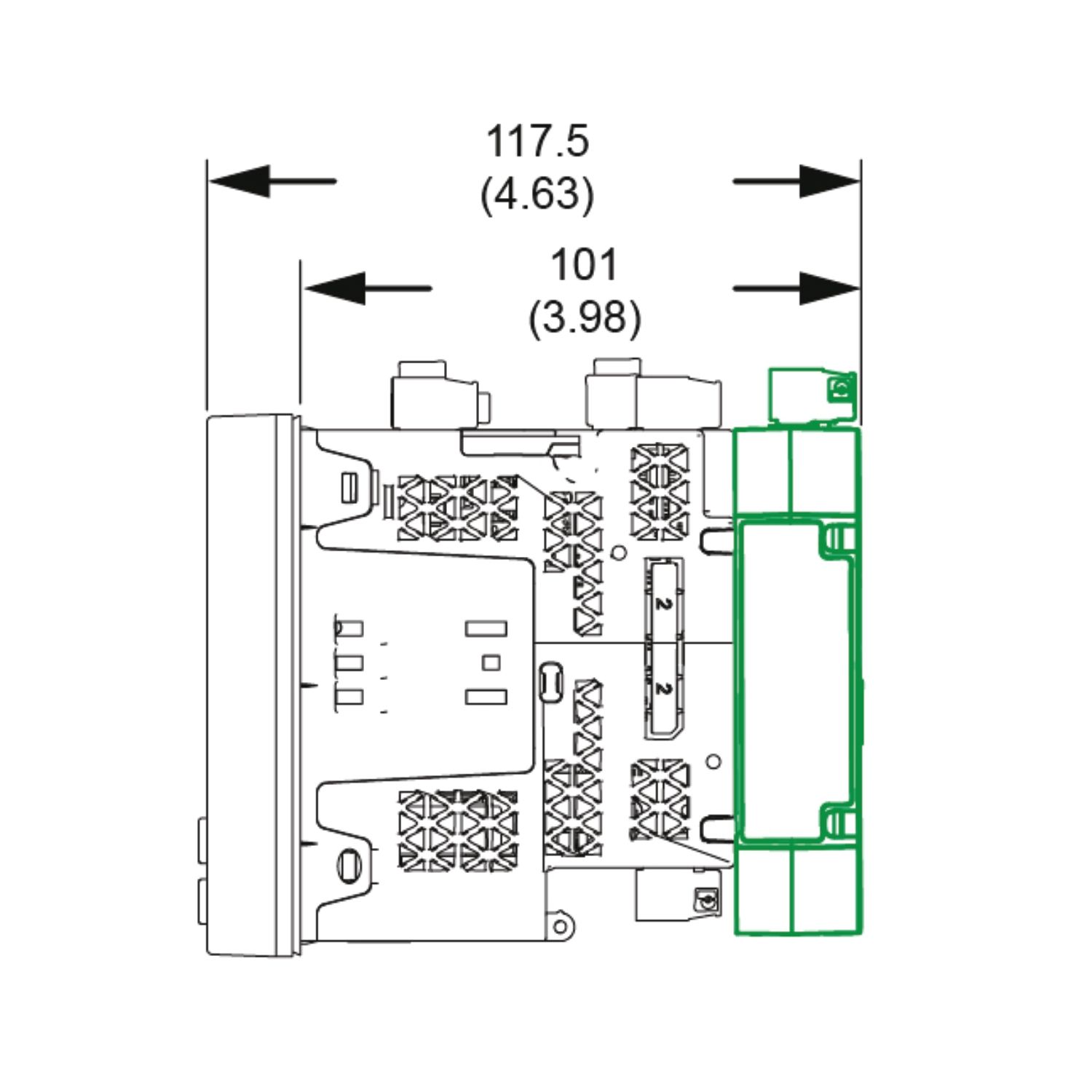

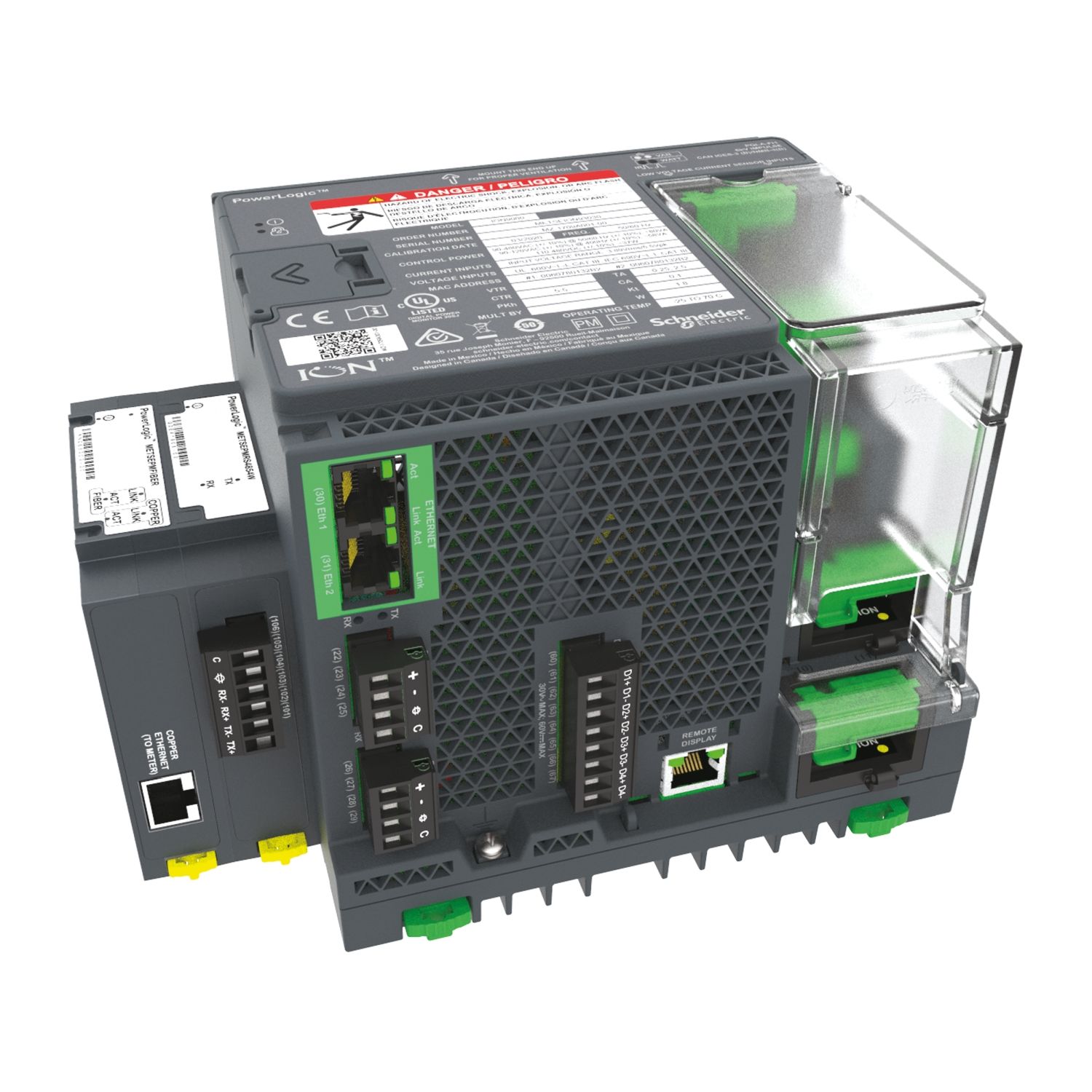

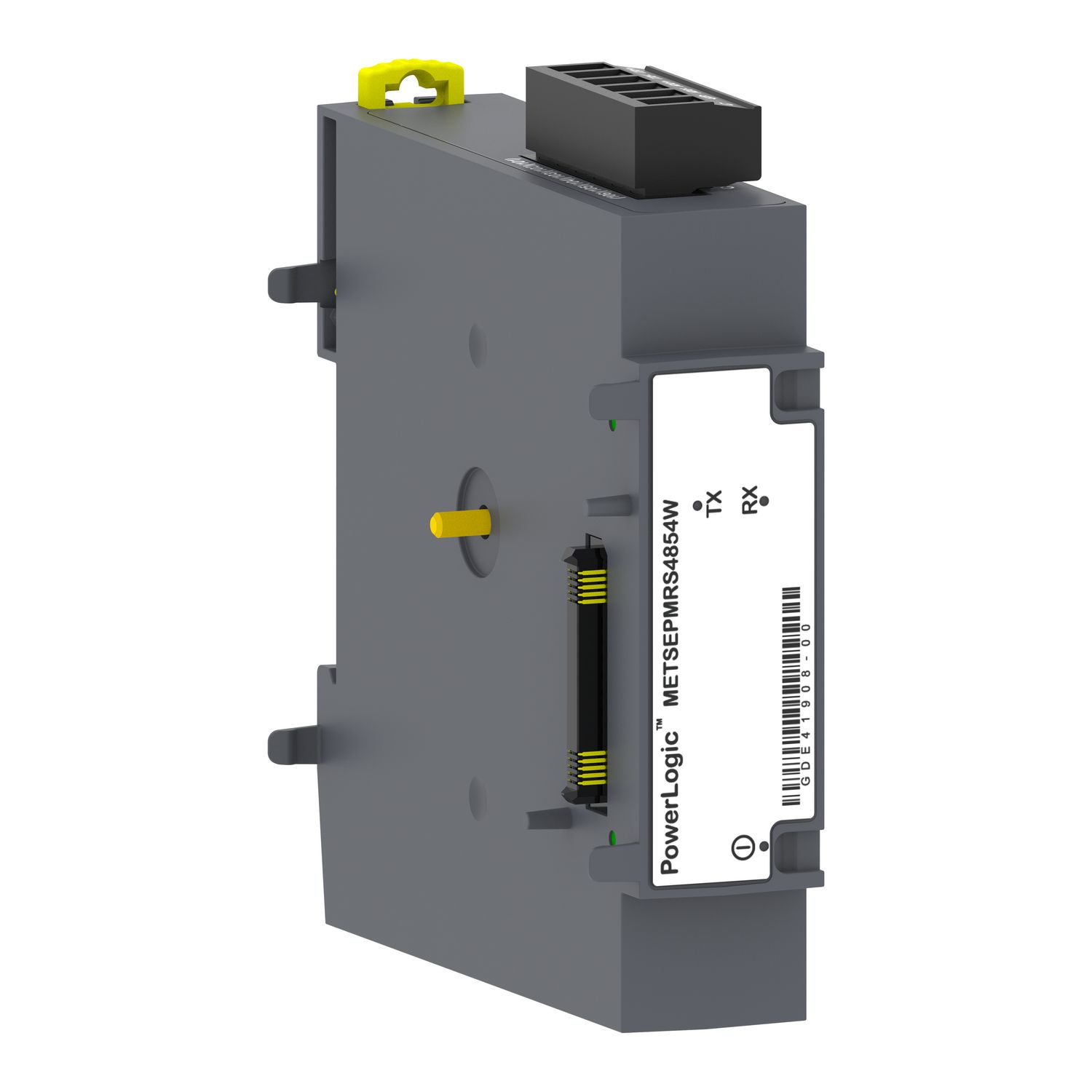

This device is an optional module for advanced meter that provide 4-wire RS-485 connectivity, converted from the onboard 2-wire RS-485 port. The 4-wire RS-485 makes the replacement and retrofitting of legacy 4-wire systems convenient by adding a 4-wire RS-485 serial port to our Advanced Meters. The module is directly powered from the base meter. This module converts onboard 2-wire port to 4-wire serial port, thus offer more options to connect device to serial networks. It supports pluggable screw terminal connector input. Once the option module is installed on the meter, the on board 2-wire serial port is disabled for the compatible meter. Only 1 4-wire RS-485 module is supported per meter. The dimensions are 22 mm in width, 100.2 mm in height 90.5 mm, 90.5mm in depth 90.5 mm and 102.33 g in weight: 92.65 g. This module hooks itself up to the meter's option bus which has a capacity of maximum one 4-wire RS-485 module plus 3 other options. Single unit in the packet. Compatible with PowerLogic Advanced Metering range (ION7400, PM8000, and ION9000).

Products specifications

Attribute nameAttribute value
Main
Device applicationoptional expansion module
Communication port protocolModbus
RangePowerLogic
Product or component typecommunication module
Range compatibilityPowerLogic PowerLogic PM8000 power meter, PowerLogic PowerLogic ION7400 power meter, PowerLogic PowerLogic ION9000 energy and power quality meter
Range of productPowerLogic
Communication port supportscrew terminal block: RS485
Complementary
Depth90.5 mm
Width22 mm
Net weight104.6 g
Height90.5 mm
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.0 cm
Package 1 Width10.0 cm
Package 1 Length13.0 cm
Package 1 Weight160.06 g
