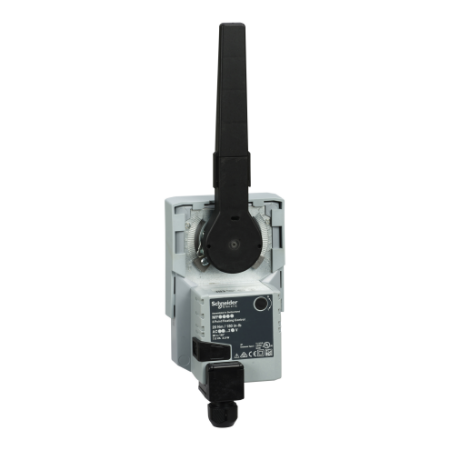

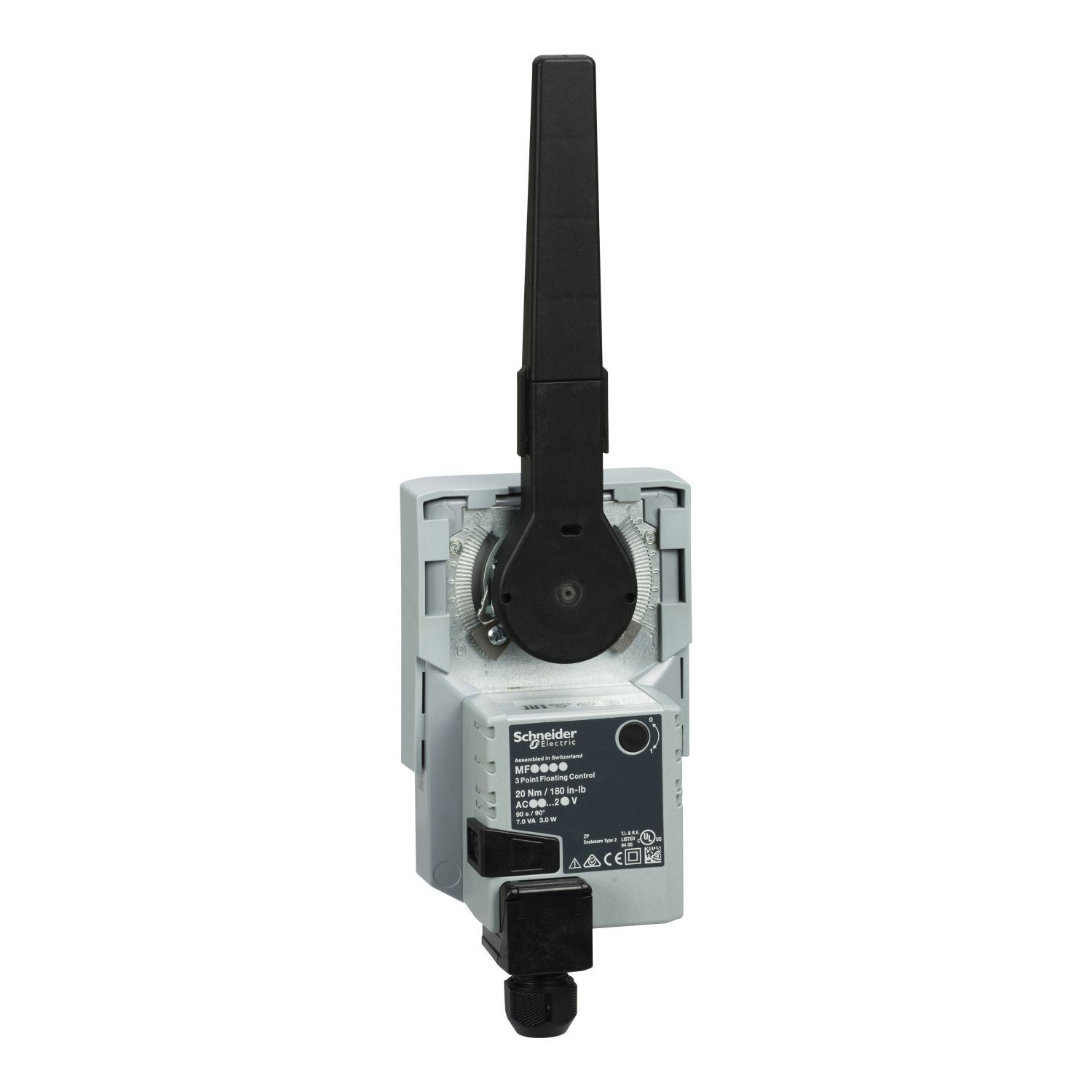

Picture of MF20 Butterly Valve Actuator, 3-Wire Floating, 24Vac/dc, 20Nm, Non-Spring Return, IP54
SKU:

MF20-24F

MF20 Butterly Valve Actuator, 3-Wire Floating, 24Vac/dc, 20Nm, Non-Spring Return, IP54

$818.03
Available for Shipping : 24-Nov-2024
MF20 Butterly Valve Actuator, 3-Wire Floating, 24Vac/dc, 20Nm, Non-Spring Return, IP54
  • Drives VF208W Valves: DN25…100
  • 24 Vac/dc Supply Voltage
  • Simple mounting, 2 hex bolts on mounting flange
  • No linkage kit or special tools required

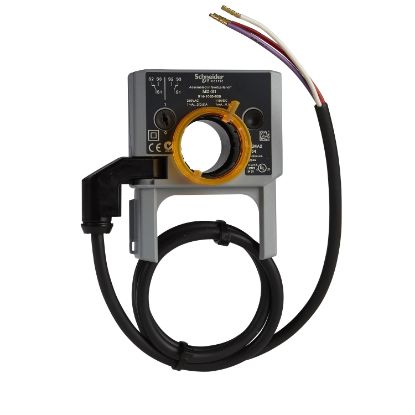

  • Optional MD-S1 or MD-S2 Aux Switch for field installation
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
The MF2 is a robust reliable actuator for the control of the VF28W butterfly valves. The actuator mount the valve without linkage kits and connect using terminal blocks to simplify and reduce installation time. Auxiliary switch is available as an accessory. Power supply: 24 Vac/Vdc. On-Off/3P Control Signal. Torque: 2 Nm. Suitable for DN25…1. Operating time: 9 sec.

Products specifications

Attribute name Attribute value
Main
Switch function 2 SPDT (optional)
Hold-in power consumption in W 0.2-0.2 W
IP degree of protection IP54
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class III
Product destination butterfly valves
Control type electrically operated
Product or component type actuator
Power consumption in VA 5.5 VA AC
Targeted region Australia., Asia Pacific., Europe
Power consumption in W 2.5 W
Actuator rotary
Ambient air temperature for operation 0-50 °C
Tightening torque 20 N.m, 177 lb.in
Power loss return stay in place
Actuator model MF20-24F T54 00
Control signal floating, 2-position (on/off)
Leads and connections terminal block
Actuator type electric
Actuator product series MF20
Position indicator Stroke indicator on bracket
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.2 cm
Package 1 Width 17.2 cm
Package 1 Length 23.7 cm
Package 1 Weight 1.048 kg
