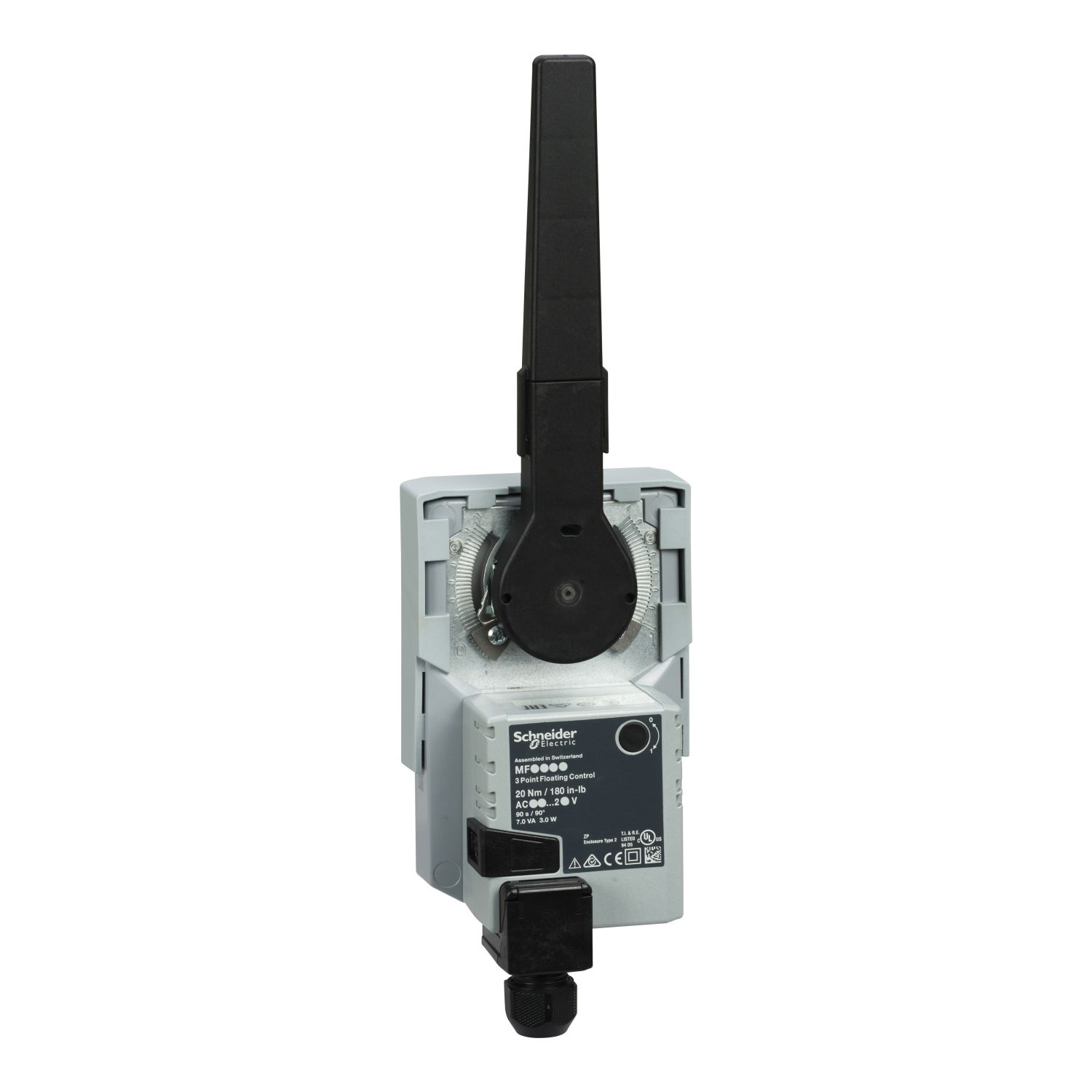

Picture of MF20 Butterfly Valve Actuator, Modulating, 2-10VDC, 24Vac/dc, 20Nm, Non-Spring Return, IP54
SKU:

MF20-24M

MF20 Butterfly Valve Actuator, Modulating, 2-10VDC, 24Vac/dc, 20Nm, Non-Spring Return, IP54

Please Contact Sales to buy this Product. click here
MF20 Butterfly Valve Actuator, Modulating, 2-10VDC, 24Vac/dc, 20Nm, Non-Spring Return, IP54
  • Drives VF208W Valves: DN25…100
  • 24 Vac/dc Supply Voltage
  • Simple mounting, 2 hex bolts on mounting flange
  • No linkage kit or special tools required
  • Optional MD-S1 or MD-S2 Aux Switch for field installation
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
Catalogue
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
The MF2 is a robust reliable actuator for the control of the VF28W butterfly valves. The actuator mount the valve without linkage kits and connect using terminal blocks to simplify and reduce installation time. Auxiliary switch is available as an accessory. Power supply: 24 Vac/Vdc. Modulating control signal: 2…1 V. Torque: 2 Nm. Suitable for DN25…1. Operating time: 9 sec.

Products specifications

Attribute nameAttribute value
Main
Switch function2 SPDT (optional)
Hold-in power consumption in W0.4-0.4 W
IP degree of protectionIP54
[Us] rated supply voltage24 V AC/DC
Electrical insulation classclass III
Product destinationbutterfly valves
Control typeelectrically operated
Product or component typeactuator
Power consumption in VA5 VA AC
Targeted regionAustralia., Asia Pacific., Europe
Power consumption in W2.5 W
Analogue input range2...10 V DC
Actuatorrotary
Ambient air temperature for operation0-50 °C
Tightening torque20 N.m, 177 lb.in
Power loss returnstay in place
Actuator modelMF20-24M T54 00
Feedback signal2...10 V DC
Control signalproportional/modulating
Leads and connectionsterminal block
Actuator typeelectric
Actuator product seriesMF20
Position indicatorStroke indicator on bracket
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11.2 cm
Package 1 Width17.2 cm
Package 1 Length23.7 cm
Package 1 Weight1.056 kg
