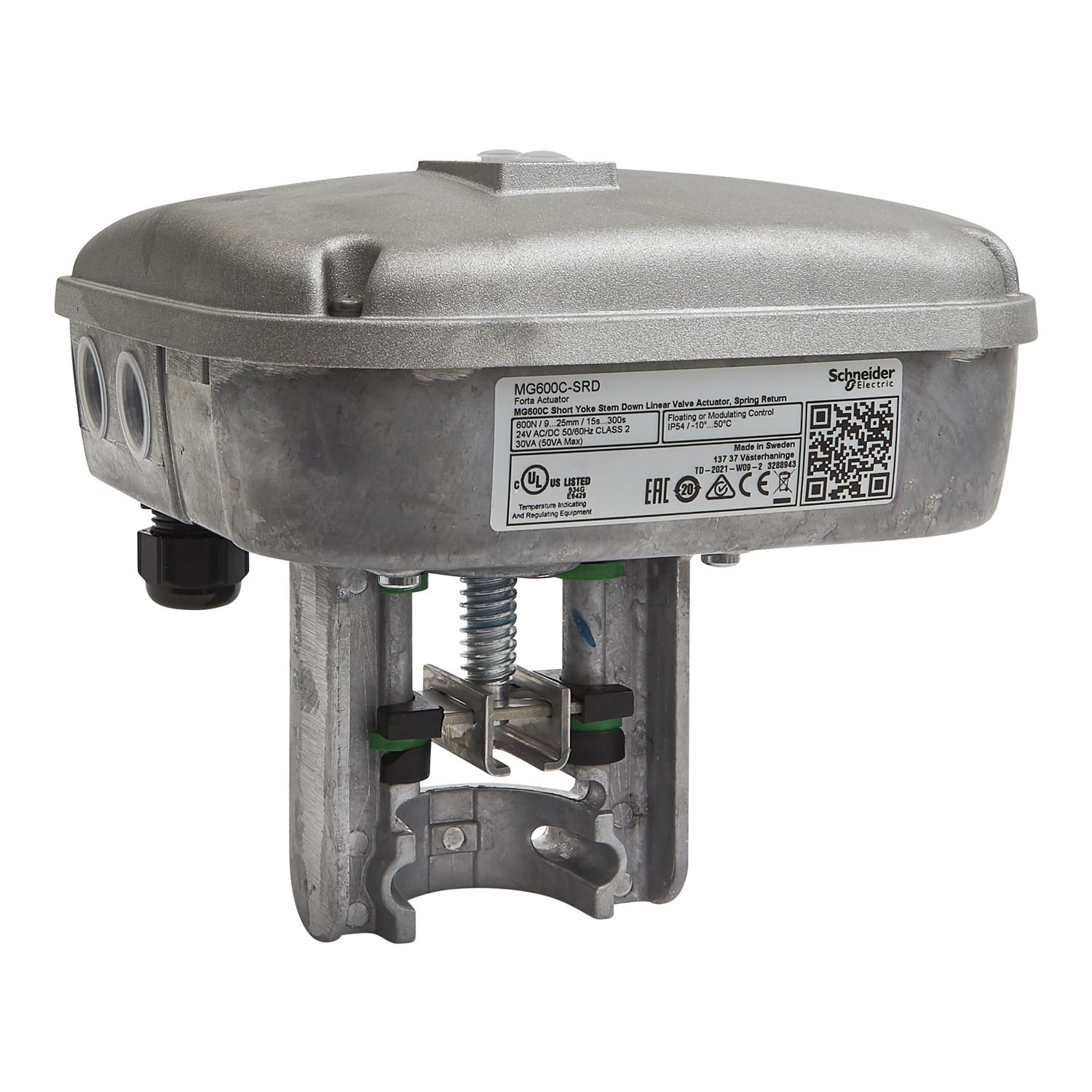

Picture of SpaceLogic MG600C-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return DOWN, 24Vac/dc, Terminal Block Connection, 600N, IP54
SKU:

MG600C-SRD

SpaceLogic MG600C-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return DOWN, 24Vac/dc, Terminal Block Connection, 600N, IP54

$1,244.76 INC GST
Available for Shipping : 28-Jun-2026
SpaceLogic MG600C-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return DOWN, 24Vac/dc, Terminal Block Connection, 600N, IP54
  • Actuator for the VG210R / VG310R Globe Valves
  • Spring Return function opens the valve upon power failure
  • Selectable input signals: 0..10 Vdc, 2..10 Vdc, 0..5 Vdc, 2-6 Vdc, 5-10 Vdc, 6-10 Vdc
  • 2-10V position feedback as standard
  • Aux end switch relays (2 x SPDT) available as an optional accessory
  • Replaceable circuit board
  • High resolution / positional accuracy
  • One touch stroke calibration
  • Flow curve adaptation from EQ to Linear
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jun-2026
Instruction sheet
Circularity Profile
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
The MG600C-SRD is a linear eletro-mechanicl actuator with spring return operation for the control of the two-way VG210R, and three way VG310R, globe Valves. The actuator utilises brushless DC motors and a high resolution control board allow a very fine fluid control. The working range and end point switches of the actuator are adjusted automatically to the stroke of the Valve. When driven electrically, the fimware of the actuator calibrates a consistent running time regardless of the Valve stroke. Spring return stem down (extend) on loss of power. Supply Voltage: 24 Vac. Force nominal: 600 N, enclosure rating: IP54. Position Feedback Output Signal: 2…10 Vdc, 0…5 Vdc. Stroke: 9-32 mm.

Products specifications

Attribute name Attribute value
Main
Force N 600 N
Switch function 2 SPDT (optional)
IP degree of protection IP54
Relative humidity 0-90 %
Ambient air temperature for storage -10-50 °C
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class II
Product destination globe valve
Control type automatic reset
Transformer rated power in VA 50 VA
Stroke length 9-32 mm
Power consumption in W 21 W
Analogue input range 0...10 V DC
Ambient air temperature for operation -10-50 °C
Hold-in power consumption in W 7-7 W
Material EPDM: O-rings, reinforced teflon: seal
Stroke running time 15 s
Motor type brushless DC motor
Duty cycle 20 %
Product or component type actuator
Targeted region Australia., Asia Pacific., Europe
Force lbf 135 lbf
Actuator linear
Actuator model MG600C-SR
Control signal proportional/modulating, floating
Conduit connection gland for 6-9 mm O/D cable, 3 x M20
Leads and connections terminal block
Actuator type electric
Actuator product range SpaceLogic
Actuator product series MG600C
Power loss return spring return
Feedback signal 2...10 V DC
Stroke auto calibration True
Position indicator Stroke indicator on bracket
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 32.0 cm
Package 1 Width 23.0 cm
Package 1 Length 22.5 cm
Package 1 Weight 3.083 kg
